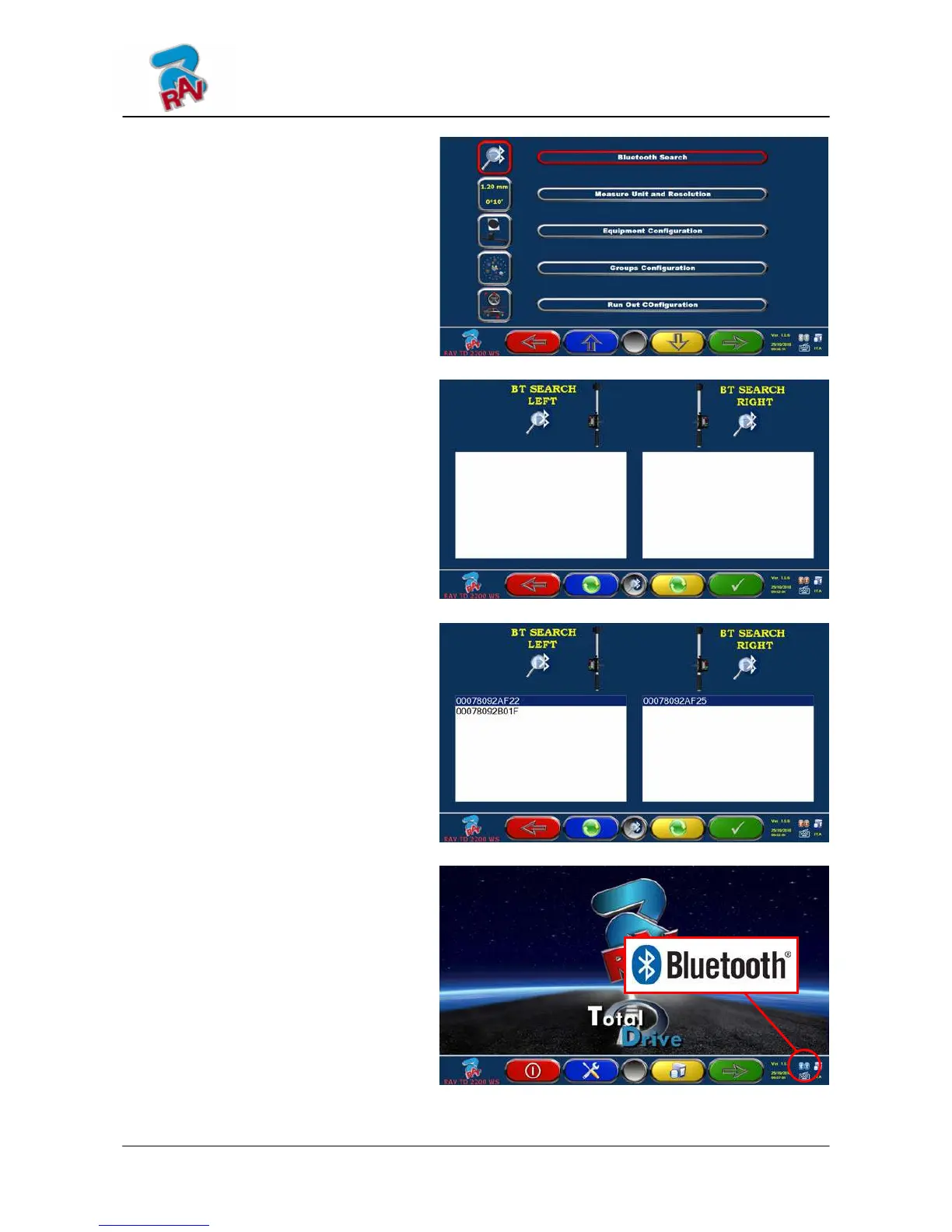

Using the keys F2/F3 select the
"Bluetooth Search" option and confirm
by key F4.
Figure 14
Turn on the front heads, then press the
key F5, the Bluetooth searching will
start.
Figure 15
On the two windows appears the MAC
address of all heads provided with
Bluetooth devices founded.
The heads set as LEFT are indicated in
the left window, the heads set as RIGHT
in the right window.
If more than 2 heads where founded,
select the correct by the F2/F3 keys
than press F4 to confirm.
Figure 16
Once the Bluetooth combining is
completed, the two Bluetooth icons
located in down at right, becomes
BLUE.
Instead, if the combining isn’t made, (or
the front heads are turned off) those
icons are GREY.
Important: To check the true connections with
the measuring heads use the communication
test (release FW) described in par. 4.1
Figure 17
