DESCRIPTION OF THE Chimney
Main parts
Intended use
The appliance in question is intended for:
operation allowed fuel forbidden setting
Radiant and convection
heating, by burning:
Fire wood in logs Any fuel other than the
permitted ones.
Residential or Commercial
Ravelli Chronos, Zeus, Ercole and Ermes wood chimneys are appliances for intermittent combustion heating, than run on re wood.
They are suitable for use as secondary heating systems or to support the main heating system.
The combustion chamber, namely the area of the chimney where the re is, is lined with refractory material that guarantees excellent
combustion, therefore clean and with low emissions. The door (3) features ceramic glass so you can see the ame, as well as control
combustion and o󰀨er greater front radiation. The combustion air keeps the glass clean.
These chimneys are designed to operate with the door closed. To load in the fuel, the door of the combustion chamber can be opened
from the opening handle (4); since the handle can get hot during operation we recommend using the protective glove supplied with
the chimney.
Chimney power depends on how much wood is loaded in and on the primary air ow rate. The primary air ow rate is adjusted by
the air control lever (2). The more primary air, the more thermal power is generated. To obtain maximum performance and prevent the
chimney from overheating, we recommend following the directions provided in the specic chapter herein.
The chimney is designed and built to work safely if:
• it is installed by qualied sta󰀨 according to the specic standards;
• it is used within the limits declared in the contract and herein;
• the operating manual procedures are followed;
• routine maintenance is carried out according to the times and methods set forth;
• extraordinary maintenance is promptly carried out when needed;
• safety devices are not removed and/or bypassed.
! IMPORTANT
This chimney must be intended for the use it was specically designed for.
1

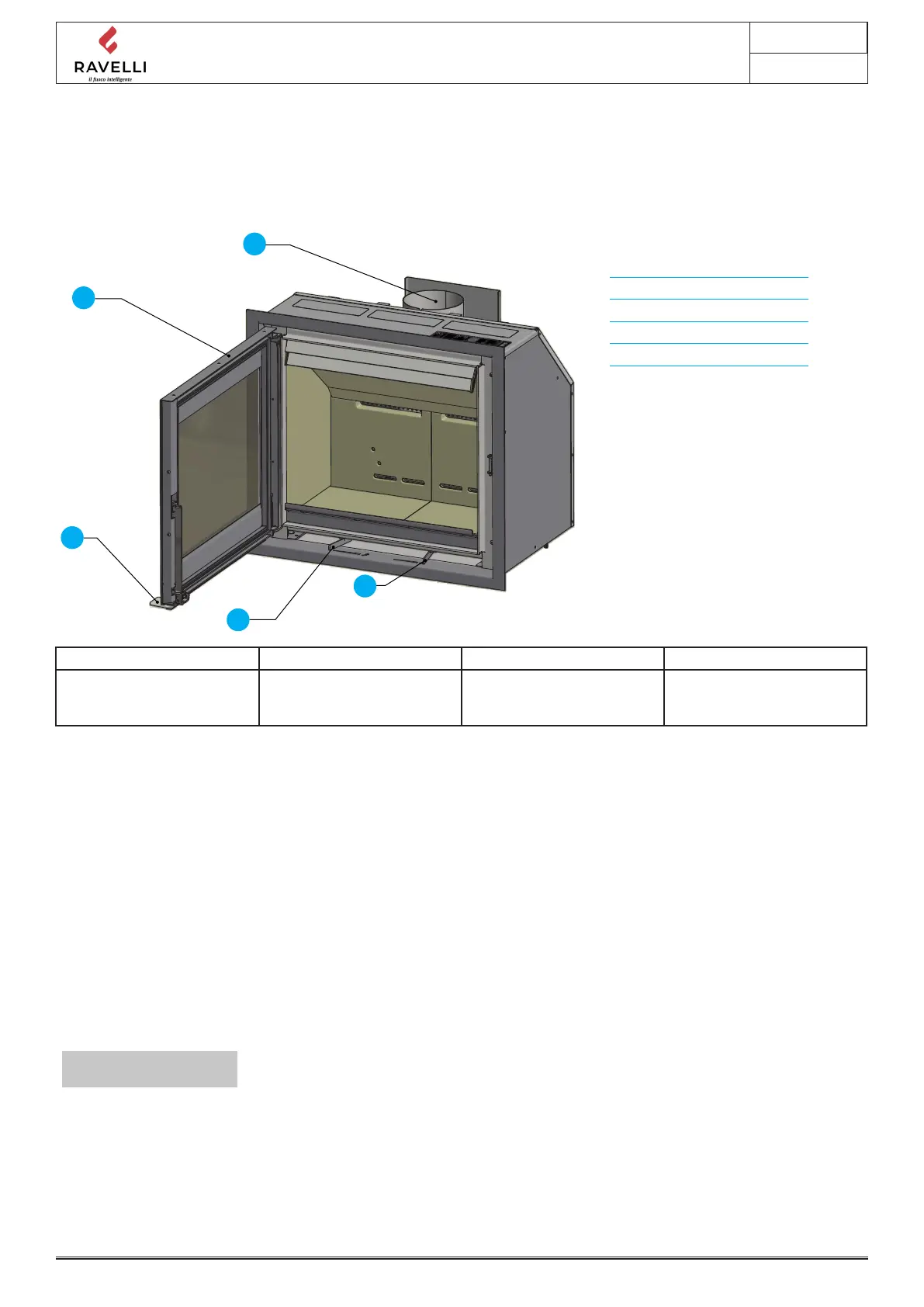

Smoke outlet
2
Primary air control lever
3
Door
4
Door opening handle
5
Secondary air control lever
