Ravelli Chronos - Cleaning

Use and maintenance manual Chronos, Zeus, Ercole e Ermes
Page 81
Rev.1 12/12/2019
Cleaning
! IMPORTANT
Perform the cleaning operations so as to guarantee correct chimney operation. The table
below lists the necessary cleaning operations required for correct chimney operation.
Maintenance of the wood insert
European, national and local regulations for chimney sweeps must be respected. It is recommended to have the insert cleaned by
the chimney sweep at the same time as cleaning the chimney.
Before you start cleaning the insert and cleaning the chimney and chimney, we recommend removing the deector plates.
(Instructions are available in this manual). All maintenance and repair work must be carried out on a cold insert.
PARTS / FREQUENCY 1 DAY 2-3 DAYS 60-90 DAYS
Combustion chamber
•
Glass
•
Cleaning the combustion chamber
Vacuum the residues present in the combustion chamber with a suitable ashtray, making sure that the ashes are completely o󰀨.
These Ravelli products have the combustion chamber lined with vermiculite tiles. Vermiculite does not require particular maintenance,
it must only be dusted with a brush if you want to remove the ash eventually deposited during combustion. Check the thermal
insulation material.
Vermiculite may have small cracks due to moisture or excessive heating/cooling. These cracks have no e󰀨ect on the e󰀨ect or duration
of the insert. However, if they begin to crumble and fall, they must be changed.
NOTE: the chimney cladding is not covered by warranty; it is not recommended to use abrasive sponges to clean the most resistant
slag. because you could scratch the surface.
Be careful when removing the smoke ba󰀪e plates from the insert.

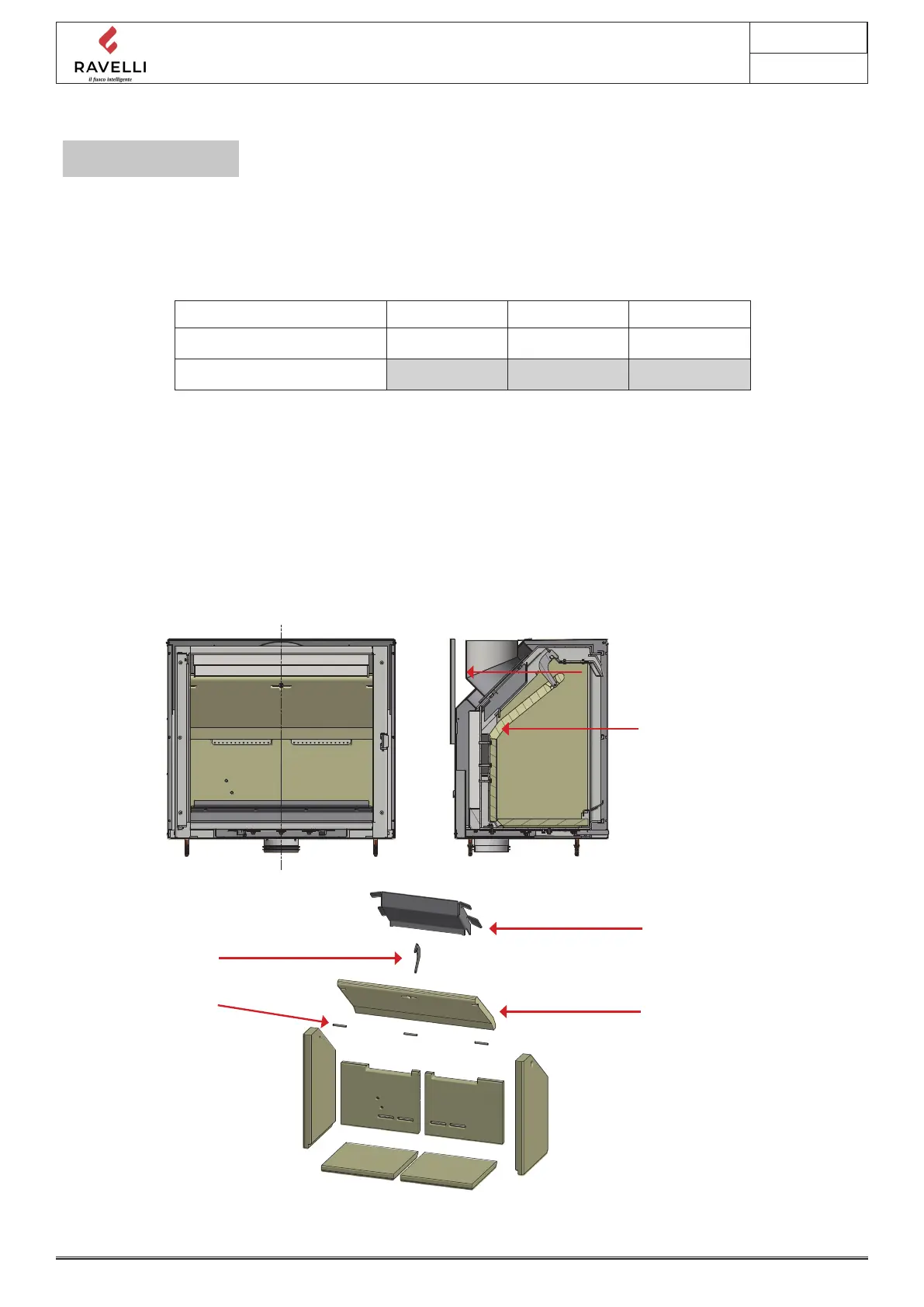

1 Lift the lower smoke deector plate, remove the pins and pull out the plate.
D
D
NAVN:
STI:
DIMENSION:
MATERIALE:
DATO:
SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg
©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 1003\91003013.idw
91003013
Snit igennem ovn
02-11-2018
KEN
Scan 1003
VÆGT:
AREAL:
N/A
N/A
Plate
deector
superior fumes
Plate
deector
lower fumes
NAVN:
STI:
DIMENSION:
MATERIALE:
DATO:
SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg
©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 1003\91003003.idw
91003003
Brændkammerforing, eksploderet
12-10-2018
KEN
Scan 1003
VÆGT:
AREAL:
N/A
N/A
Deector plate
steel fumes
Deector plate
fumes in
ceramic stone
3 pins for
the deector plate
lower fumes
Attachment for
ue gas deector plate
