Ravelli Chronos - Page 68

Use and maintenance manual Chronos, Zeus, Ercole e Ermes
Page 68
Rev.1 12/12/2019
NAVN:
STI:
DIMENSION:
MATERIALE:
DATO:
SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg
©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 1001\91001037.idw
91001037
Ekstern forbrænding bag på svøb
15-05-12
BC
Scan 1001
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE:
DATO:
SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg
©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 1001\91001038.idw
91001038
Montage forbrændingsluftkasse
15-05-12
BC
Scan 1001
VÆGT:
AREAL:
N/A
N/A
1
2

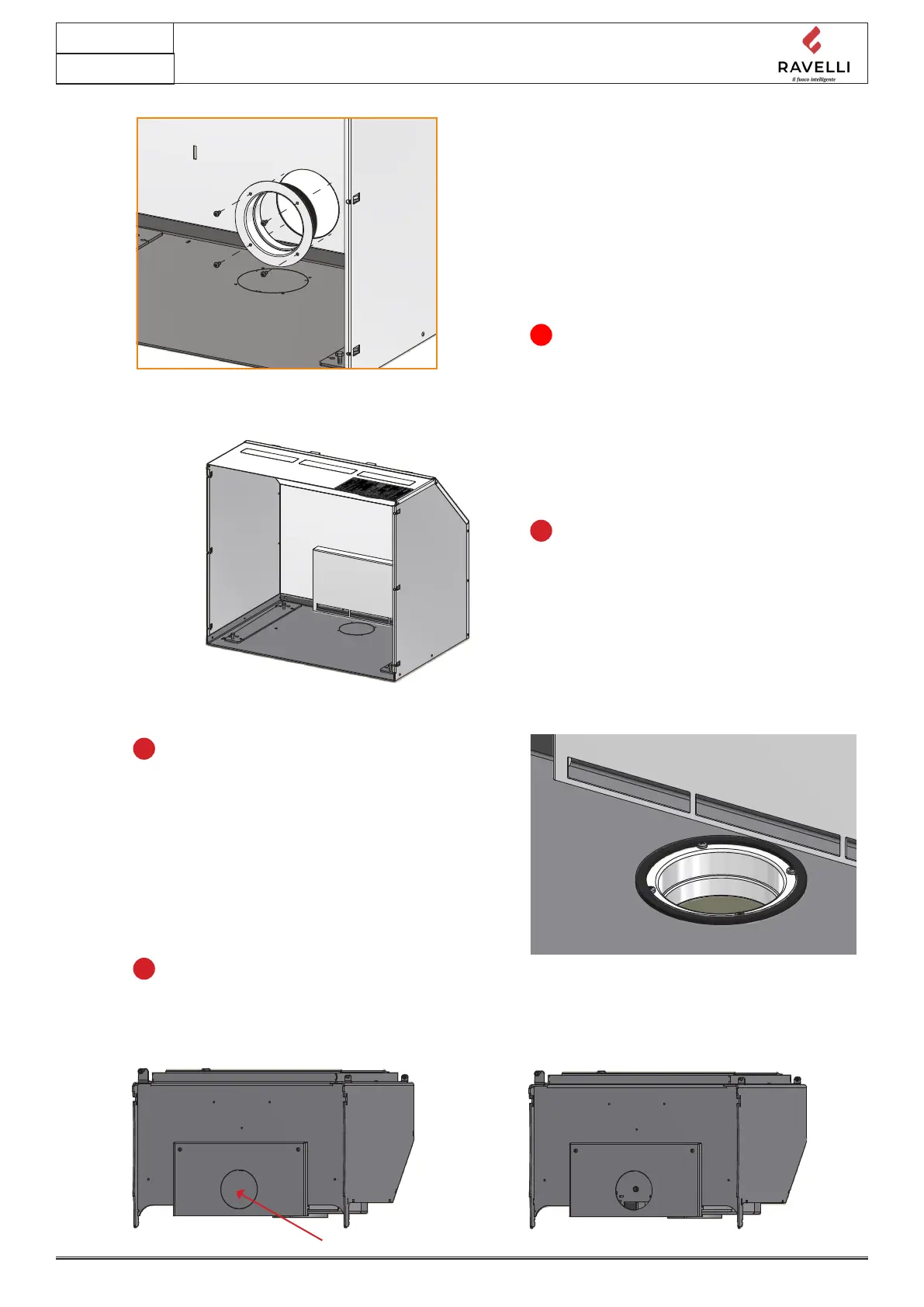

Mount the Ø100 sleeve
Hitch the combustion air box on the
rear plate of the cassette.
This box must always be mounted
when connecting the insert with
external air supply.
IMPORTANT: Only use for connection
with external air supply!
A
NAVN:
STI:
DIMENSION:
MATERIALE:
DATO:
SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg
©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 1001\91001033.idw
91001033
Pakning friskluft bund
08-05-2012
BC
Scan 1001
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE:
DATO:
SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg
©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 1001\91001034.idw
91001034
Friskluftdæksel under ovn
08-05-2012
BC
Scan 1001
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE:
DATO:
SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg
©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 1001\91001034.idw
91001034
Friskluftdæksel under ovn
08-05-2012
BC
Scan 1001
VÆGT:
AREAL:
N/A
N/A
3
4
Mount 0.5 m gasket round the
ange of the sleeve Ø 100 mm
Turn the insert over and remove the cover plate at the bottom.
Mount the insert in the cassette
Cover plate
