UPDATE SGC (RAVEN ISO STEERING CONTROLLER) | CR7 WITH SGC STEERING | UPDATE CONTROLLERS
2 UPDATE SGC (RAVEN ISO STEERING CONTROLLER)
#

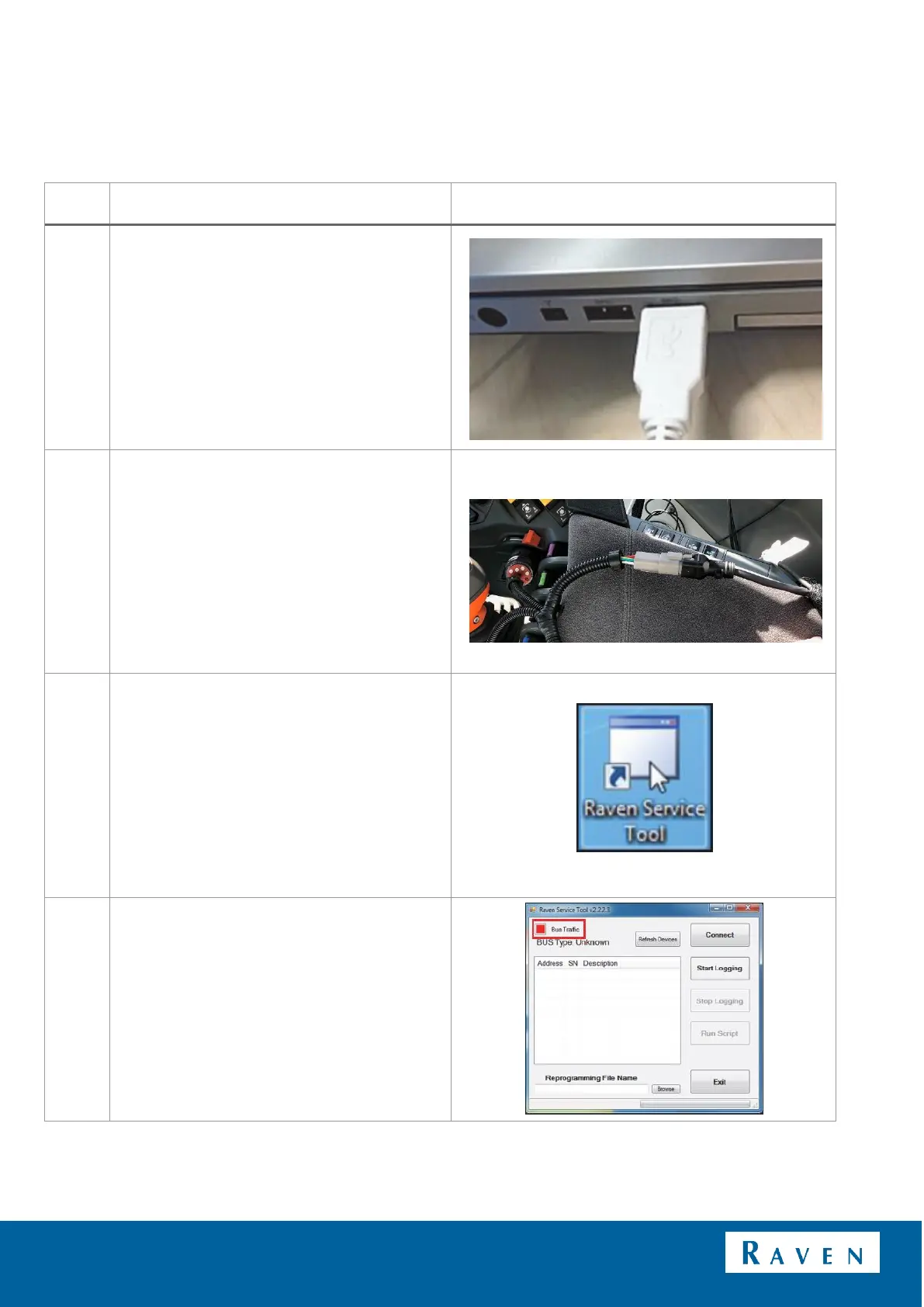

Description
01
Connect the USB to CAN module to the
laptop
02
Connect the 4-pin DT connector to the 4-pin
DT connector in the cabling (CR7 terminal
harness, 115-8000-027)
03
Open the Raven Service Tool
04
Press on ‘Connect’
