PowerGlide Autoboom Calibration and Operator’s Manual
6
8. The cartridge valve adjustment is now complete. Tighten the locking
ring.
This completes the calibration of the PowerGlide system. Continue to the System
Operation section for additional information.
Helpful Hint: On some systems, a second cartridge may be
used to allow for individual adjustment of the left and right
booms. For systems with two adjustment cartridges, repeat
step 3 through 8 for the Left and Right boom cartridge.

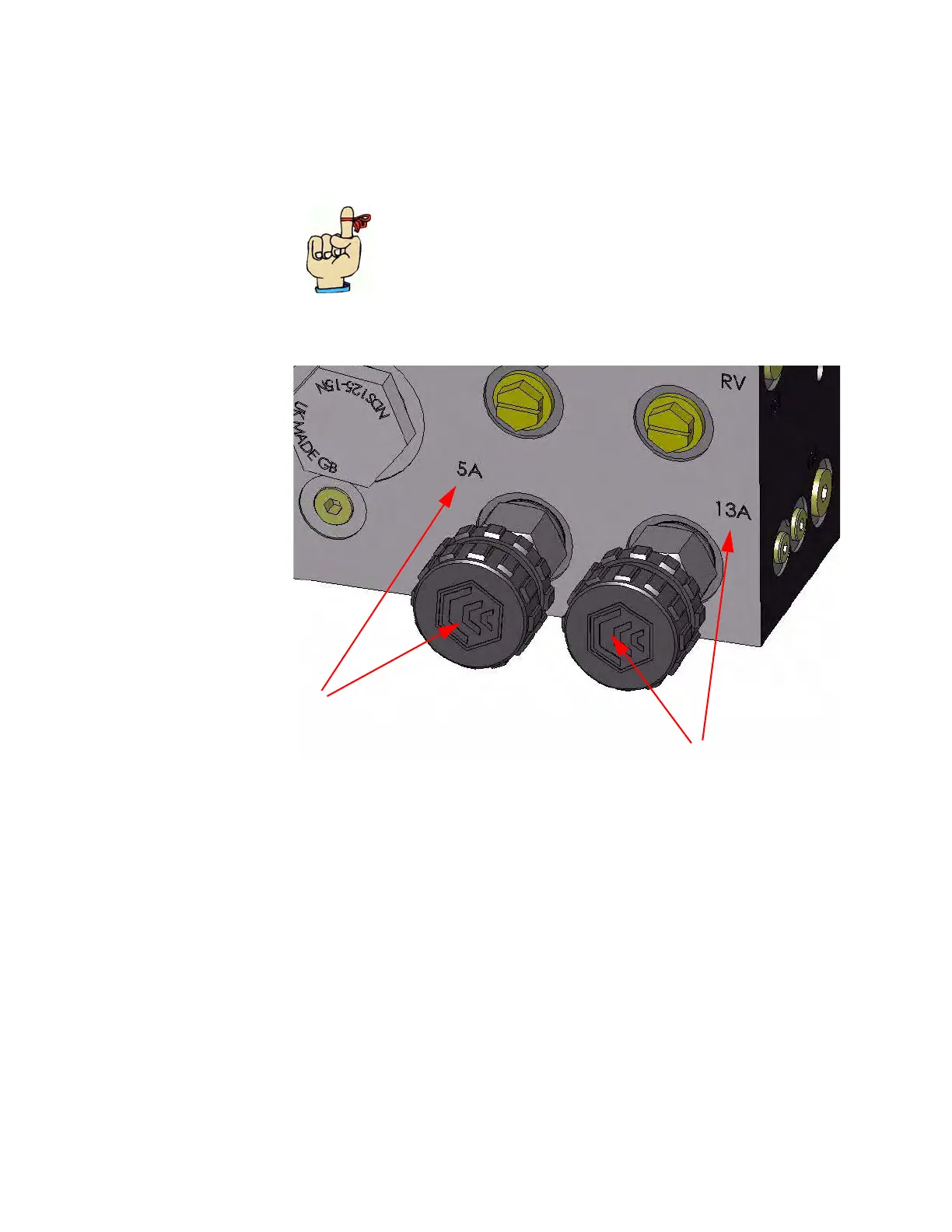

Left Adjustment
Knob (5A)
Right Adjustment
Knob (13A)
To Next Page
