Raven RCM User Manual

CHAPTER 3
16 RCM Dry Manure/Litter Setup Guide
a. Enter a Density Factor value of “60”.
NOTE: If the density value of the product is known, it is recommended to enter the known value as the
Density Factor to provide a closer starting calibration from which the dynamic calibration will begin
adjusting during operation.
b. Based upon the equipment make and model being calibrated, enter:
• Spreader Constant value.
• Pulses/Revolution value.
• Gate Height value.
NOTE: Refer to Reference Chapter 6, Machine Settings, for assistance with initial and default values on
specific make and model equipment.
During initial setup, it is recommended to enter the maximum gate height value. Spreader constant
values shown in Chapter 6, Machine Settings, are based upon max gate height opening.
During normal operation of the system, manually adjust the gate height value to the physical gate
height measurement. The system will automatically adjust the Spreader Constant based upon the
Gate Height entered.
c. Select the Next button in the lower, right corner of the page to proceed.

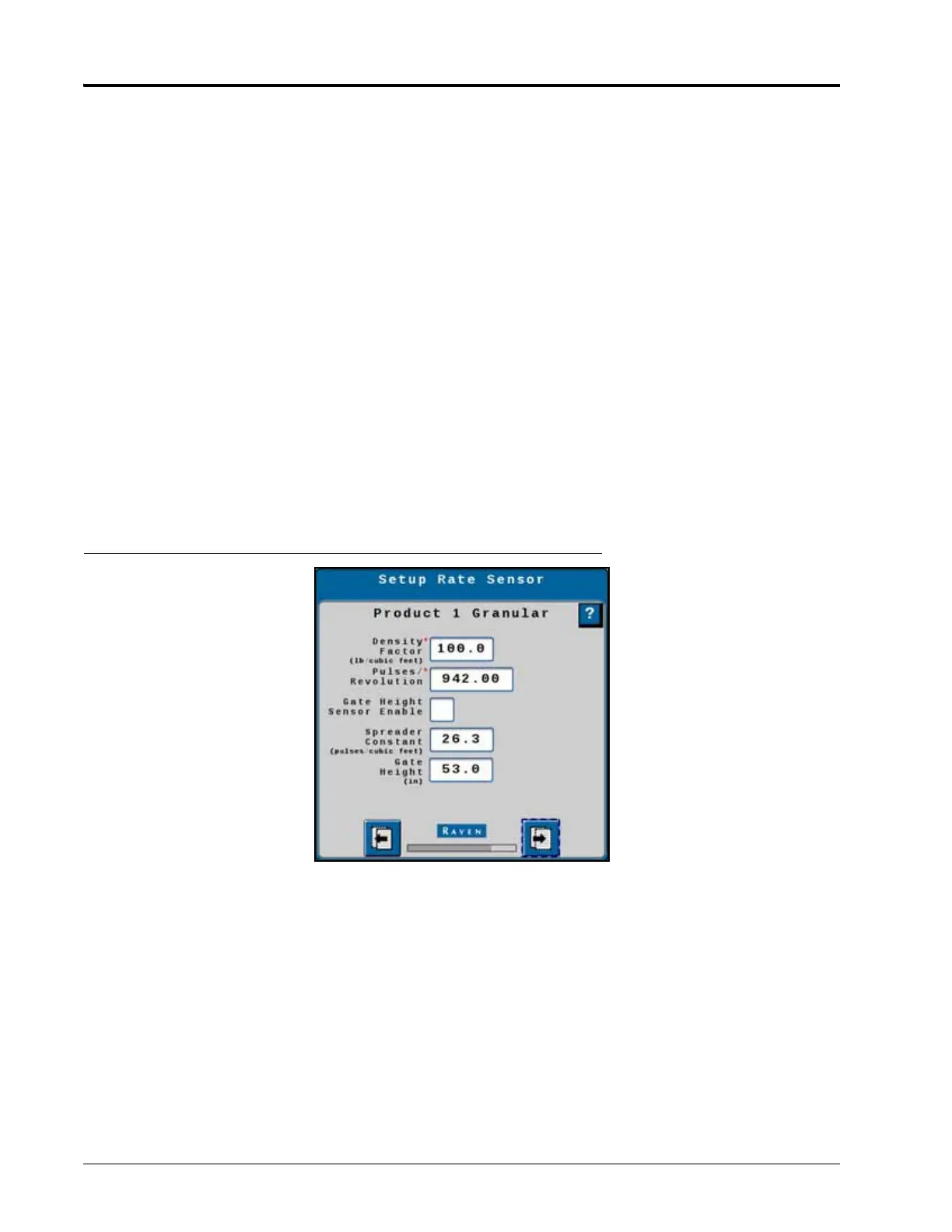

FIGURE 14. Setup Rate Sensor
