Raven SCS 5000 Series - Page 32

Chapter 4
24 SCS 4000/5000 Series™ Installation & Operation Manual

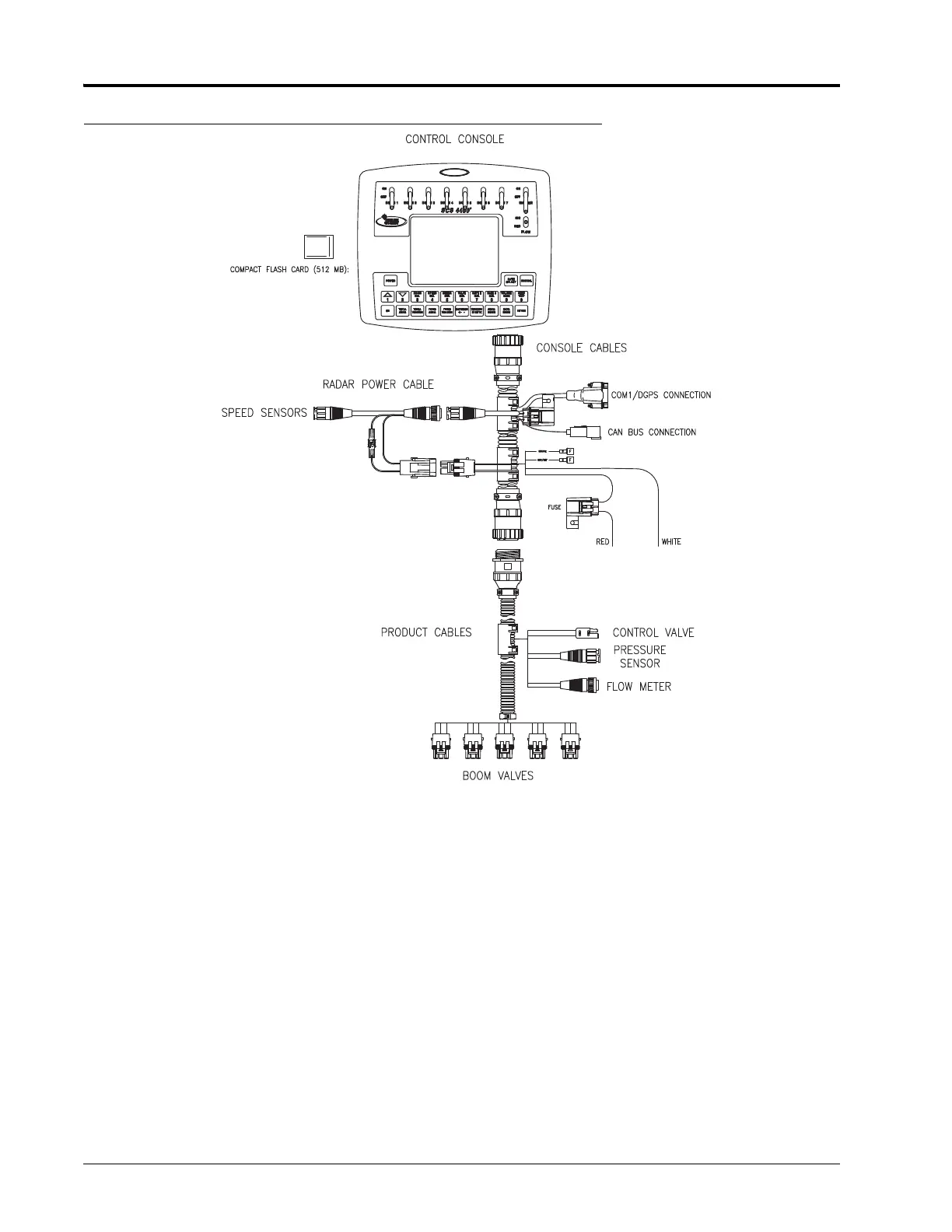

FIGURE 3. SCS 4400 Console Connections
Note: The SCS 4400 with part number 063-0172-281 features a compact flash card slot for application
data transfer to a home or office computer. The data logging feature will only be used when
connecting to an optional external console for logging or mapping applications.
