20QS/30QS Pulsed Fiber Laser User’s Guide V1
3
2. Mounting
2.1 Mounting dimensions
a) Fiber Laser module dimensions (As shown in Fig. 1).

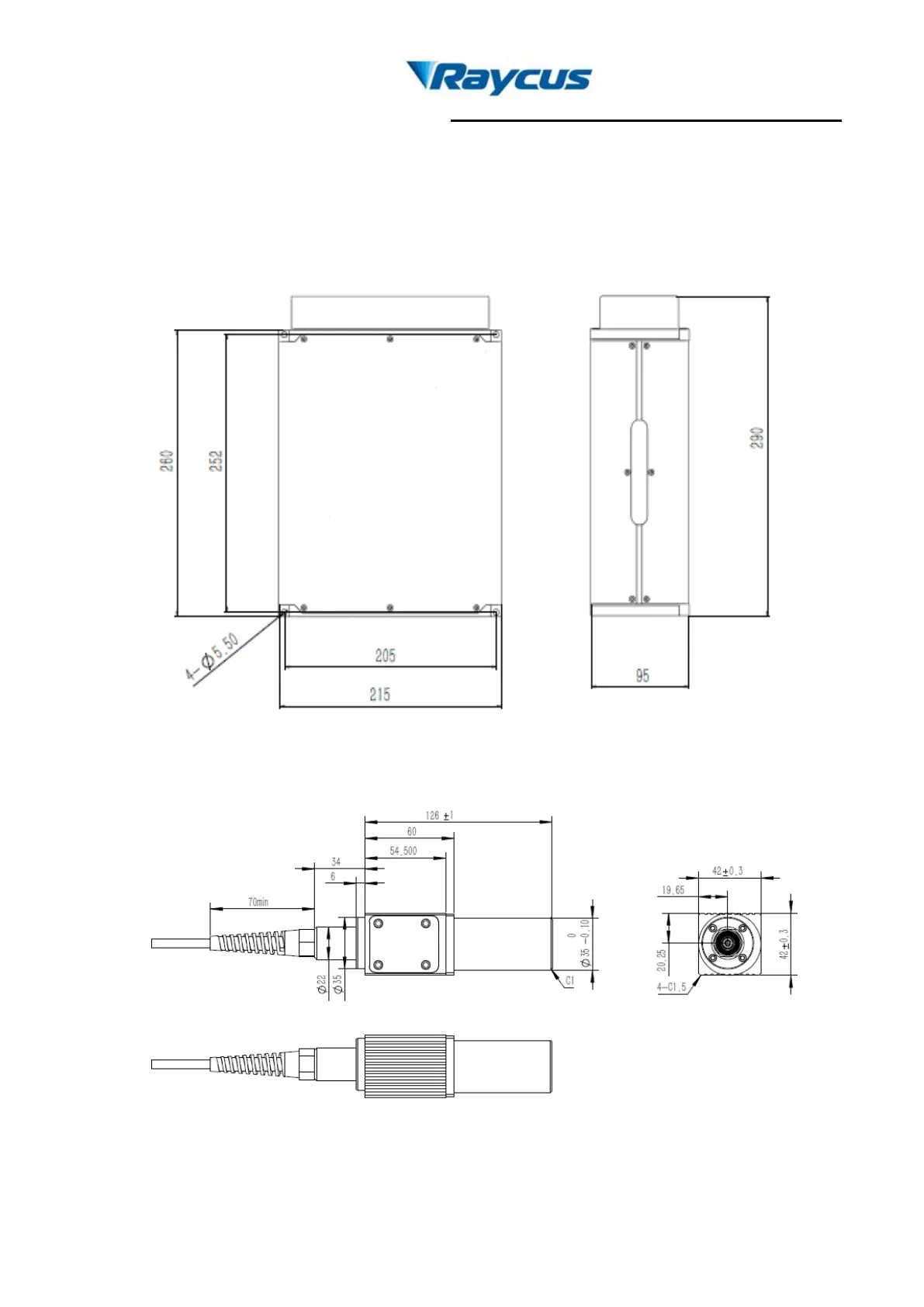

Figure 1. Dimension drawing of laser module(Unit: mm).
b) Isolated output head dimensions (As shown in Fig. 2).
Figure 2. Dimension drawing of output isolator (Unit: mm).
2.2 Method of installation
a) Fix the module stable to the bracket and keep the laser in good ventilation.
