2.4.1 Mounting Options

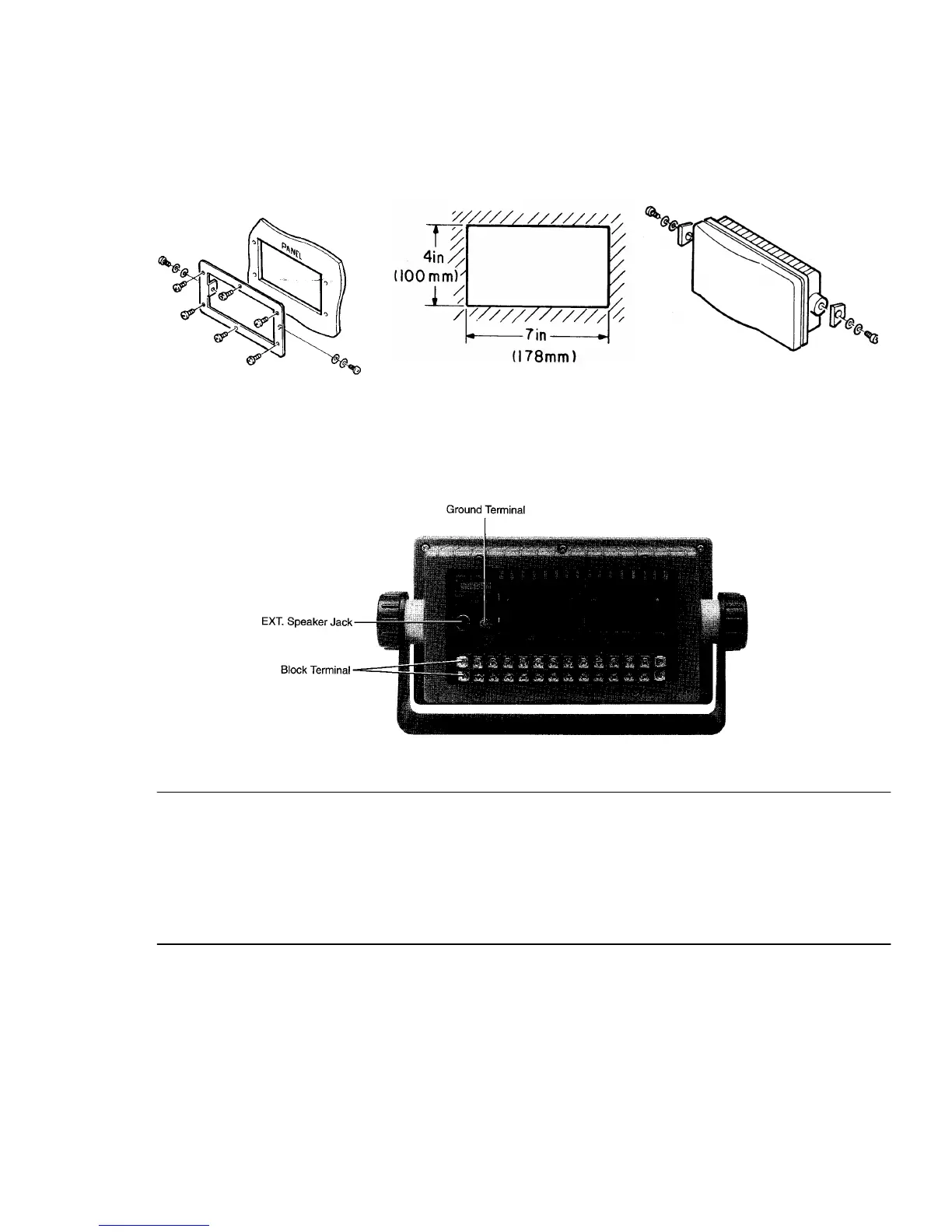

Flush-mounting your RAY430 can be performed using one of the methods shown
below.
Console Mounting Kit (Trim Ring Style-M95995) Console Mounting Kit (M95990)
Figure 2-3
2.5 ELECTRICAL CONNECTION
Figure 2-4 RAY430 Rear Panel
CAUTION
DO NOT INSTALL THIS RADIO ON VESSELS WITH POSITIVE
GROUND BATTERY SYSTEMS.
2.5.1 DC Power Connections
The RAY 430 is intended for use on vessels with 12 VDC power systems and can
operate as long as the DC supply is regulated between 10.8 and 16 VDC.
The input power connections are made at the terminal strip on the rear of the RAY 430
unit at the terminals labeled “ 13.6V” “+“ and “–“. See Figure 2-8 on page 2-9 for the
exact locations.
2—5
