8 S1000 Autopilot Installation Guide
Tapered thread
Thread for hose
connection

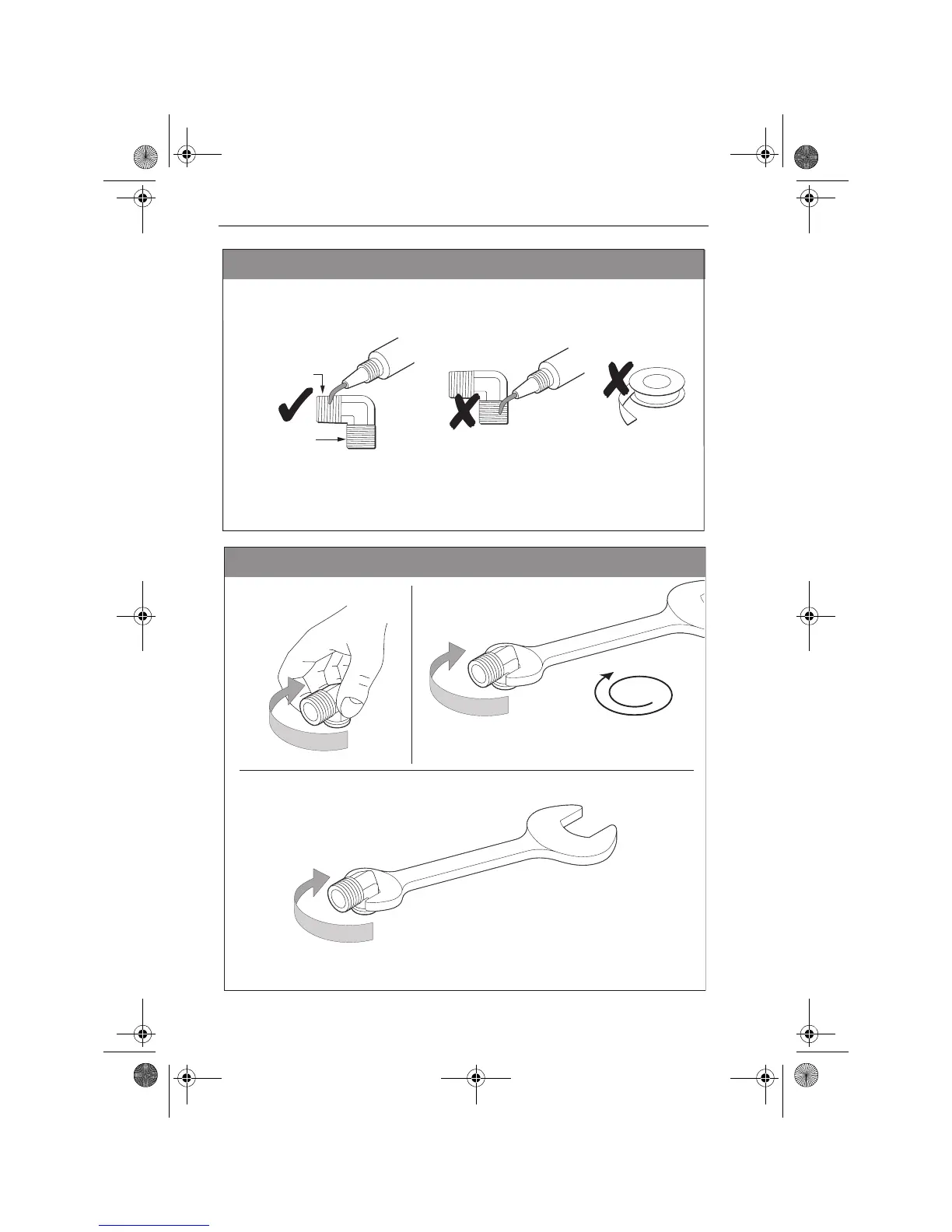

Sealing hydraulic joints
Do not apply sealant to
hose connection thread
Note: The hydraulic fittings supplied with the autopilot pump have sealant pre-
applied to the tapered threads. You only need you to apply sealant to any extra
joints you may obtain. The recommended sealant for doing this, is Loctite 542.
Do not use sealing tape on any part of a hydraulic system, as this can disintegrate
and the resulting particles can cause blockages in the hydraulic system.
CAUTION:
D7545-1
2.
3.
1.5 turns
D7546-1
From hand tight, use a wrench to tighten the joint a
further 1.5 turns. This should make it leakproof.
To change the orientation of the joint to align it with the
hose, further tighten the joint, to a maximum of one
further turn, until the joint is facing the required
direction.
1.
Hand tighten
CAUTION:
Do not exceed 13 ft/lbs
(17.6 Nm) torque.
CAUTION:
Do not exceed 13 ft/lbs (17.6 Nm) torque. DO NOT
EXCEED 2.5 TURNS in total, from hand tight.
Installing tapered thread fittings
87040_1.book Page 8 Wednesday, December 22, 2004 12:32 PM
