S1000 Autopilot Installation Guide 5
Planning
In order to make the installation as trouble free as possible, we strongly recommend you
spend adequate time planning the best locations for your autopilot components. This is
particularly important when considering the position of the autopilot pump, as hydraulic
hoses are supplied in fixed lengths, so there are some limitations on the positioning of the
autopilot pump with respect to the boat’s helm pump.
If you have internet access, please view the installation video on line at www.raymarine.com.
Before you disturb your hydraulic steering system, we strongly recommend that you consult
the manufacturer and read the steering system manuals.
5˚ 5˚
D7552-1
5˚ 5˚ 5˚ 5˚ 5˚ 5˚
At least 3 ft (1 meter)

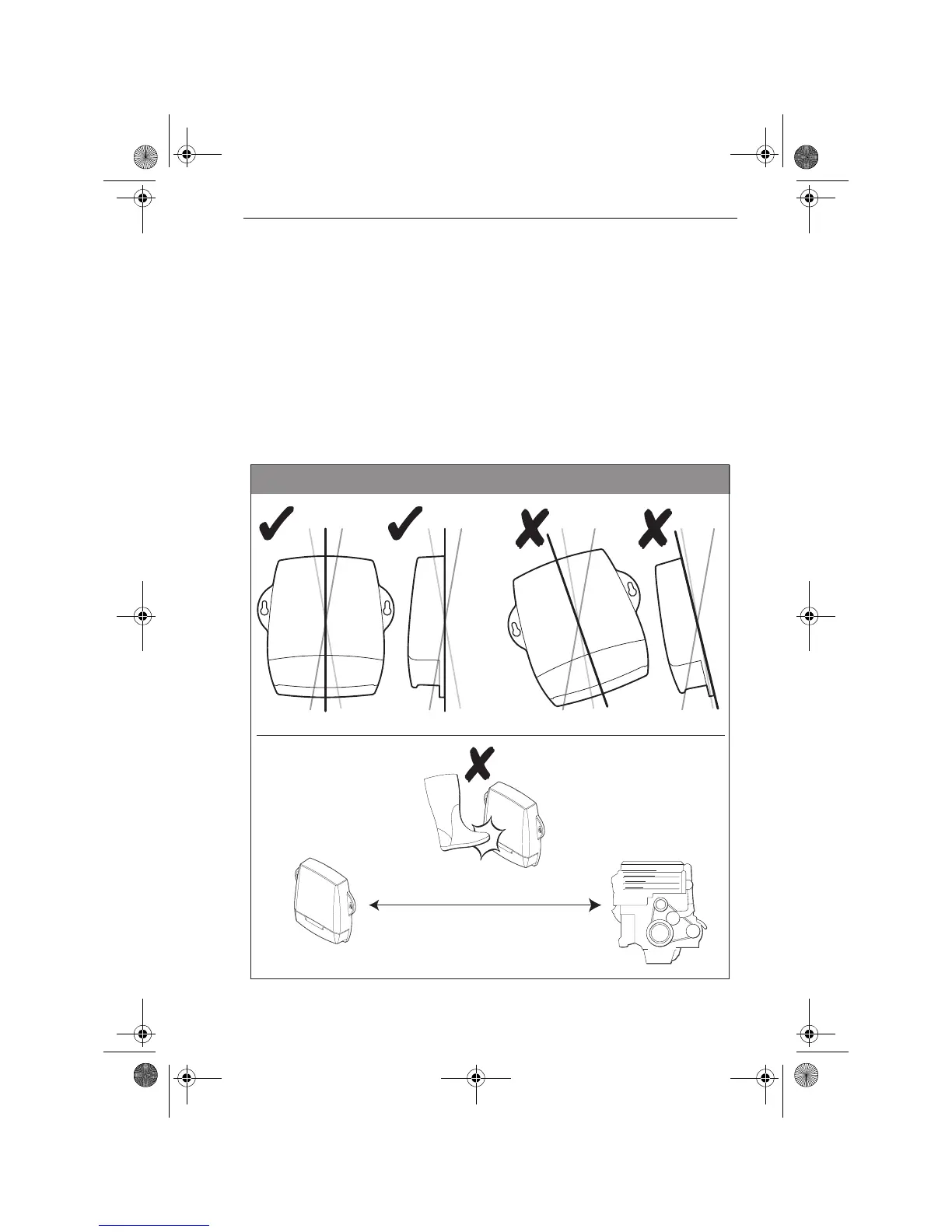

Locating the course computer
