Raymarine S1000 Installation Guide

6 S1000 Autopilot Installation Guide
R
e
s
e
v
i
r
r
o
B
l
e
e
w
S
c
r
e
d
Por
t
Po
r
t
R
e
s
e
v
i
r
r
o
B
l
e
e
w
S
c
r
e
d
Por
t
Po
r
t
D7350-1
Autopilot pump to be lower
than helm pump
No sharp bends, kinks or
chafing of tube

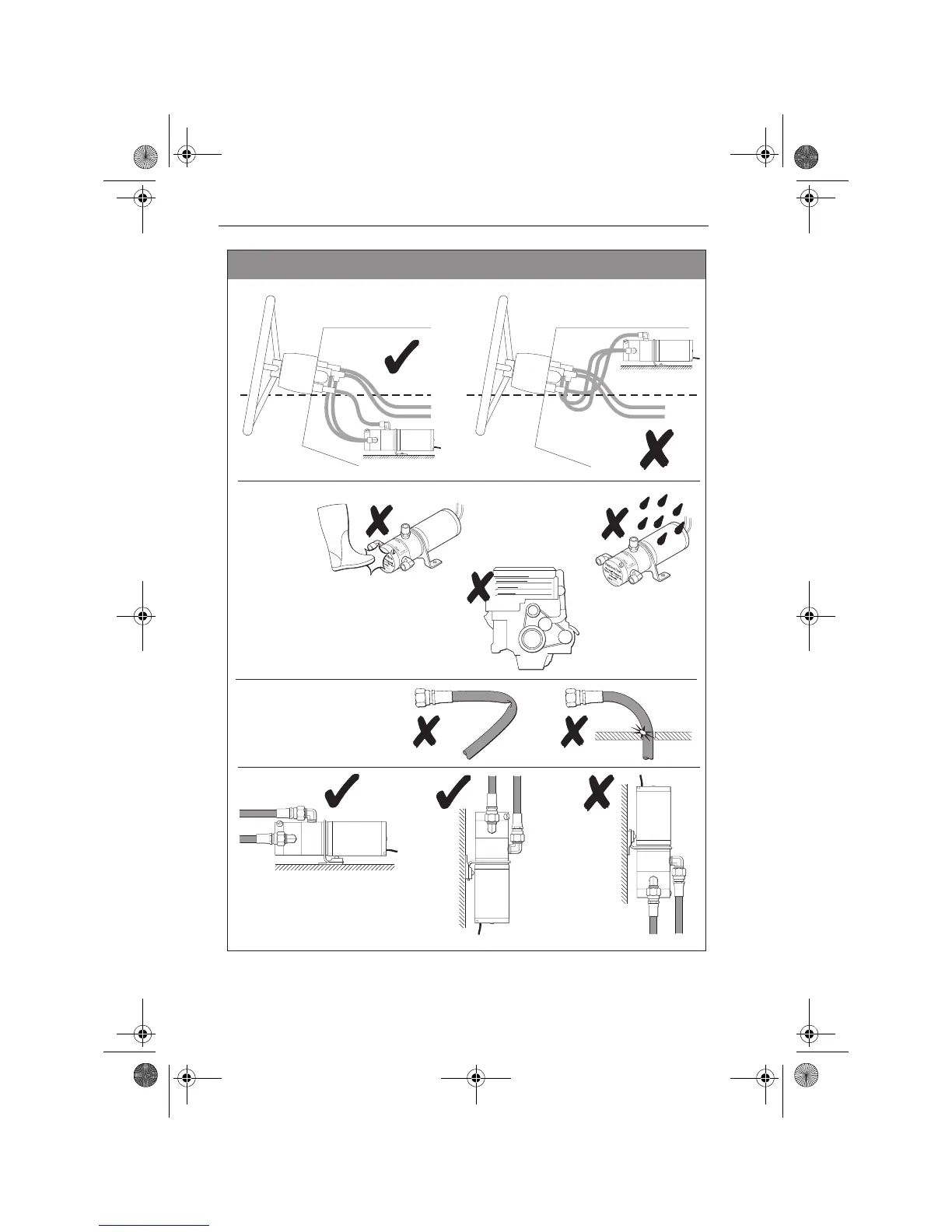

Locating autopilot pump
Provide protection
from physical
damage.
Mount pump location either
horizontally or with connector end up.
Do not mount pump with connector
end down.
Install in a dry location.
Do not fit in engine compartments, near
fuel tanks or in any other area where fuel
vapor is likely.
