Raymarine S1000 Installation Guide

10 S1000 Autopilot Installation Guide
0
D7483-1

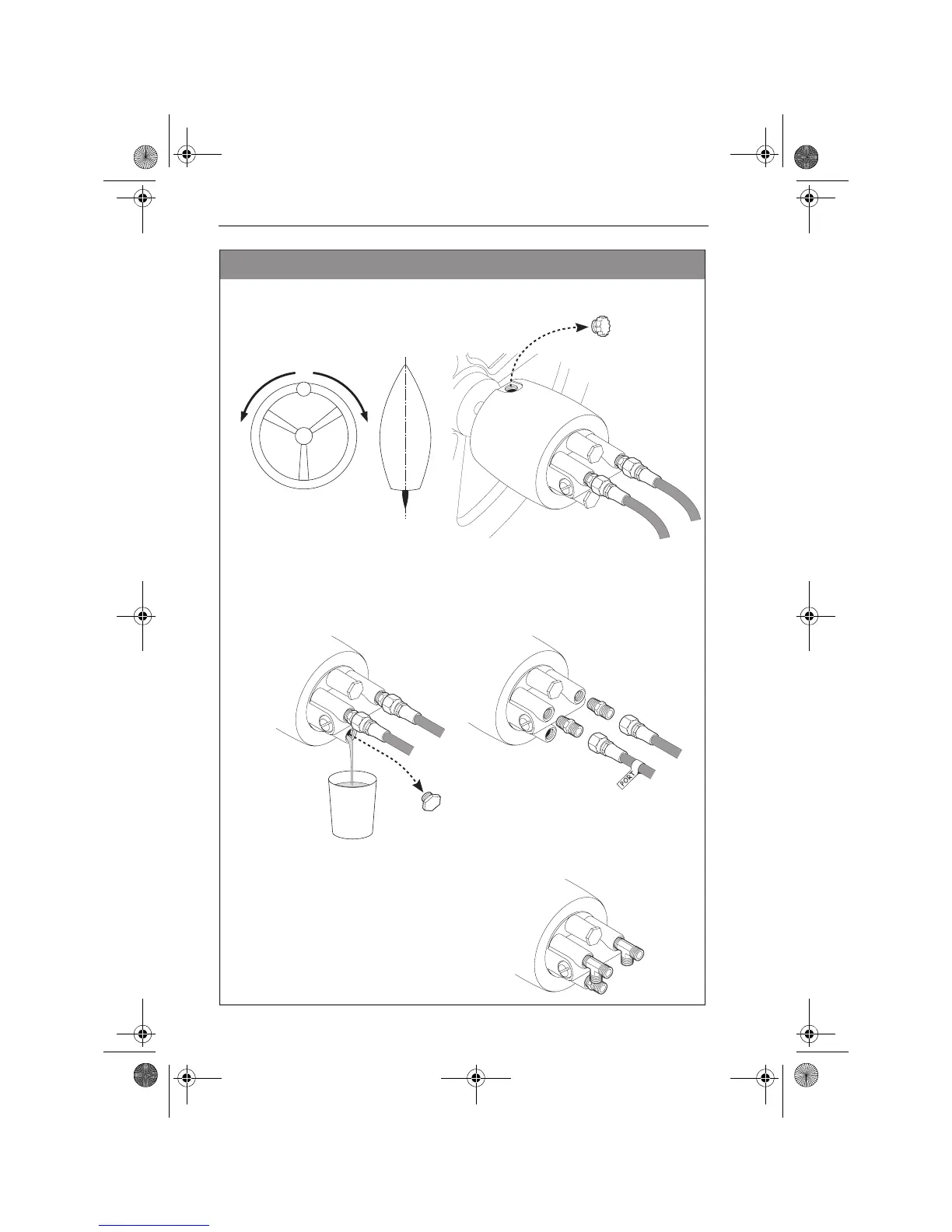

5.
Remove & retain the plug from the
helm pump lower port and drain the
fluid into one of the cups provided.
Discard the drained fluid in
accordance with local regulations.
6.
Label the port ram hose to aid future
reassembly, then disconnect both ram
hoses & straight connectors from the
helm pump.
Remove & retain the helm pump
breather cap.
4.
Set steering to dead ahead
and do not move it until
instructed.
3.
7.
Using the Fitting hydraulic joints procedure, fit 'T'
connectors to the helm pump port (P) and
starboard (S) connectors, and a straight connector
to the helm pump lower connector.
Connecting the autopilot pump, sheet 2
D7483-1
5.
Remove & retain the plug from the
helm pump lower port and drain the
fluid into one of the cups provided.
Discard the drained fluid in
accordance with local regulations.
6.
Label the port ram hose to aid future
reassembly, then disconnect both ram
hoses & straight connectors from the
helm pump.
Remove & retain the helm pump
breather cap.
4.
Set steering to dead ahead
and do not move it until
instructed.
3.
7.
Using the Fitting hydraulic joints procedure, fit 'T'
connectors to the helm pump port (P) and
starboard (S) connectors, and a straight connector
to the helm pump lower connector.
Connecting the autopilot pump, sheet 2
87040_1.book Page 10 Wednesday, December 22, 2004 12:32 PM
