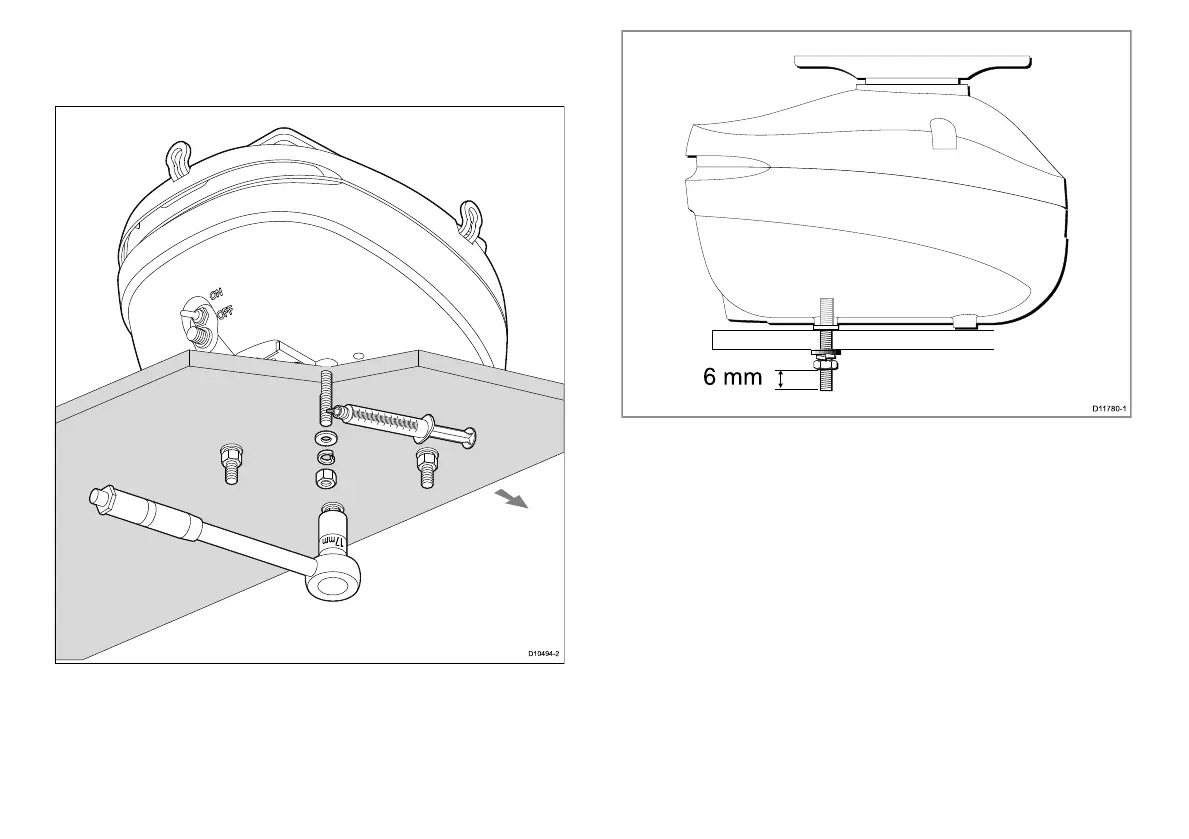

12.Referringtothefollowingillustration,usethe4nutsand
associatedwasherstosecurethepedestaltotheplatform.
Tighteneachnutto30Nm(22.1lbft)torque.
D10494-2
13.Ensureall4setsofnutsandwashersareusedtosecurethe
pedestaltothemountingplatform.Thereshouldbenomorethan
6mmofexcessstudbelowthenut.Cut-offanyexcessstud.
D11780-1
6 mm
14.Retainthe4sparenuts(whichmayhavebeenusedasa
temporarymeasureduringStep9).
Removingtheradarpedestalliftingeyes
Onthepedestalunit:
1.Loosentherstliftingeyesecuringbolt,enoughtoremovethe
liftingeye.
2.Oncetheliftingeyeisremoved,re-tightentheboltto7Nm(5.2
lbft)torque.
3.RepeatSteps1to2toremoveallliftingeyes.
Securingtheradarantennatothepedestal
Beforeattachingtheantennatothepedestalunit,ensurethat:
