10
4 Disconnect Mechanism
WARNING
To reduce risk of SEVERE INJURY or DEATH to persons:
• Do not stand directly under door arm when pulling the disconnect chain.
• Do not attempt to disengage the door while the operator is running.
• Do not attempt to manually force open or close a malfunctioning door.
• The door should ideally be closed when activating the disconnect mechanism.
The operator is equipped with a trolley disconnect mechanism to operate the door manually if necessary.
To manually operate the door:
1. Pull disconnect chain downwards, refer to Figure 4.
2. Disconnect trolley arm from carriage, refer to Figure 4.
3. Operate the door manually (by hand).
To return to electrical operation mode:
1. Pull on disconnect chain while reinserting the trolley arm onto the carriage.

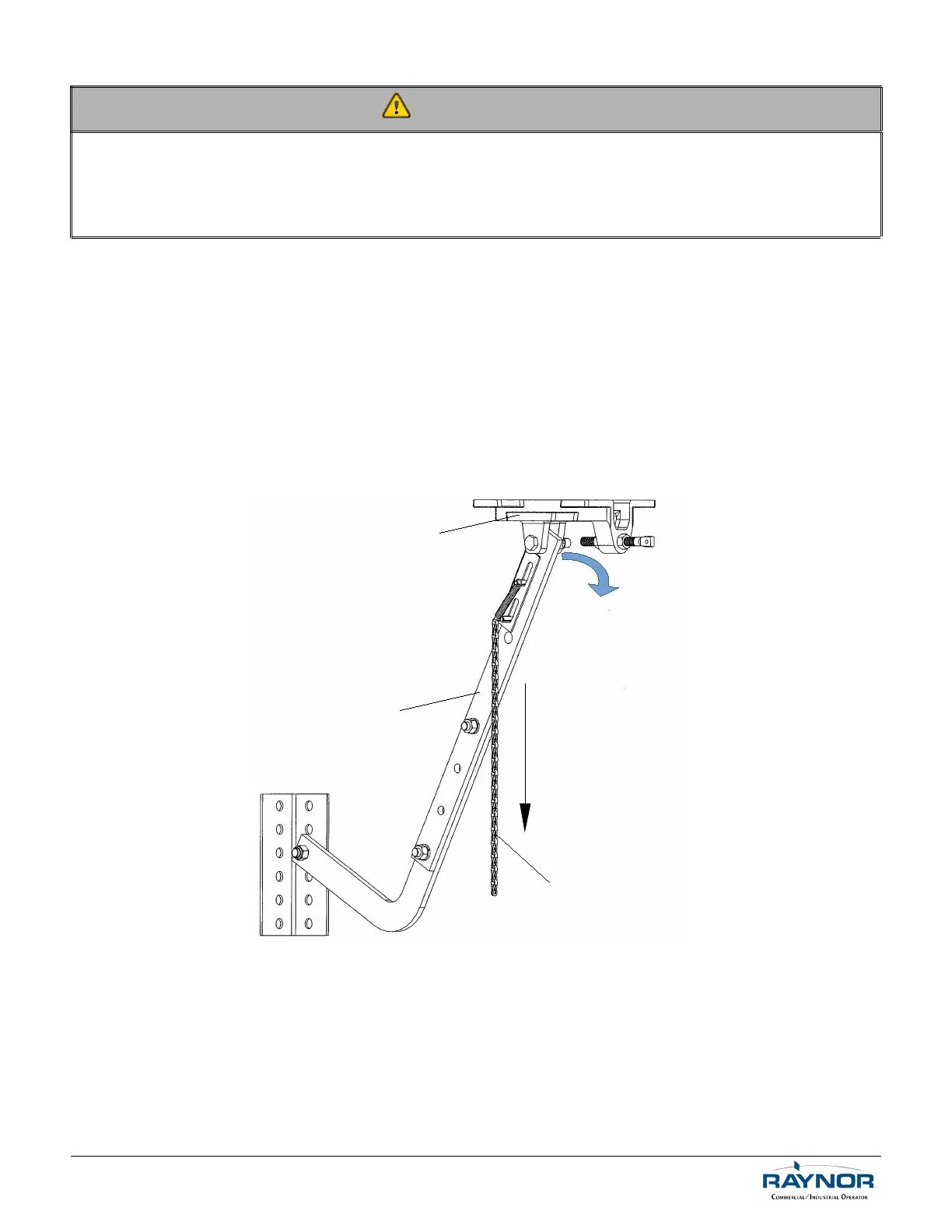

Figure 4 - Disconnect Trolley Arm From Carriage
For technical support, please call 1-800-4-Raynor (1-800-472-9667) or visit www.raynor.com
Disconnect Chain
Carriage
Trolley arm
