Raynor ControlHoist CMT User Manual

4
1 General Specifications and Dimensions
SUPPLY VOLTAGE...............................115 VAC single-phase
CONTROL VOLTAGE............................24 VAC class 2 transformer, 2 amp fuse type ACG
MOTOR.................................................Intermittent duty 1/2 horsepower
DOOR SPEED......................................11”/second
NET WEIGHT (Operator only)...............60 Lbs (27 Kg)
STANDARD WIRING TYPE..................C2 (momentary contact to open/stop and constant-pressure-to-close)
APPLICATION.......................................Medium duty for standard lift sectional doors
DUTY.....................................................14 cycles/hour or 50 cycles/day maximum
Table 1 - Operator Selection Guide
Maximum Area in Square Feet (General Guidelines)
HP
Sectional Doors
TM175
TM200
TM300
S16 S20 S24 AV175
AV200
AV300
½
160 110 125 150 196 165
For technical support, please call 1-800-4-Raynor (1-800-472-9667) or visit www.raynor.com

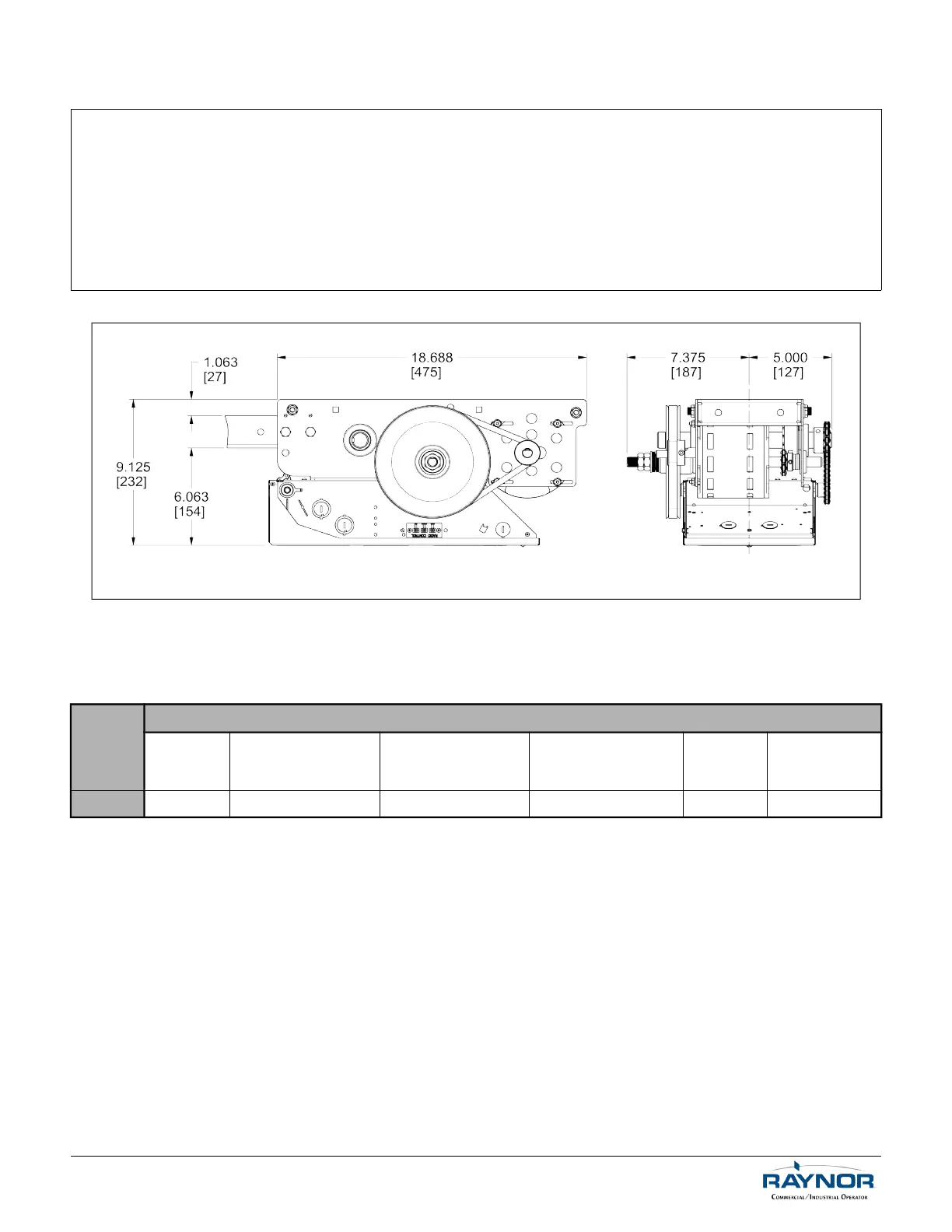

Figure 1 - CMT Dimensions
