Installation

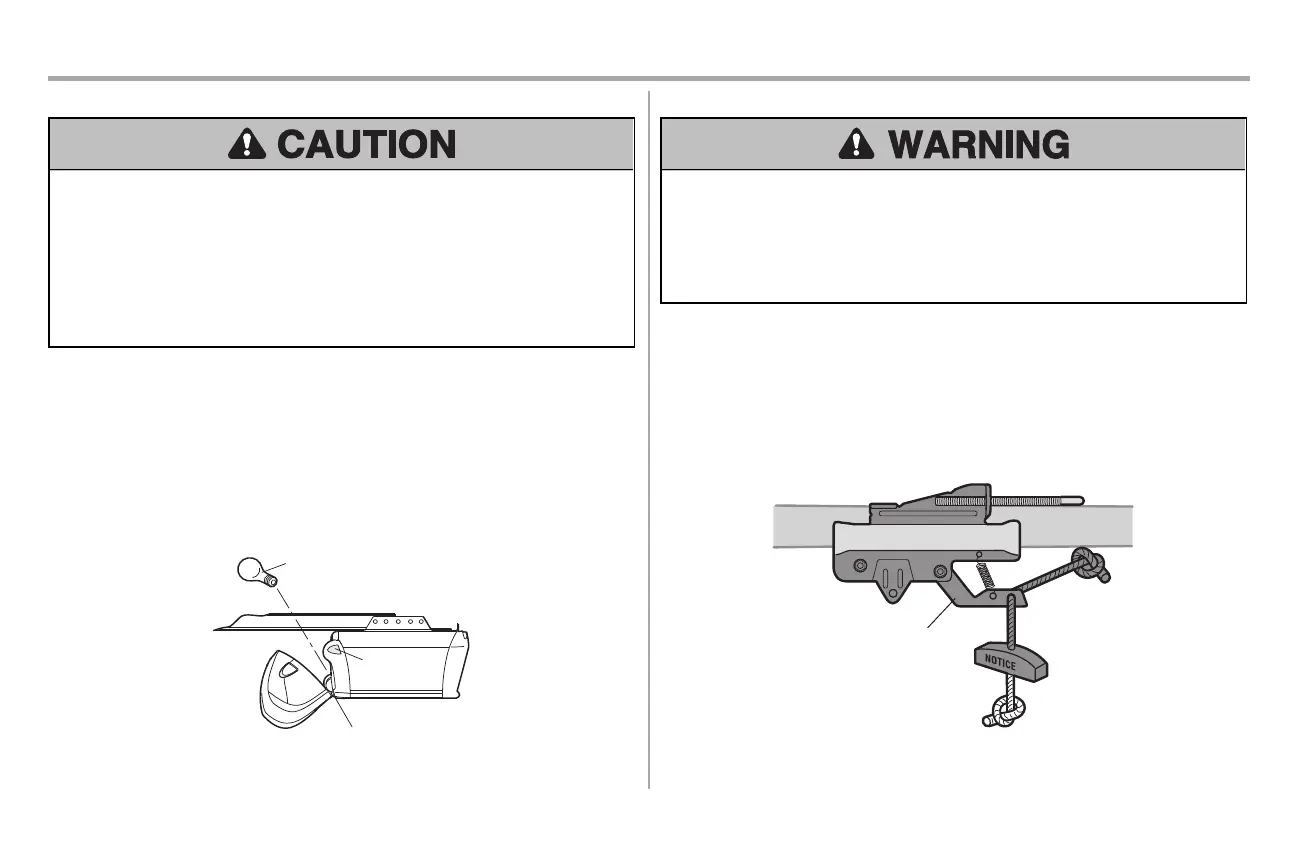

6 Install the Light Bulbs
To prevent possible OVERHEATING of the end panel or light socket:
•
Use ONLY A19 light bulbs.
•
DO NOT use incandescent bulbs larger than 100W.
•
DO NOT use compact fluorescent light bulbs larger than 26W (100W equivalent).
•
DO NOT use halogen bulbs.
•
DO NOT use short neck or specialty light bulbs.
LED bulbs may cause remote control radio interference. Use ONLY LED bulbs recommended here:
chamberlain.com/bulb.
1. Press the release tabs on both sides of lens. Gently rotate lens back and downward until the lens hinge is in
the fully open position. Do not remove the lens.
2. Install a 100 watt maximum light bulb in each socket. Light bulb size should be A19, standard neck only.
The lights will turn ON and remain lit for approximately 4-1/2 minutes when power is connected. Then the
lights will turn OFF.
3. Reverse the procedure to close the lens.
NOTE: If the bulbs burn out prematurely due to vibration, replace with A19, standard neck garage door opener
bulbs. The use of short neck or specialty light bulbs may overheat the endpanel or light socket.
100 Watt (Max)
Standard Light Bulb
Release Tab
Lens Hinge
7 Attach the Emergency Release Rope and Handle
To prevent possible SERIOUS INJURY or DEATH from a falling garage door:
•
If possible, use emergency release handle to disengage trolley ONLY when garage door is CLOSED.
Weak or broken springs or unbalanced door could result in an open door falling rapidly and/or
unexpectedly.
•
NEVER use emergency release handle unless garage doorway is clear of persons and obstructions.
•
NEVER use handle to pull door open or closed. If rope knot becomes untied, you could fall.
1. Insert one end of the emergency release rope through the handle. Make sure that “NOTICE” is right side
up. Secure with an overhand knot at least 1" (2.5 cm) from the end of the rope to prevent slipping.
2. Insert the other end of the emergency release rope through the hole in the trolley release arm. Mount the
emergency release within reach, but at least 6 feet (1.83m) above floor, avoiding contact with vehicles to
prevent accidental release and secure with an overhand knot.
NOTE: If it is necessary to cut the emergency release rope, seal the cut end with a match or lighter to prevent
unraveling. Ensure the emergency release rope and handle are above the top of all vehicles to avoid
entanglement.
Trolley
Release Arm
