Raynor CORPORAL II STANDARD Series User Manual

16
Door Control

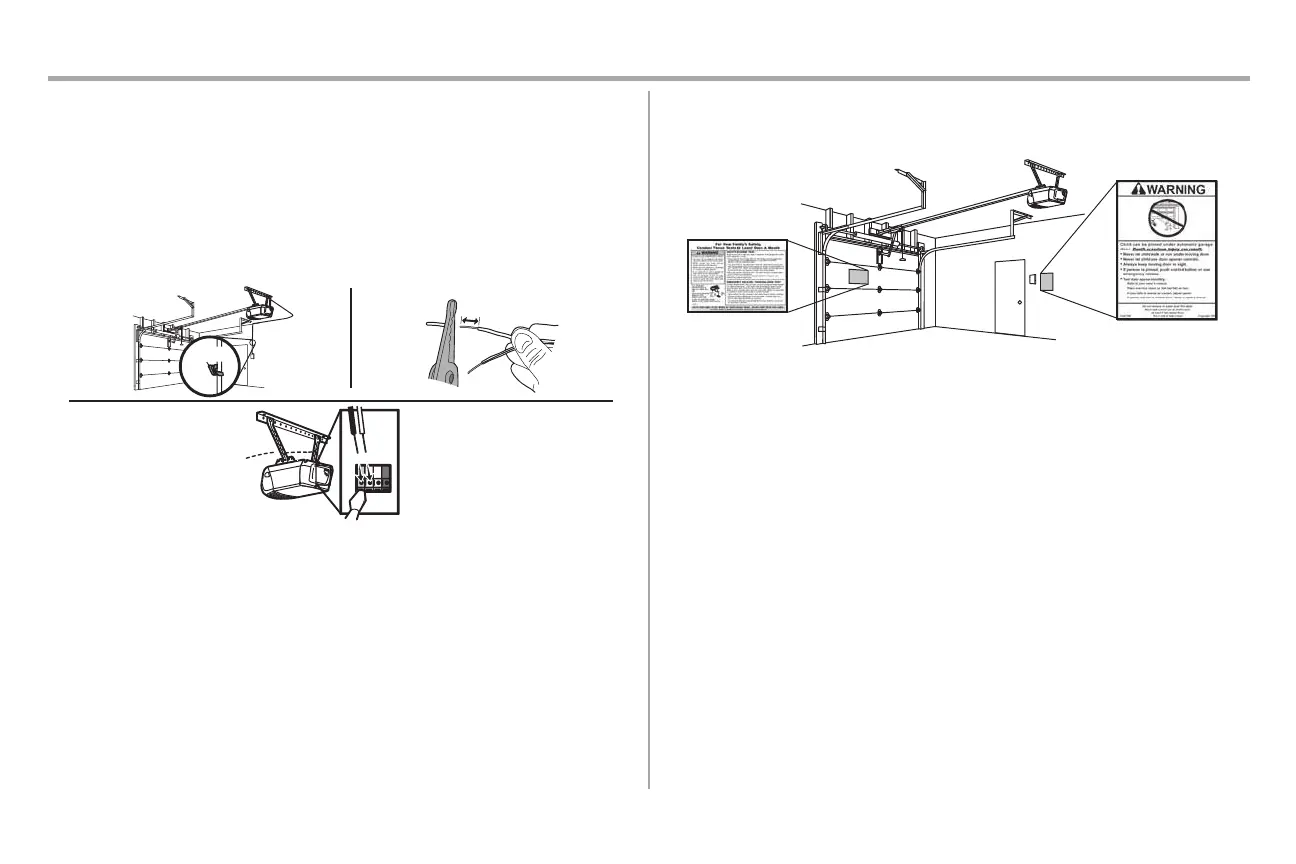

2 Wire the Door Control to the Garage Door Opener
PRE-WIRED INSTALLATIONS: When wiring the door control to the garage door opener make sure you use the
same wires that are connected to the door control.
1. Run the white and red/white wire from the door control to the garage door opener. Attach the wire to the
wall and ceiling with staples (not applicable for gang box or pre-wired installations). Do not pierce the wire
with the staple as this may cause a short or an open circuit.
2. Strip 7/16" (11 mm) of insulation from the end of the wire near the garage door opener.
3. Connect the wire to the red and white terminals on the garage door opener. To insert or release wires from
the terminal, push in the tab with screwdriver tip.
7/16" (11 mm)
2
3
1
Staple
RED
WHITE
WHITE
GREY
3 Attach the Warning Labels
1. Attach the entrapment warning label on the wall near the door control with tacks or staples.
2. Attach the manual release/safety reverse test label in a visible location on the inside of the garage door.
