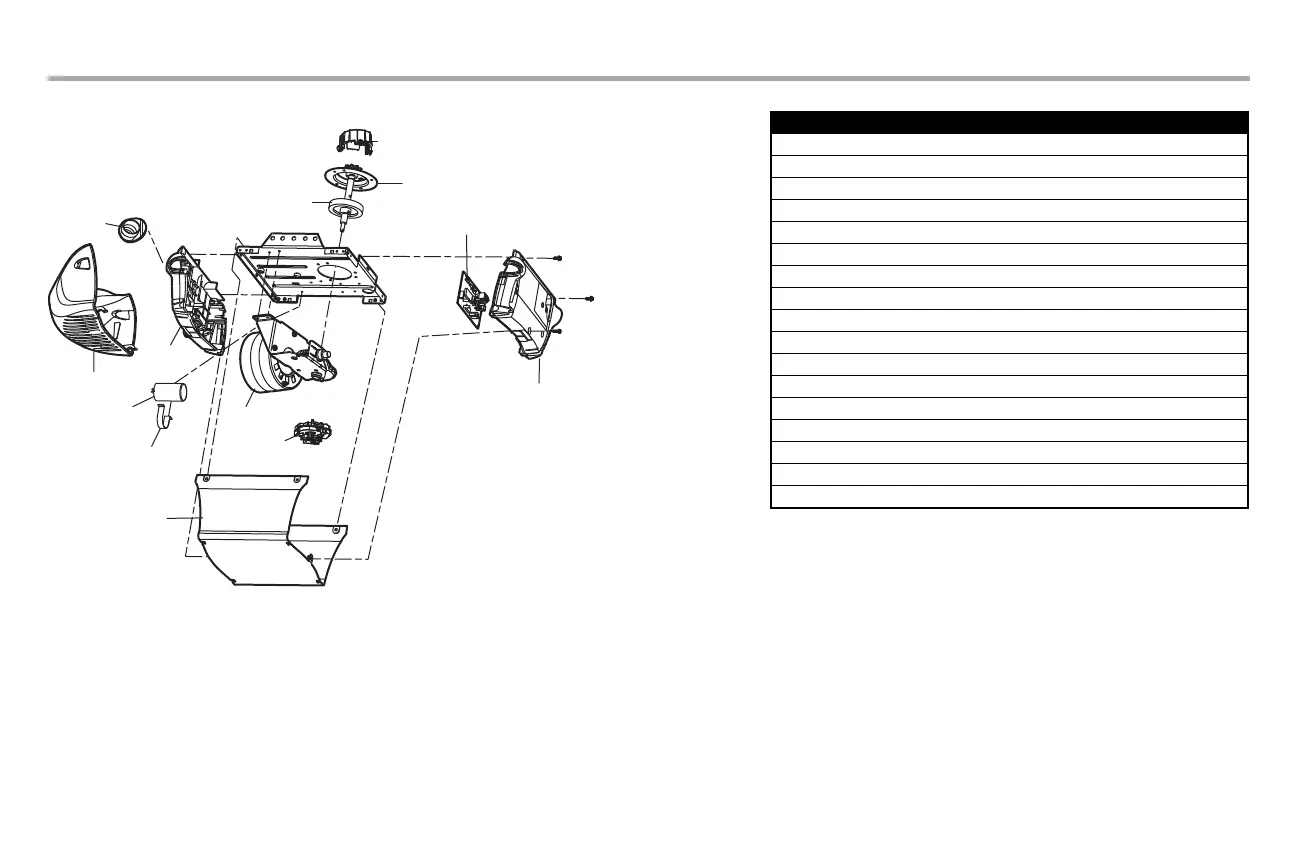

Raynor CORPORAL II STANDARD Series - Garage Door Opener Internal Parts

42
GARAGEDOOROPENERPARTS
1
2
3
10
12
13
8
7
6
4
5
11
9
Description Part Number
1 Sprocket cover 031D0380M
2 Gear and sprocket 041C4220A
3 Drive and Worm Gear 041A2817
4 Front end panel with all labels 041A8393
5 Light socket 041C0279
6 Light lens K108D0079M
7 Capacitor 030B0532-1
8 Capacitor bracket K012A0373
9 Universal motor 041D7440
10 Travel module 041D7742-7
11 Cover 041D9023
12 Logic board 050ACTWFMC
13 Logic board end panel 041D0239-1
Not Shown
Line cord 041B4245-1
Terminal block 041A3150
Wire Harness 041A7946
CONTACT INFORMATION
Address repair parts order to:
Raynor Garage Doors
1101 E. River Rd.
Dixon, Illinois 61021
For installation and service information call:
1-800-472-9667
Or visit us online at:
www.raynor.com
Before calling, please have the model number of the garage door opener. If you are calling
about a troubleshooting issue, it is recommended that you have access to your garage door
opener while calling. If you are ordering a repair part please have the following information:
part number, part name, and model number.
Repair Parts
