Raypak 406A Installation And Operation Manual

10
TOH
FLORIDA AND TEXAS BUILDING CODES
WIND SPEED = 150 MPH, 3 SECOND GUST
EXPOSURE = C
B
28"
(711 mm)
38"
(965 mm)
3" (76 mm)
Min. Conc.
Pad by others
3" (76 mm)
Min. Conc.
Pad by others
(1)–1/4" x 2-1/4" S.S.
Tapcon Bolt & Washer (Field-Supplied)
Ea. Pallet Anchor Bracket
Use hole closest to unit (4 total)
(1)–1/4" x 2-1/4" S.S.
Tapcon Bolt & Washer (Field-Supplied)
Ea. Pallet Anchor Bracket
Use hole closest to unit (4 total)
2" x 6" x 1/8" Pallet
Anchor Bracket (4 Total) (Kit# 011636)
1/4" x 2-1/4" S.S.
Tapcon Bolt and Washer (Field-Supplied)
NOTE: Use hole closest to unit with
washer overlapping edge of unit.
Min. Edge
Distance
6"
(152 mm)
Min. Edge
Distance
6"
(152 mm)
F10648
F10646-2
Model
B
in. (mm)
206A 20 (508)
266/266A 23 (584)
336A 26 (660)
399/406A 29 (737)

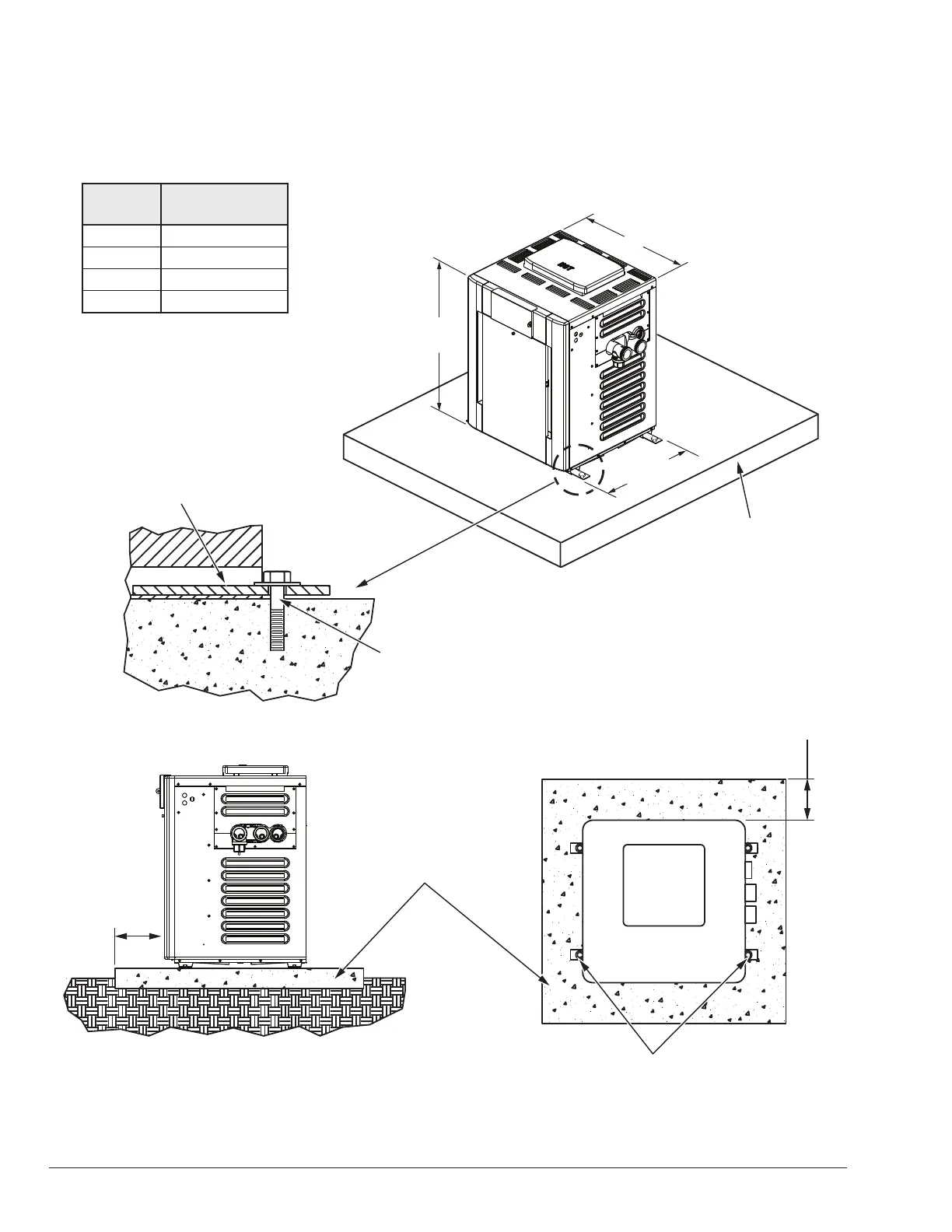

Figure 5. Hurricane Tie-Down Bracket Installation
PRELIMINARY
UNCONTROLLED DOCUMENT IF PRINTED

Raypak 406A Specifications

General

Model	406A
Category	Gas Heater
BTU Input	400, 000 BTU/hr
Fuel Type	Natural Gas or Propane
Ignition	Electronic
Maximum Water Flow Rate (GPM)	120 GPM
Vent Diameter	6"
Water Connections	2"
