Raypak 407A Installation And Operation Manual

45

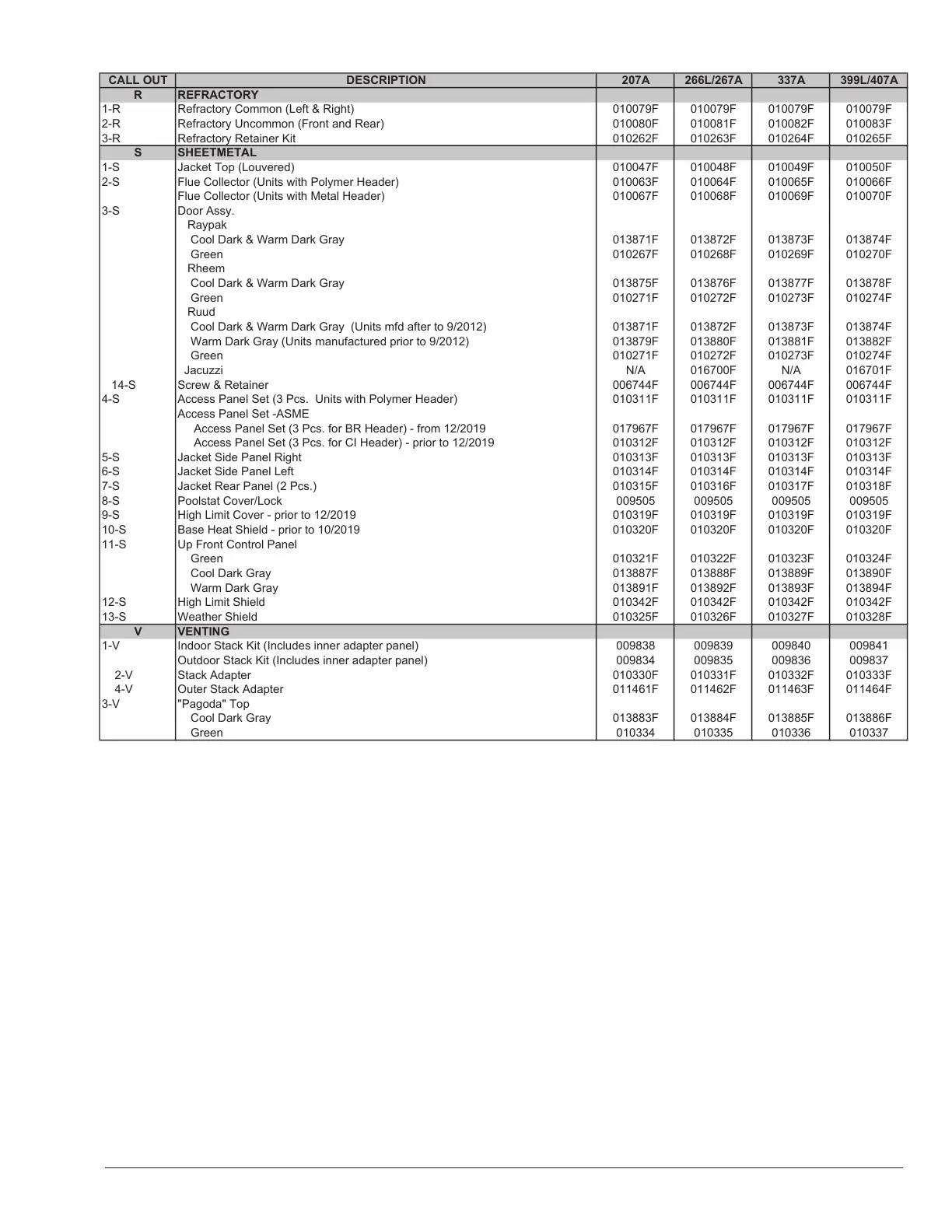

CALL OUT DESCRIPTION 207A 266L/267A 337A 399L/407A
R REFRACTORY
1-R Refractory Common (Left & Right) 010079F 010079F 010079F 010079F
2-R Refractory Uncommon (Front and Rear) 010080F 010081F 010082F 010083F
3-R Refractory Retainer Kit 010262F 010263F 010264F 010265F
S SHEETMETAL
1-S Jacket Top (Louvered) 010047F 010048F 010049F 010050F
2-S Flue Collector (Units with Polymer Header) 010063F 010064F 010065F 010066F
Flue Collector (Units with Metal Header) 010067F 010068F 010069F 010070F
3-S Door Assy.
Raypak
Cool Dark & Warm Dark Gray 013871F 013872F 013873F 013874F
Green 010267F 010268F 010269F 010270F
Rheem
Cool Dark & Warm Dark Gray 013875F 013876F 013877F 013878F
Green 010271F 010272F 010273F 010274F
Ruud
Cool Dark & Warm Dark Gray (Units mfd after to 9/2012) 013871F 013872F 013873F 013874F
Warm Dark Gray (Units manufactured prior to 9/2012) 013879F 013880F 013881F 013882F
Green 010271F 010272F 010273F 010274F
Jacuzzi N/A 016700F N/A 016701F
14-S Screw & Retainer 006744F 006744F 006744F 006744F
4-S Access Panel Set (3 Pcs. Units with Polymer Header) 010311F 010311F 010311F 010311F
Access Panel Set -ASME
Access Panel Set (3 Pcs. for BR Header) - from 12/2019 017967F 017967F 017967F 017967F
Access Panel Set (3 Pcs. for CI Header) - prior to 12/2019 010312F 010312F 010312F 010312F
5-S Jacket Side Panel Right 010313F 010313F 010313F 010313F
6-S Jacket Side Panel Left 010314F 010314F 010314F 010314F
7-S Jacket Rear Panel (2 Pcs.) 010315F 010316F 010317F 010318F
8-S Poolstat Cover/Lock 009505 009505 009505 009505
9-S High Limit Cover - prior to 12/2019 010319F 010319F 010319F 010319F
10-S Base Heat Shield - prior to 10/2019 010320F 010320F 010320F 010320F
11-S Up Front Control Panel
Green 010321F 010322F 010323F 010324F
Cool Dark Gray 013887F 013888F 013889F 013890F
Warm Dark Gray 013891F 013892F 013893F 013894F
12-S High Limit Shield 010342F 010342F 010342F 010342F
13-S Weather Shield 010325F 010326F 010327F 010328F
V VENTING
1-V Indoor Stack Kit (Includes inner adapter panel) 009838 009839 009840 009841
Outdoor Stack Kit (Includes inner adapter panel) 009834 009835 009836 009837
2-V Stack Adapter 010330F 010331F 010332F 010333F
4-V Outer Stack Adapter 011461F 011462F 011463F 011464F
3-V "Pagoda" Top
Cool Dark Gray 013883F 013884F 013885F 013886F
Green 010334 010335 010336 010337
