22
Installing a Remote Control
Device
Wiring
For a 2-wire control, use the TOTAL and COMMON
connections on the heat pump pool heater wiring
block.
For a 3-wire control, use the COMMON, SPA and
POOL connections on the heat pump pool heater
wiring block.
Heater Settings
1. Make sure the heater is disabled on the remote
control device. Then, push the SET key until POL
is displayed. Push the DOWN arrow key until OFF
is displayed. Wait until a temperature is displayed
before beginning the next step.
2. Push the SET key until SPA is displayed, then
push the UP arrow to 104°F. Wait until a tempera-
ture is displayed before beginning the next step.
3. Push the SET key until P_S is displayed, then
push the DOWN arrow until POL is displayed.
Wait until a temperature is displayed before begin-
ning the next step.
4. Finally, enable the heater on the remote control
device. When there is a call for heat, the heater
display will show SPA. When the heater is dis-
abled, the display will show POL.

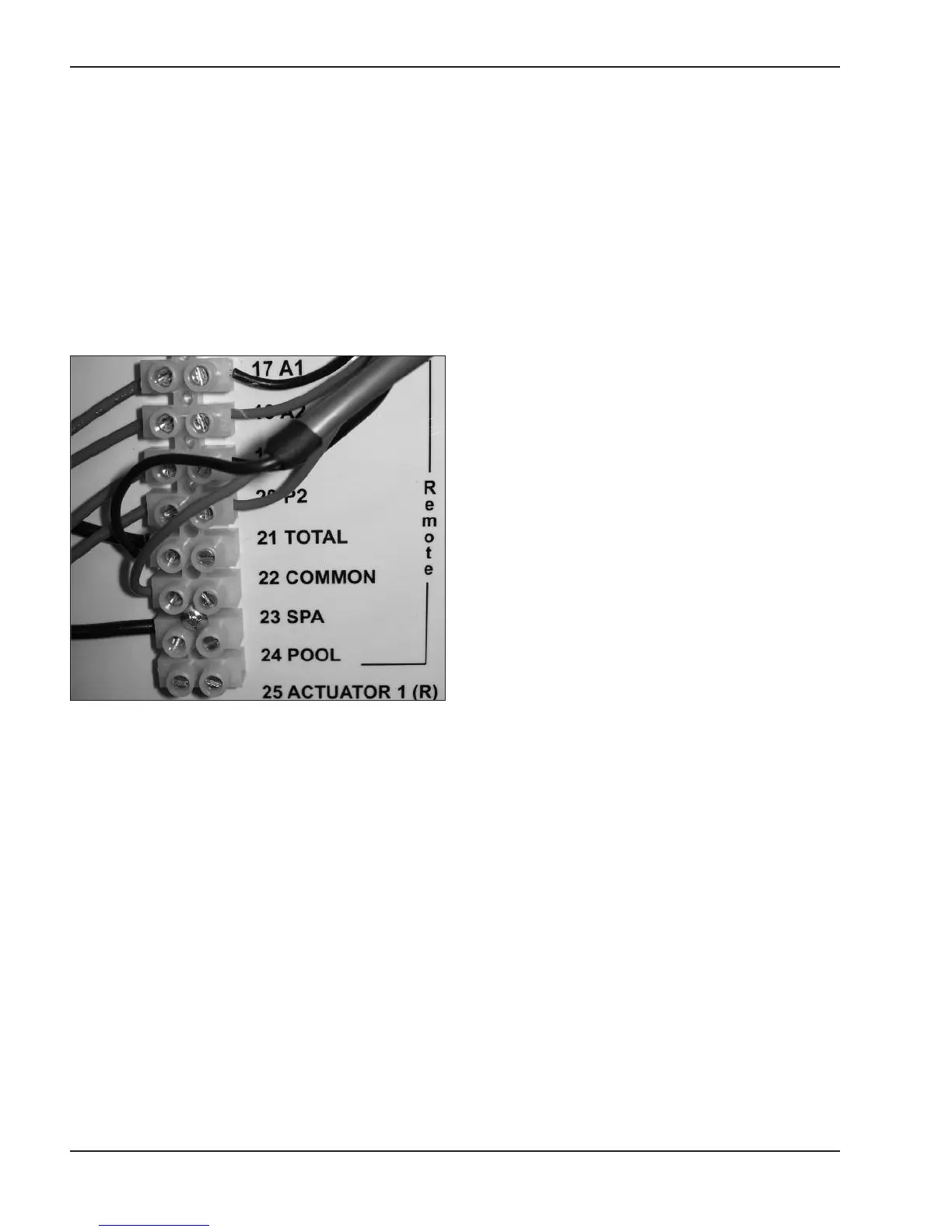

Fig. 11: Heater Wiring Block
