RayTek MP150 User Manual

Technical Data
14 Rev. E3 07/2013 MP150
Weight (incl. air purge) 7 kg (15.4 lbs)
2.5 Dimensions

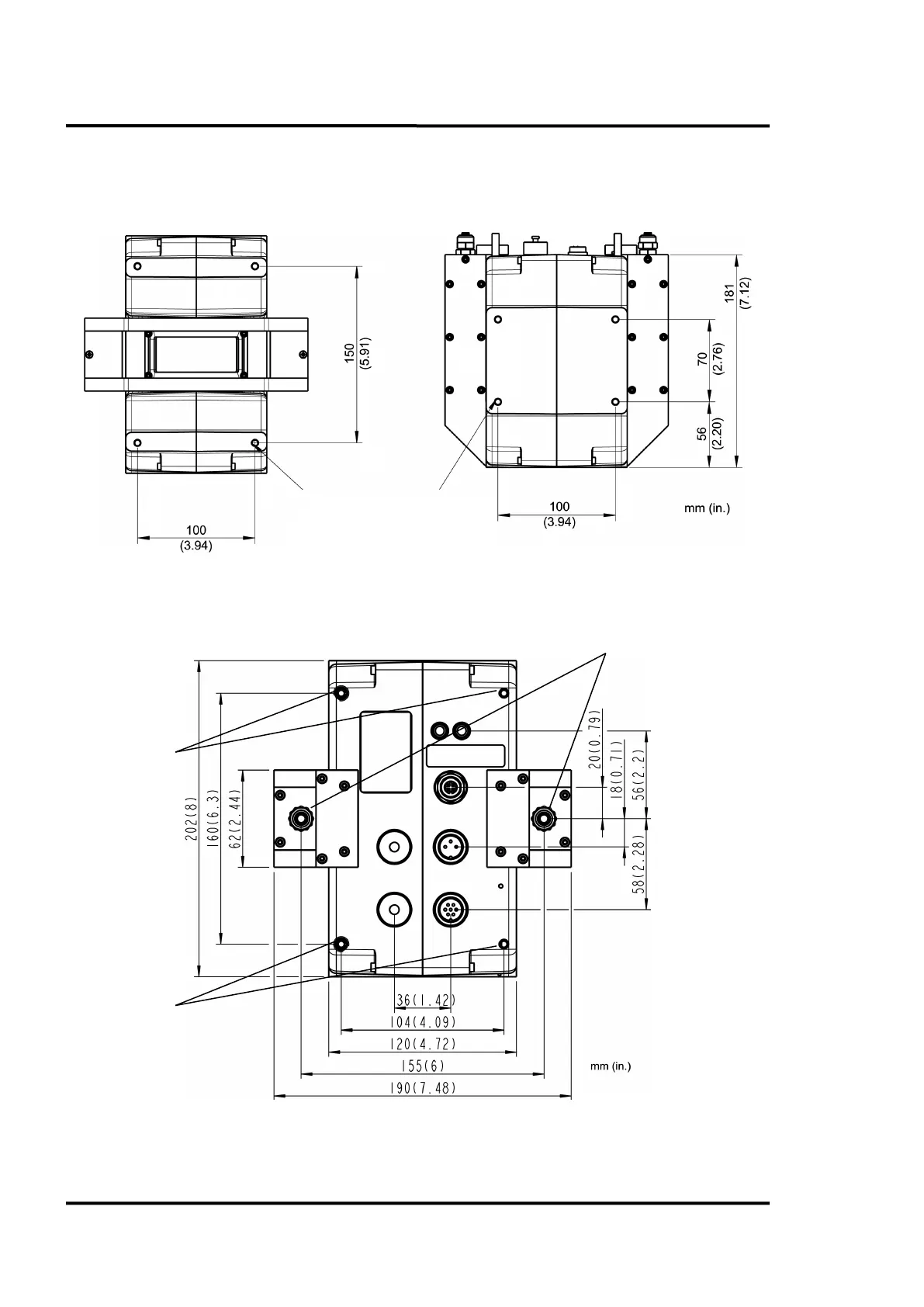

Figure 5: Linescanner mounting locations and dimensions
Note: The mounting dimensions are the same for top and bottom view!
All mounting threads are
4x M6
8 mm (0.31) deep
(front side, upside, below)
Air purge connections
ISO 228 G⅛“
∅ outer 5 mm (.2 in)
∅
inner 3 mm (.12 in)
Water connections
∅ outer 6 mm (.24
in)
∅ inner 4 mm (.16
in)
Water connections
∅ outer 6 mm (.24
in)
∅ inner 4 mm (.16
in)
