Accessories
MP150 Rev. E3 07/2013 41
7.7 Industrial Power Supply
The DIN-rail mount industrial power supply delivers isolated dc power and provides short circuit
and overload protection.
To prevent electrical shocks, the power supply must be used in protected environments
(cabinets)!
Technical data:
Protection class prepared for class II equipment
Environmental protection IP20
Operating temperature range -25°C to 55°C (-13°F to 131°F)
AC Input 100 – 240 VAC 44/66 Hz
DC Output 24 VDC / 1.3 A
Cross sections input/output
0.08 to 2.5 mm² (AWG 28 to 12)
1

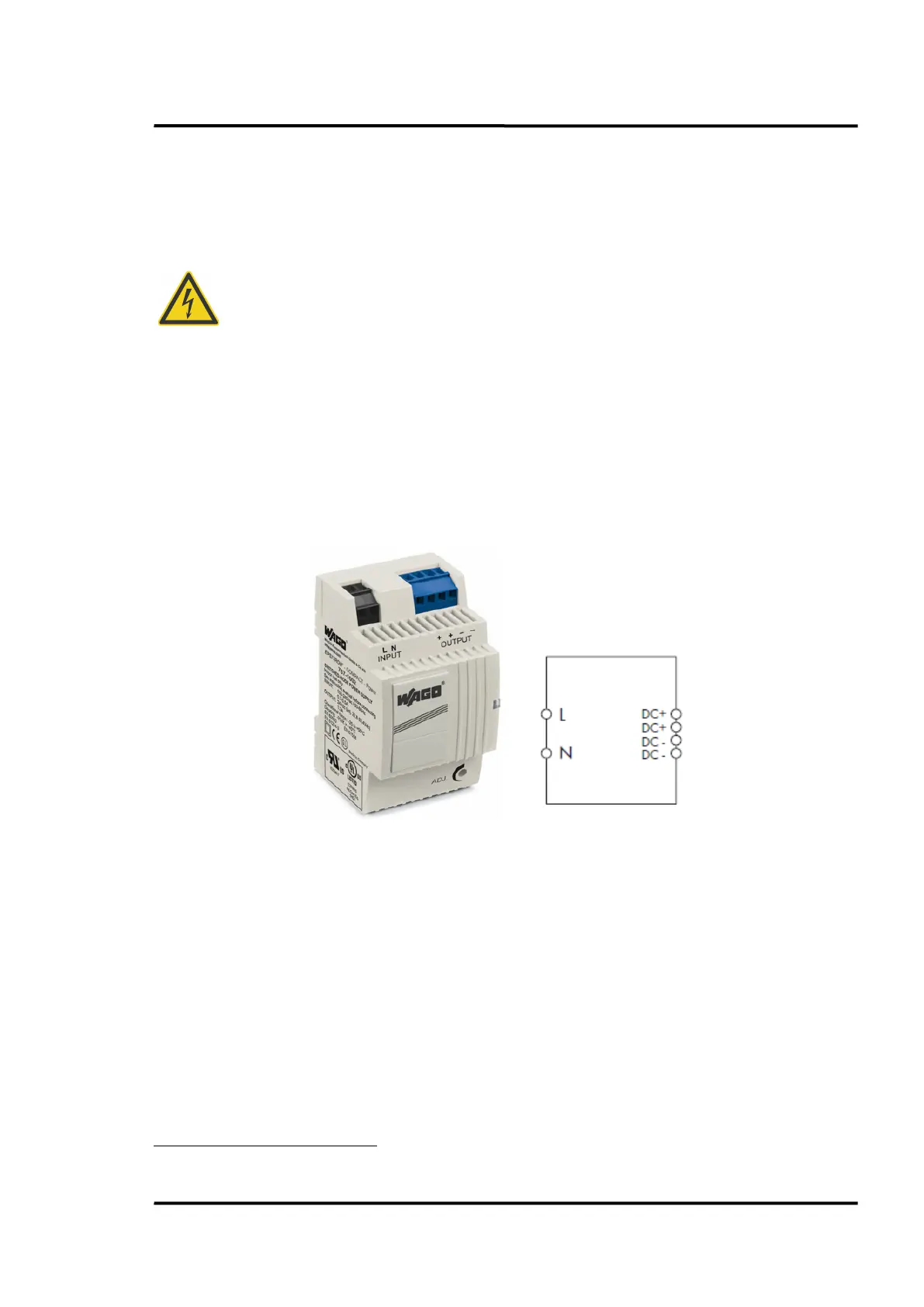

Figure 17: Industrial Power Supply
7.8 RS485 Interface Kit
The RS232/485 interface provides a serial data transfer to the PC. However, the PC will have to be
capable of communicating at a sufficiently high baud rate. Most standard PC’s communicate at speeds
up to 115 kBaud which is capable of communication with the linescanner at a scan speed of 36 Hz and
at 256 pixel per scan data sampling rate. For faster scan frequencies or for a higher pixel count the
Ethernet connection should be used.
The RS485 Interface Kit comes with 7.5 m (25 ft) long RS485 cable (for ambient: 180°C/356°F:
XXXTMP50S485CB, for ambient: 60°C/140°F: XXXTMP150S485CBLT), RS232/485 converter and RS232
adapter cable 25 to 9-pin.
To use the RS232/485 connection, connect the linescanner to the PC with the RS485 cable. First, insert
the 7-pin DIN-round plug (IP65) into the socket on the back side of the linescanner, then tighten the
1
Copyright Wago
®
