Maintenance
52 Rev. E3 07/2013 MP150
8 Maintenance
If you need application assistance, calibration, repair, and solutions to specific problems our customer
service representatives are always at your disposal. In many cases, problems can be solved over the
telephone. If you need to return equipment to us, please contact our Service Department before doing
so, please look at the address page for contact information.
8.1 Cleaning the Window
The linescanner’s window must be kept as clean as possible. Any foreign matter on the window will
affect the accuracy of the measurements. Take care when cleaning the window as it can easily be
scratched. Please observe the following guidelines:
• Lightly blow off loose particles.
• Gently brush off remaining particles with a soft camel hair brush.
• Clean remaining dirt using a soft cotton cloth dampened in distilled water. Don’t rub.
• To remove finger prints or other grease, gently wipe with a soft cloth dampened in a mild
soap or distilled water (or ethanol or alcohol) solution.
• You should avoid getting any liquid in areas surrounding the window material.
8.2 Replacing the Window
1. Remove the 4 hex screws on the back side using a 2.5 mm allen wrench. Slide the collar
forward to separate it from the housing!

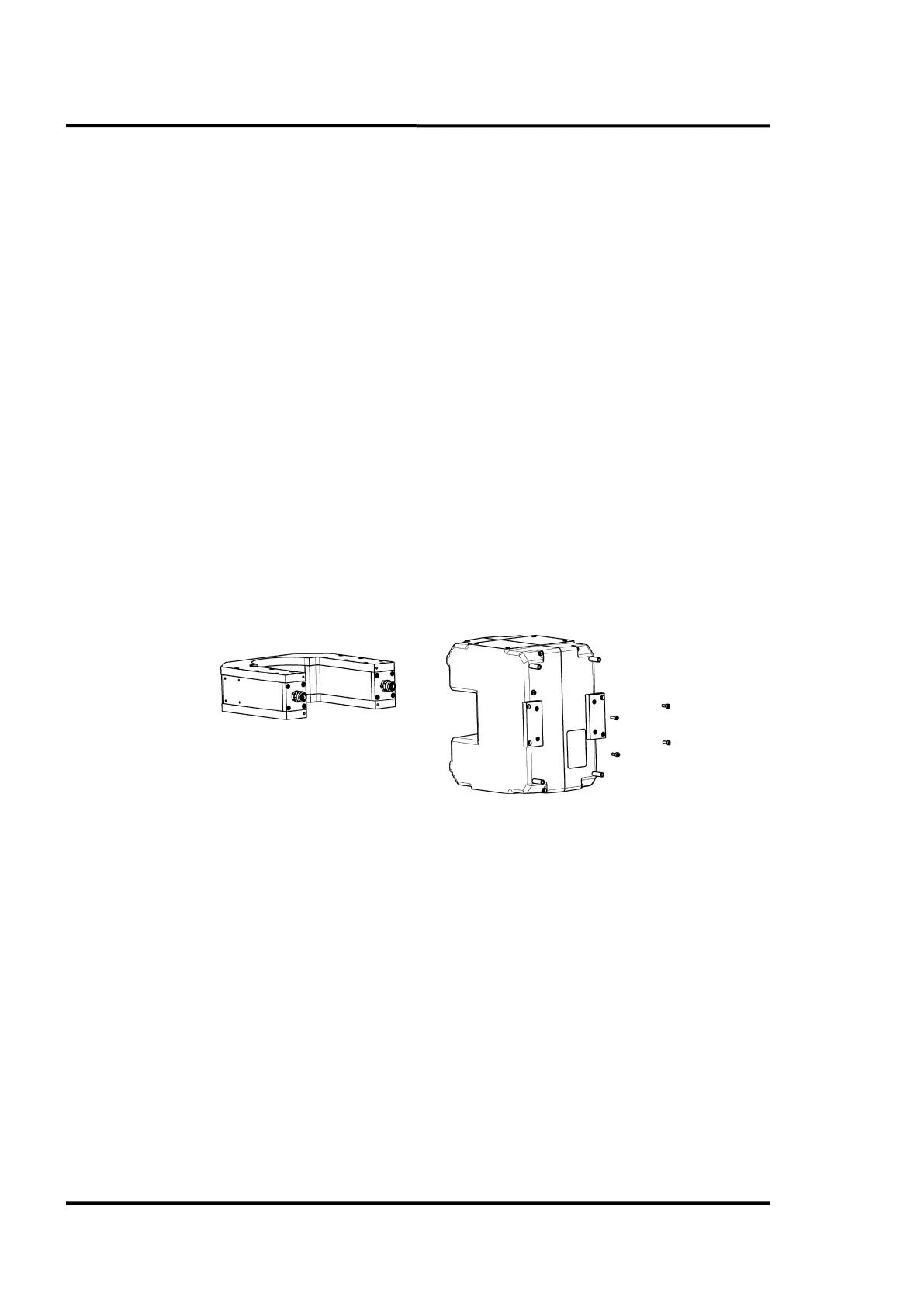

Figure 32: Removing the air purge collar
2. Remove the 4 hex screws on the front side separating the window frame from the housing.
Separate the window from the frame!
3. The window assembly consists of a frame (holder), the window material (mica) and a gasket.
The gasket lies close to the housing, followed by the window material. If necessary, exchange
the window material. Window size: 114 x 60 mm (4.49 x 2.36 inches).
