Maintenance
MP150 Rev. E3 07/2013 53

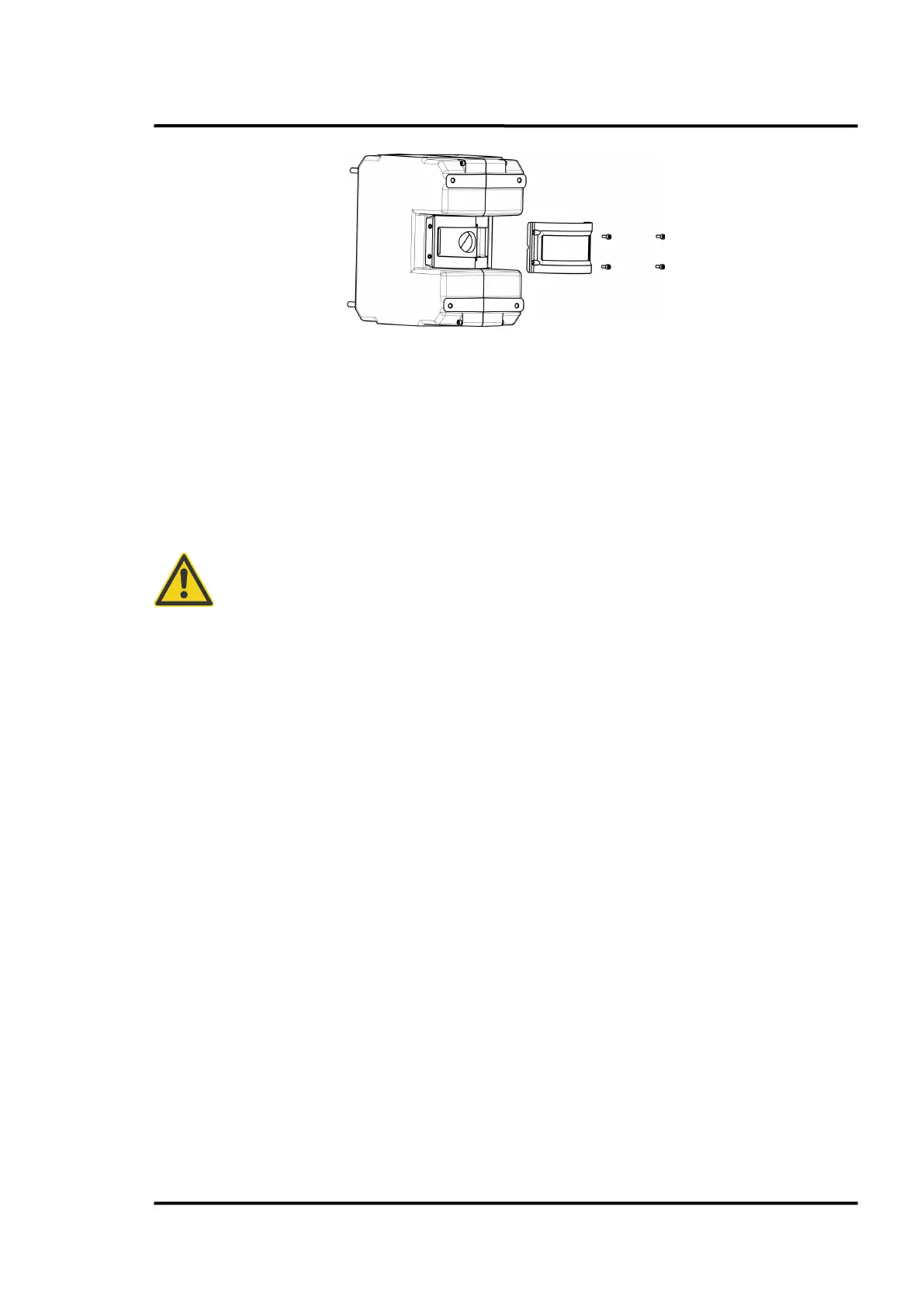

Figure 33: Separating the window
4. The four mounting screws must be placed in the holder´s corners before reassembling! Center
the new film on the housing’s gasket!
5. Check for even tension of the film. Remove the film and repeat the steps if there are wrinkles
on the film!
6. Install the window assembly on the housing by alternating between the four screws. Do not
over-tighten!
7. Install the air purge collar on the housing!
For correct temperature readings, the transmission factor for the new window must be
set via the scanner runtime software, see menu <Scanner> <Transmissivity of the
scanner window>!
