WARNING: Failing to properly tighten the steering bolt that attaches the front fork assembly to the frame assembly can cause you to lose control
and fall.

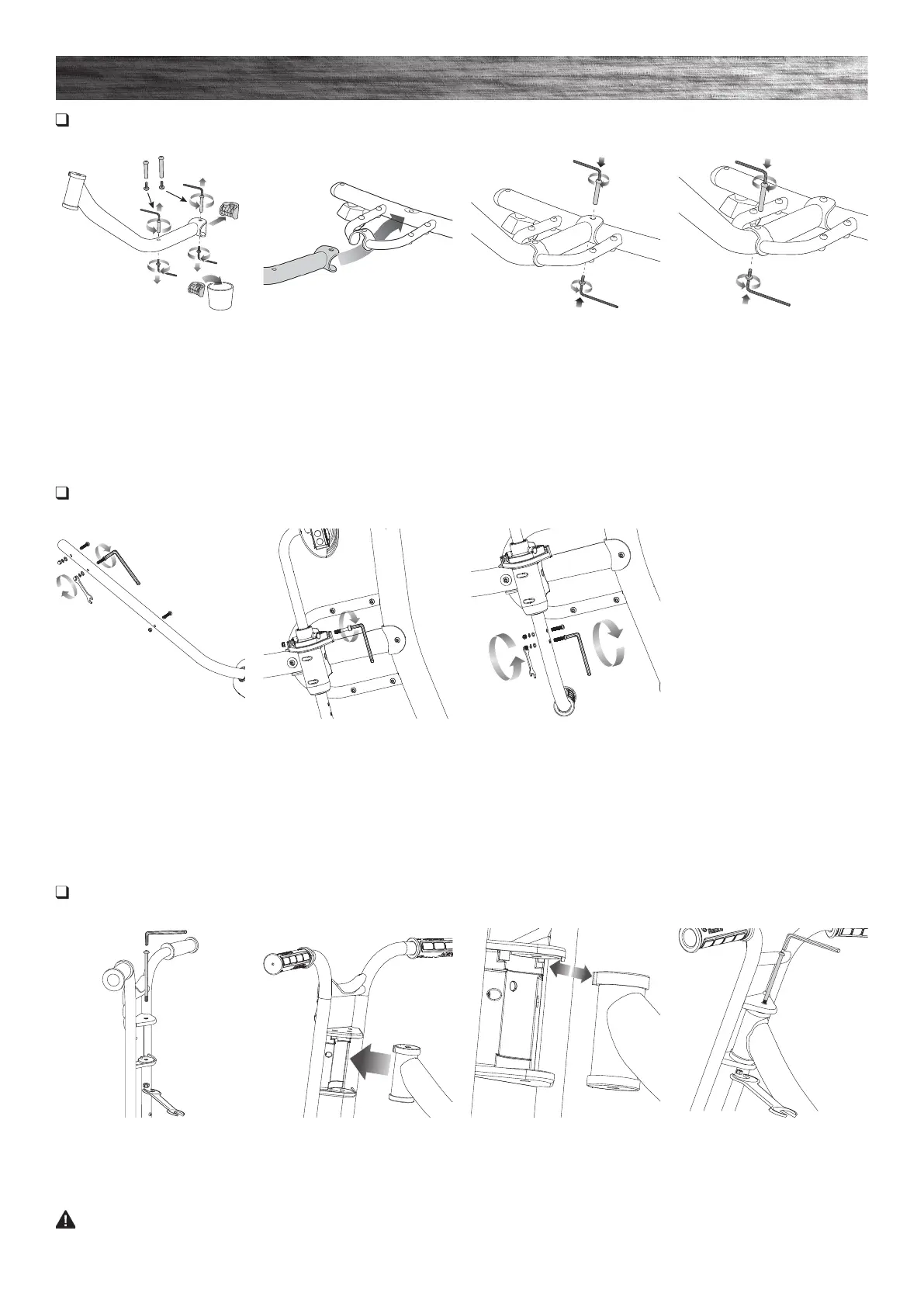

ASSEMBLY AND SET-UP
3
1 Using two (2) 5 mm Allen
wrenches, remove the coupling
bolt on the end of the frame and
the coupling bolt in the middle of
the frame. Remove and discard the
plastic insert.
Note: The coupling bolt in the
middle of the frame is shorter.
1 Remove the steering bolt and
locknut from the frame assembly
with a 13 mm wrench and a 5 mm
Allen wrench.
1 Using a 10 mm wrench and
a 5 mm Allen wrench, remove the
coupling bolts from the
Spark Bar Handle.
2 Insert the rear frame into the
frame assembly.
2 Insert the front fork into the
frame assembly.
2 Insert the Spark Bar Handle (right
side) and the Spark Bar (left side)
into the spring mechanism. Align
the holes on the Spark Bar Handle
with the hole on the spring
mechanism and tighten the
coupling bolt with a 10 mm
wrench and a 5 mm Allen wrench.
3 Securely tighten the (longer)
coupling bolt on the rear frame using
two (2) 5 mm Allen wrenches.
3 Be sure to properly align the slot
on the headtube with the pin on the
front fork as shown.
3 Align the holes on the Spark
Handle with the holes on the Spark
Bar Handle and tighten the coupling
bolts with a 10 mm wrench and a 5
mm Allen wrench.
4 Securely tighten the (shorter)
coupling bolt in the middle of
the frame using two (2) 5 mm
Allen wrenches.
4 Reinsert the steering bolt and
secure with locknut using a 13 mm
wrench and a 5 mm Allen wrench.
Attaching the Frame
Required Tools: Two (2) 5 mm Allen Wrenches
Attaching the Front Fork
Required Tools: 13 mm Wrench and 5 mm Allen Wrench
Attaching the Spark Bar
Required Tools: 10 mm Wrench and 5 mm Allen Wrench
