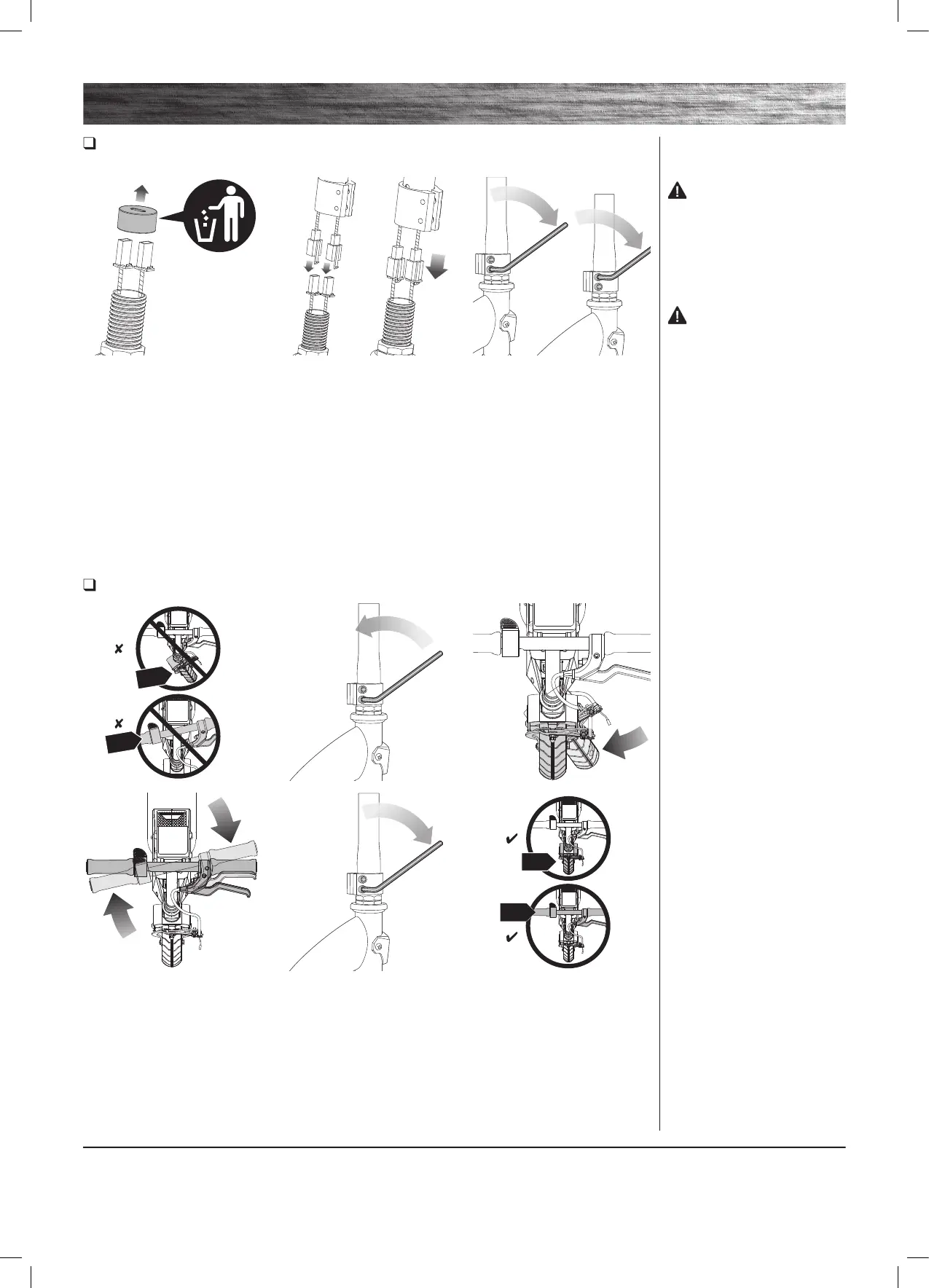

ASSEMBLY AND SET-UP
Attaching the Handlebars
Required Tool: 5 mm Allen Wrench
Collar Clamp
3 With the front wheel pointed
straight ahead and the handlebars
square to the front wheel, tighten
both bolts on the clamp with a 5 mm
Allen wrench. Tighten securely.
2 Join the connectors from the
T-bar to the fork. Loosen the collar
clamp on the T-bar with a side to
side twisting motion, install the
T-bar to the fork until it bottoms out
on the headset locknut.
1 Before inserting the T-bar
onto the fork, carefully pull the
connectors through the rubber
protector to remove. Discard the
rubber protector.
WARNING: Do not attempt
to thread the stem into the front
fork thread.
Note: Make sure any cables/wires
are out of the way before inserting
the stem into the fork.
WARNING: Failure to
properly tighten the collar clamp
may allow the handlebars to
dislodge while riding and may
cause you to lose control and fall.
When correctly tightened, the
handlebars will not rotate out of
alignment with the front wheel
under normal circumstances.
Note: The cable and wire assembly
from the handlebar must not
wrap around the steering tube or
handlebar. Sharp bends or twisting
of the brake cable can cause the
brake to malfunction.
