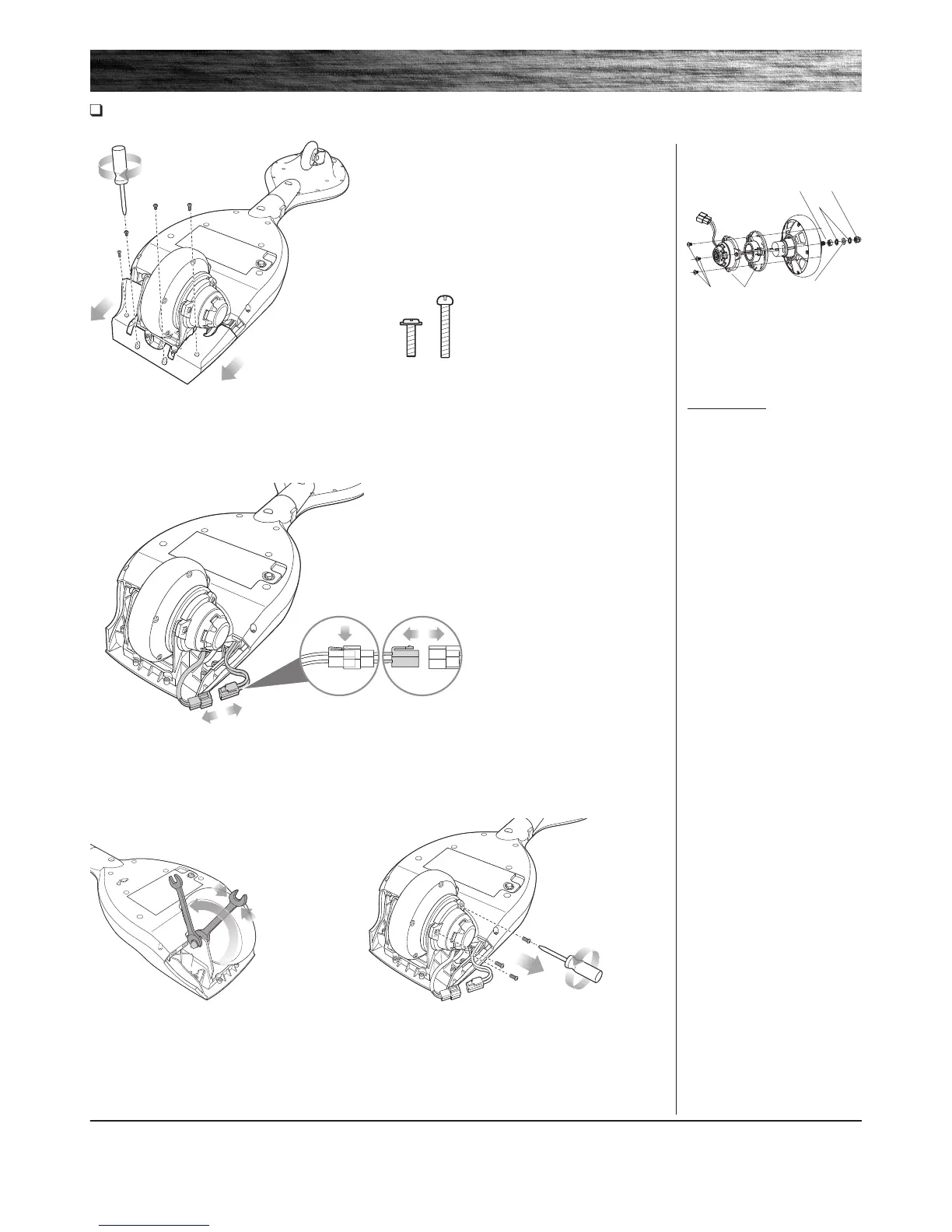

REPAIR AND MAINTENANCE
1 Turn product over. Loosen the four (4) Phillip screws on the rear platform
cover and remove cover.
2 Disconnect the motor connector from the control module.
Rear Wheel/Hub Motor Replacement
Tools Required: Phillips Screwdriver and Two (2) 13 mm Wrenches
3 Using a 13 mm wrench, loosen
the outside locknut (11-6). Use a 13
mm wrench to prevent the inside
nut (11-3) from turning.
4 Loosen the three (3) Phillips screws that attach the motor housing to the
frame. Remove rear wheel.
Install replacement wheel/hub motor by reversing steps 1-4.
Left Side
11-1 Phillips Screws (x3)
11-2 Motor Housing
Right Side
11-3 Nut
11-4 Spring Washer (x2)
11-5 Flat Washer
Frame
11-6 Locknut
Note: Rear wheel/hub motor
hardware sequence
To Next Page
