RBI FUTERA XLF Series User Manual

WIRING CONNECTIONS HeatNet Control V3
Page 74

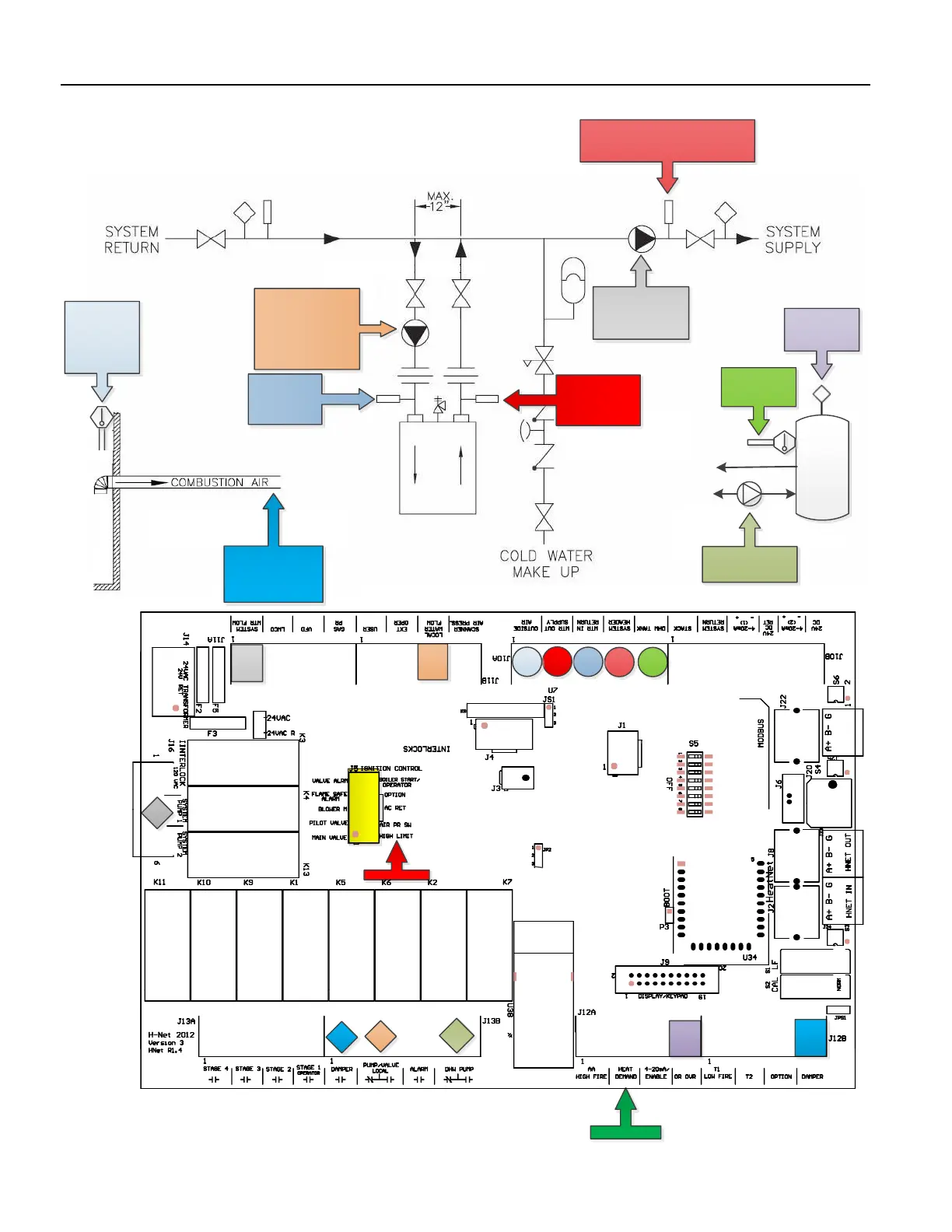

Figure 58 Typical Single Boiler System
#4
#3
#2
#1
#8
#14
#7
#11
#9
#10
#5
#13
#12
IGN Control
Connections
High Limit
Heat Demand*
*Note: When using DHW
MASTER? YES, a Heat Demand
signal must be used to activate
the system.
HEADER SENSOR
(Determines Master Boiler) #4
RETURN
SENSOR
#3
SUPPLY
SENSOR
#2
LOCAL PUMP
ENABLE #8
FLOW PROVE
#10
SYSTEM PUMP
ENABLE #14
FLOW PROVE #9
OUTDOOR
SENSOR
North Away
From Exhaust
#1
BOILER
DHW TANK
DHW PUMP
ENABLE #12
DHW TANK
SENSOR #5*
DHW TANK
AQUASTAT #13
DHW RETURN
DHW SUPPLY
COMBUSTION AIR
DAMPER
ENABLE #7
PROVE #11
