WIRING CONNECTIONS HeatNet Control V3
Page 78
* Status Information
Whenever an * is displayed on the RUN screen it indicates that there is more information available about the current running
conditions. This information can be viewed by going to the *STATUS screen as shown on the previous page. For more
information on the parameters discussed here please see the Default Settings & Menu Item Descriptions SETUP, starting on
page 88.

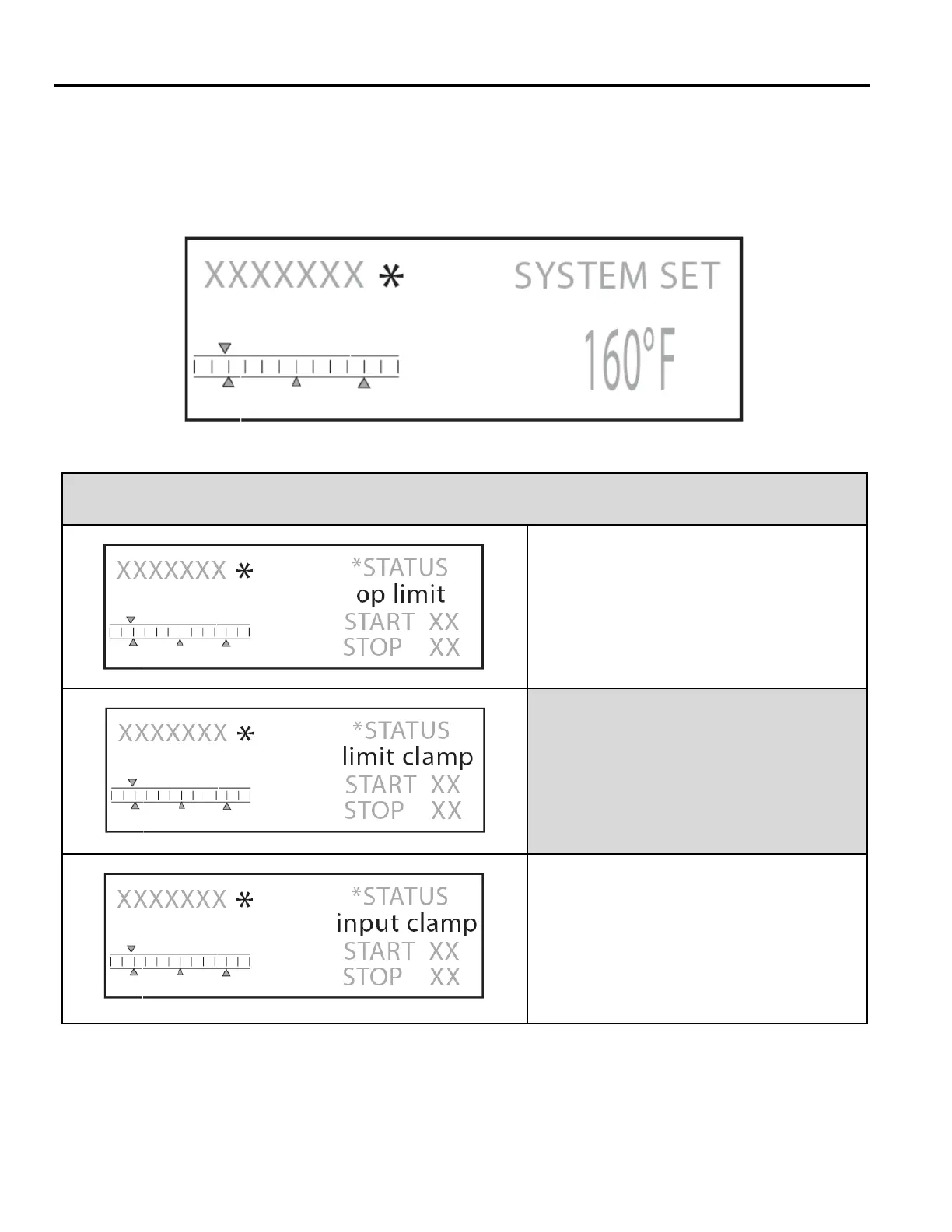

Status information screens
This screen indicates that the boiler’s SUPPLY
Temperature has gone above the OPERATOR
LIMIT. This will mainly be seen on Member
boilers to show why they are not available to fire.
This screen indicates that the boiler’s SUPPLY
temperature has risen inside the OPERATOR LIMIT
BAND.
This screen indicates the boiler’s input is being
limited by the MOD-MAX value to optimize system
efficiency. This will only be seen on a MASTER
boiler.
