RCA 12L500TD User Manual

Chapter 1: Connections & Setup
6 Chapter 1
Right side of the
TV/DVD
PHONES
AUDIO
LR
IN
VIDEO
IN
Back of the VCR
RF OUT
From Cable
or Antenna
Left side of the
TV/DVD
ANTENNA JACK
DC JACK
ANTENNA JACK
DC JACK

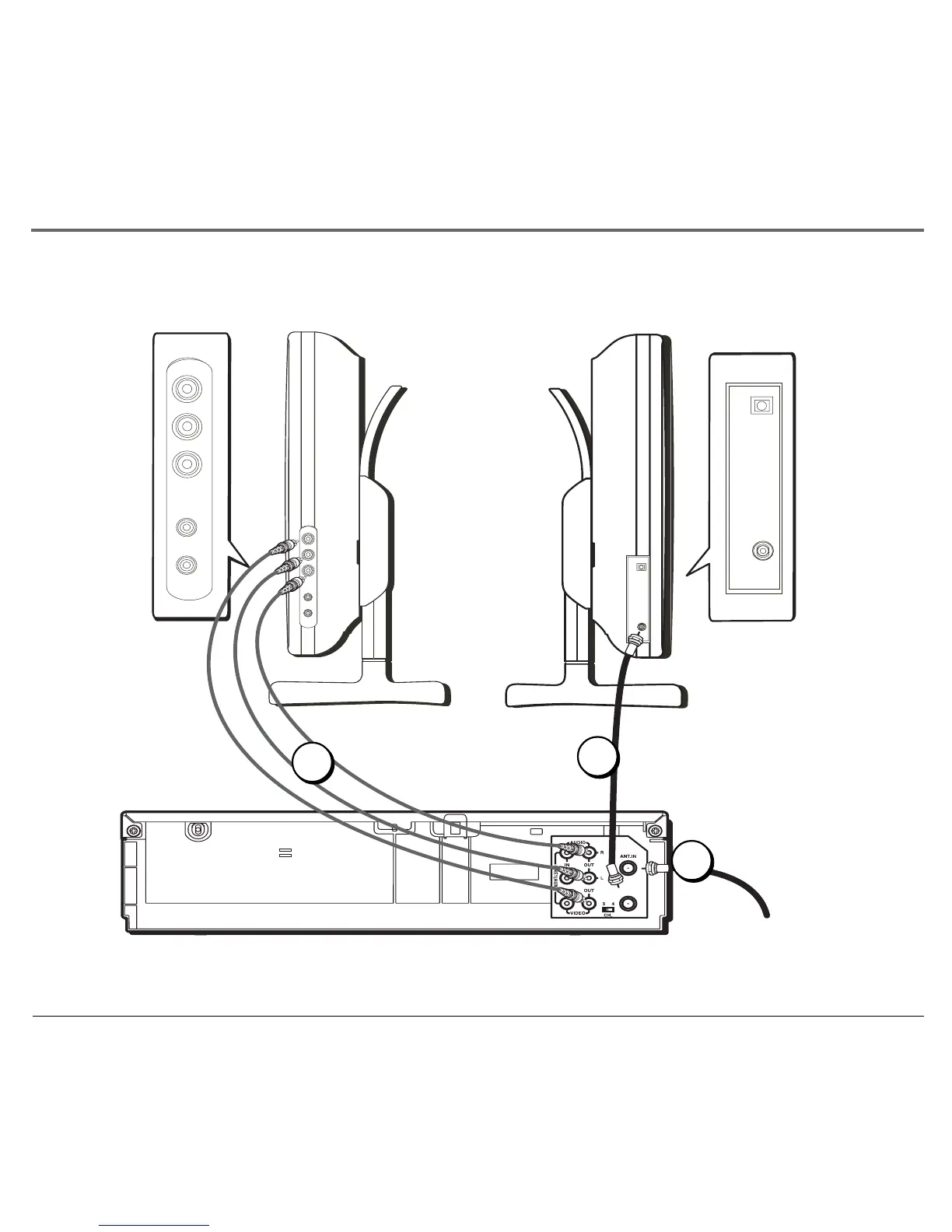

Connecting a VCR or Other Component
Make sure to use
the supplied “L”-
adapter to make
this connection
easier.
The back of your
VCR may not look
exactly like the one
shown here.
1A
1B
2

RCA 12L500TD Specifications

Power

dc power input	19 V
ac/dc power options	AC and 12V DC

Display

screen size	12 inches
aspect ratio	4x3
display resolution	SVGA (800 X 600)
response time	25 ms

Audio

audio power	1 Watt/Channel
speakers	2
sound type	Broadcast Stereo

DVD Capabilities

cd format compatibility	CD, CD-R, CD-RW
dvd format compatibility	DVD, DVD+R, DVD+RW, DVD-RW
intelliseek scan speeds	2x, 4x, 8x, 16x, 32x

Weight and Dimensions

packaged weight	12 lbs
product weight	10 lbs
packaging size	19 1/2 x 9 3/4 x 13 1/2 inches
product size with stand	15.5 x 11.5 x 7 inches
product size without stand	15.5 x 9.5 x 3 inches
