The back of TV
Connecting YPbPr Component device (Better Video Quality)
To connect a component device, such as a DVD player, follow these steps:
1. Connect the COMPONENT IN Y/Pb/Pr jack on the back of TV to the
video output jacks of device via video cable (green, blue
and red).
2. Connect the COMPONENT IN R-AUDIO-L jacks on the back of TV to t
he audio output jacks of device via audio cable.
Notice the left channel jack and plugs are white and the right channel jack and plugs are red.

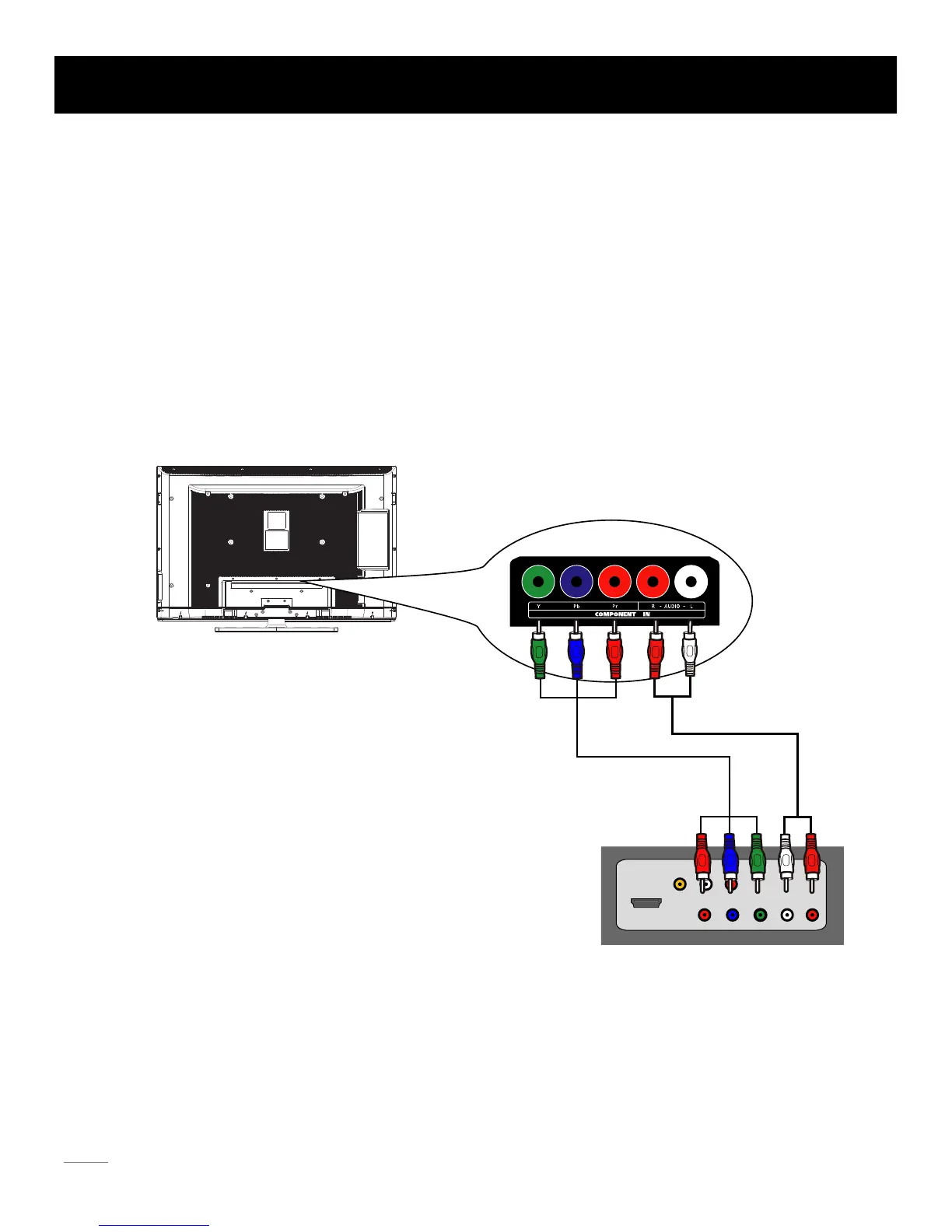

Component Video Connection
The picture below is an example of a connection using the component video jack.
Note: Y/Pb/Pr jacks are component video. This kind of video signal has better display quality.
Audio
L R
Audio
L R
Video
YPbPr
HDMI
The output panel of other device
14
Back Panel Connections
