ANT/CABLE: Connect to receive the signal from your antenna or cable via coaxial cable.
HEAD PHONE:
Connect a 3.5mm headphone for personal audio.
Digital Audio-out:
Connect a coaxial cable for digital audio output.
AUDIO IN L/R, Video In: Connect an AV device that has composite video jacks, such as a VCR or a DVD player. To access
• AUDIO IN L: Left audio channel connection. The left audio connector is usually white. For mono audio sources, be sure to
use the left AUDIO INPUT.
• AUDIO IN R: Right audio channel connection. The right audio connector is usually red.
COMPONENT IN Y/Pb/Pr: Connect a device that has component video jacks, such as a DVD player. To access device
• Y/Pb/Pr (Component Video): They provide good picture quality because the video signal is separated into three
components. Use three video-grade or component video cables for the connection. When using Y/Pb/Pr, make sure you
connect left and right audio cables to the Audio L and Audio R jacks.
HDMI1/DVI, 2, 3, 4: (High-Definition Multimedia Interface) It provides an uncompressed digital connection that carries both video
and audio data by way of an integrated mini-plug cable.
PC INPUT VGA: Connect your computer or other device with a VGA output to this jack using a 15-pin, D-sub cable.
SOUND/DVI: Use to obtain sound when a PC is connected to TV. Use 3.5mm stereo mini-pin cable to connect PC to TV.
AC IN: AC power input.
device connected to these jacks, press the INPUT button on your remote; then press the up/down arrow to select AV.
Press the ENTER button at last to confirm.
connected to the Y/Pb/Pr jack, press the INPUT button on your remote; then press the up/down arrow to select Component.
Press the ENTER button at last to confirm.
AUDIO OUTPUT L/R:
Connect double-channel coaxial cables for analog audio output.
Note:
Digital Audio-out and AUDIO OUTPUT L/R are supposed to be connected to audio power amplifier, which provides
smoother and more powerful sound performance.
4
17

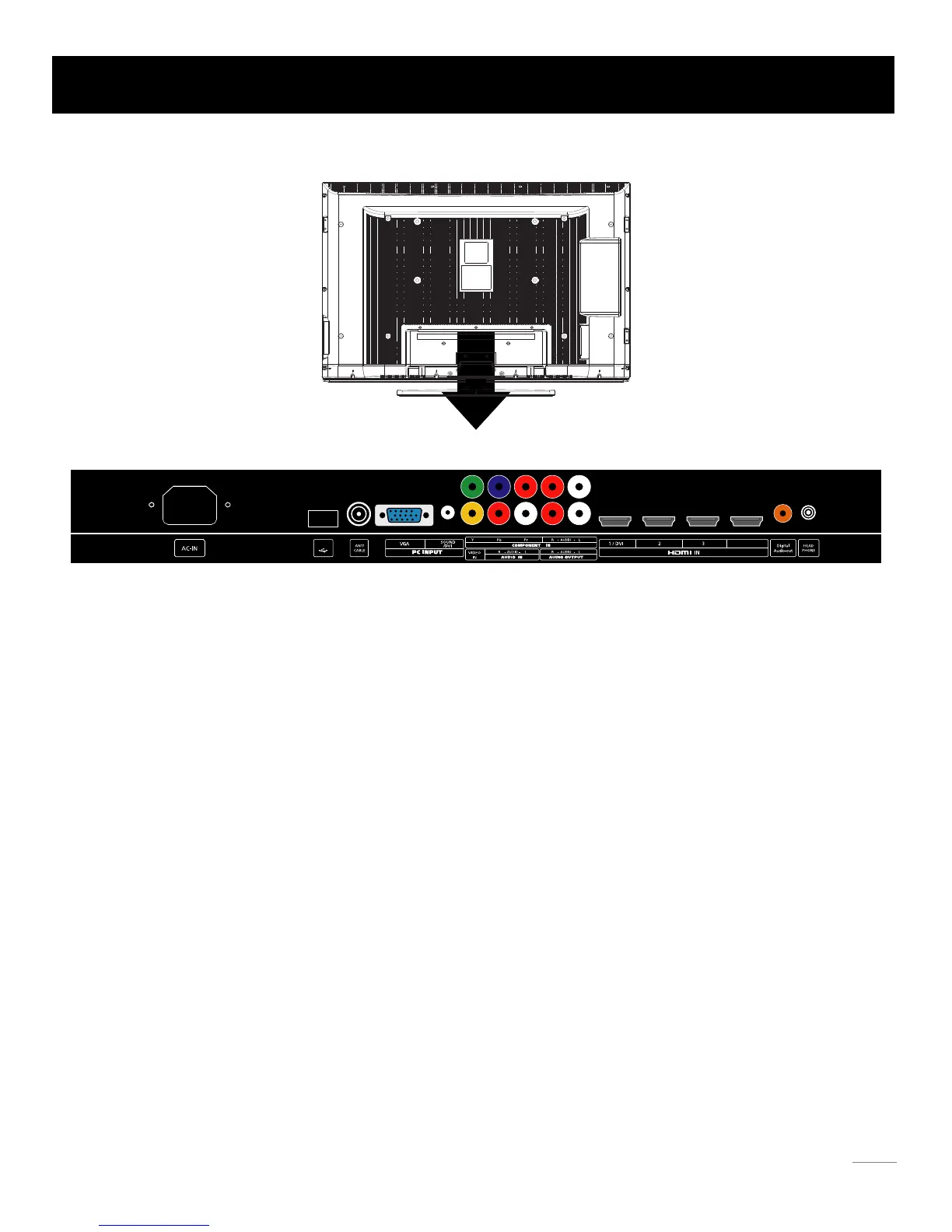

TV Jacks Explanation
USB: Connect your USB storage device to enjoy music/photo files on your TV. (Also used for service purpose)
USB
