5

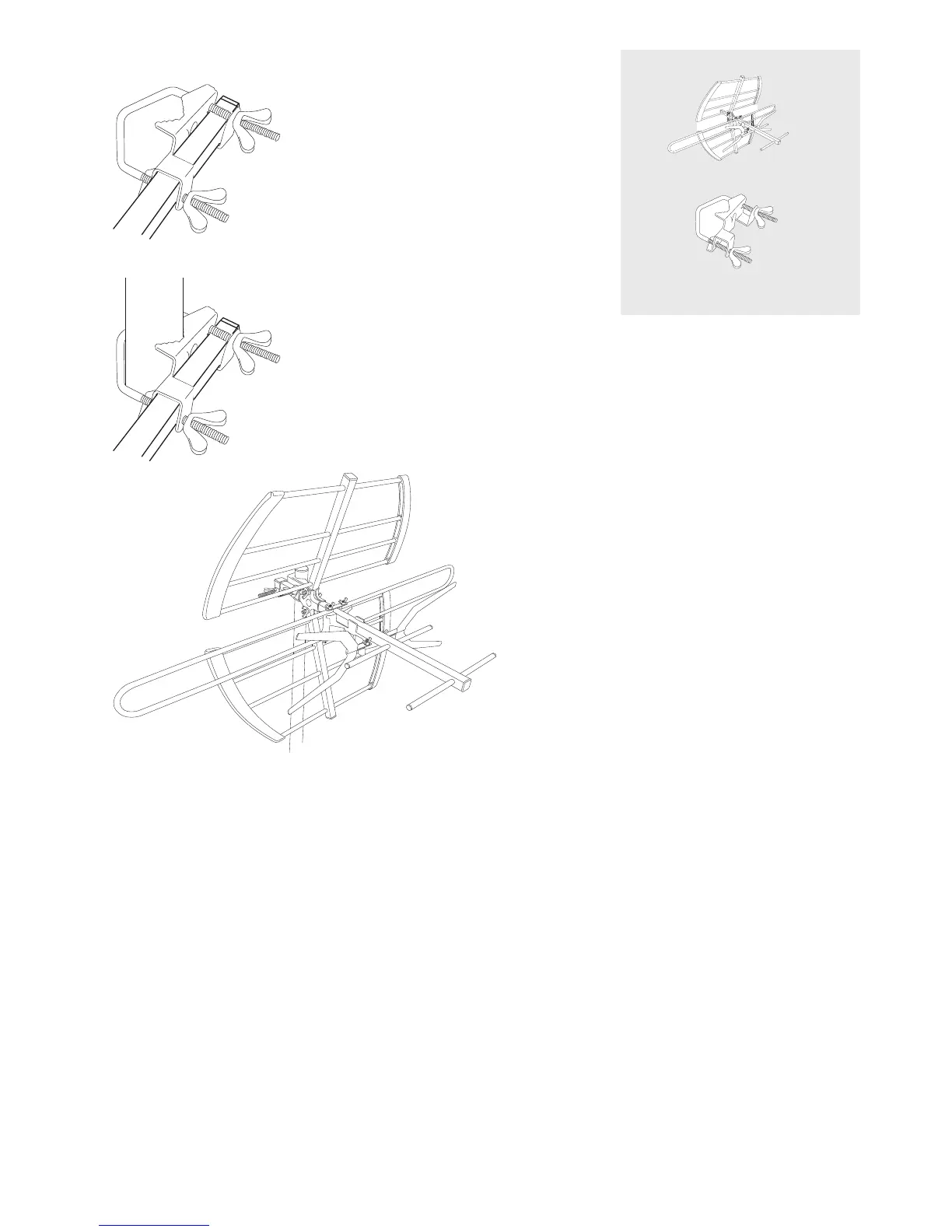

3. Mount the antenna onto the mast.
Pieces used in this step:
(1) Assembled antenna
(1) Mounting bracket
Insert the reector end of the antenna
boom into one side of the mounting
bracket as shown here.
Place the mounting bracket with
antenna onto the J-pole mast.
Screw the two wingnuts on the
mounting bracket down until the
antenna and bracket are securely in
place.
Connecting the antenna to your TV
1. Run a coaxial cable (not included) between then antenna and your TV.
Connect one end of a coaxial cable (not included) to the coaxial jack on the bottom of the assembled
antenna.
IMPORTANT: If you’re installing this antenna outdoors, place the provided weather boot over the end
of the coaxial cable you’re connecting to the antenna. Once you’ve connected the cable to the antenna,
put the weather boot over the connection to protect it from the elements.
2. Connect the other end of the coaxial cable to your TV.
Connect the other end of the coaxial cable to the antenna jack on your TV.
3. Scan for channels on your TV.
See the owner’s manual that came with your TV for detailed instructions.
