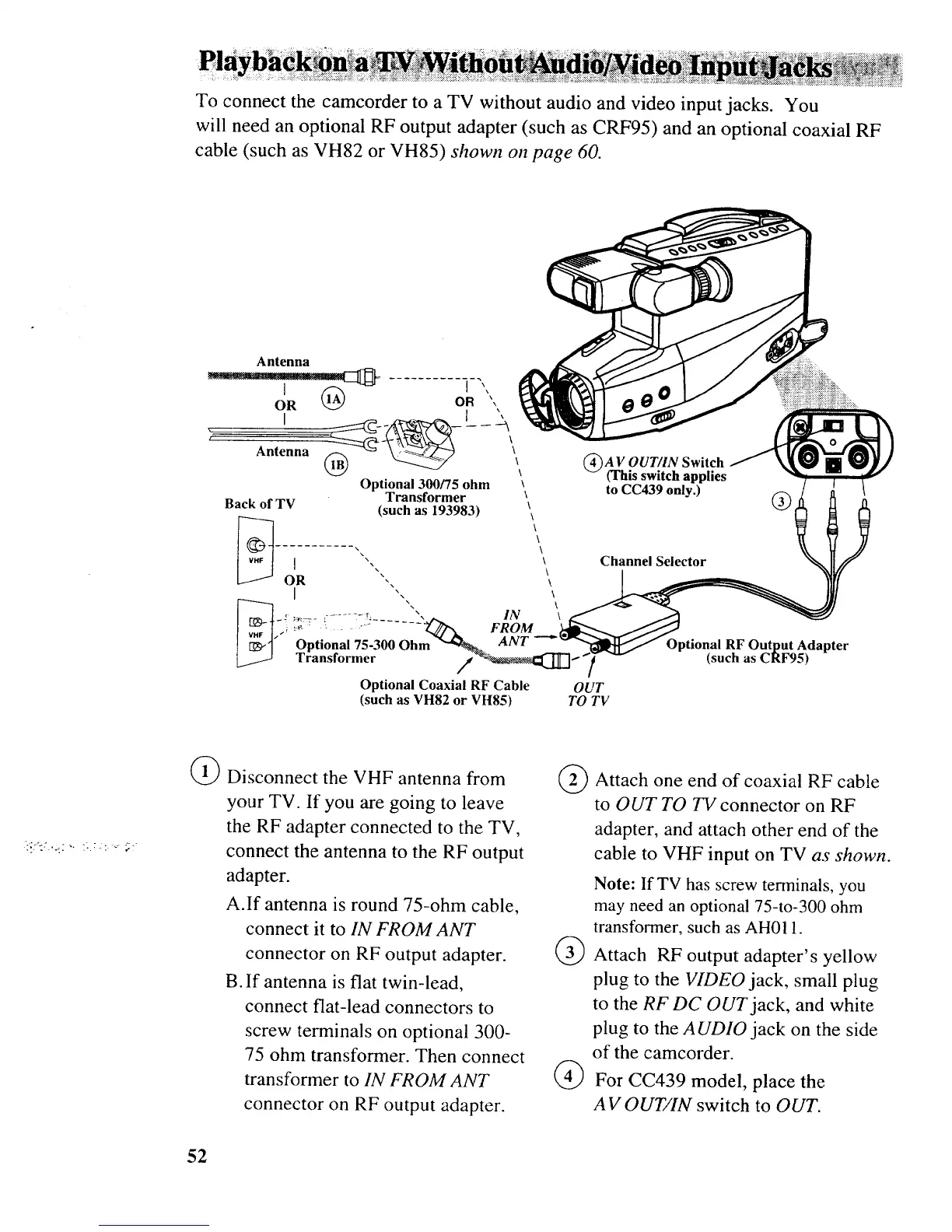

To connectthe camcorderto a TV without audioandvideo inputjacks. You
will needanoptional RFoutput adapter(suchasCRF95) and an optional coaxial RF
cable(such asVH82 or VH85) shown oll page 60.
Antenna
I I",
OR @ OR ',
'
Antenna _\
\
Optional 300/75 ohm \
Transformer \
Back of TV (such as 193983) \
OR ",, \
I ,,.,
Iv_I'" Optional 75-300 Ohm
Transformer
IN
FROM
ANT
Optional Coaxial RF Cable
(such as VH82 or VH85)
\
\
\
\
A V OUT/IN Switch
(This switch applies
to CC439 only.)
®
Channel Selector
!
OUT
TO TV
Optional RF Output Adapter
(such as CRF95)
Disconnect the VHF antenna from
your TV. If you are going to leave
the RF adapter connected to the TV,
connect the antenna to the RF output
adapter.
A.If antenna is round 75-ohm cable,
connect it to IN FROM ANT
connector on RF output adapter.
B. If antenna is flat twin-lead,
connect flat-lead connectors to
screw terminals on optional 300-
75 ohm transformer. Then connect
transformer to IN FROM ANT
connector on RF output adapter.
@
®
@
Attach one end of coaxial RF cable
to OUT TO TV connector on RF
adapter, and attach other end of the
cable to VHF input on TV as shown.
Note: If TV has screw terminals, you
may need an optional 75-to-300 ohm
transformer, such as AH011.
Attach RF output adapter's yellow
plug to the VIDEO jack, small plug
to the RF DC OUT jack, and white
plug to the AUDIO jack on the side
of the camcorder.
For CC439 model, place the
A V OUT/IN switch to OUT.
52
