RCA F38310 User Manual

Setup and Connections
10
Back of the TV

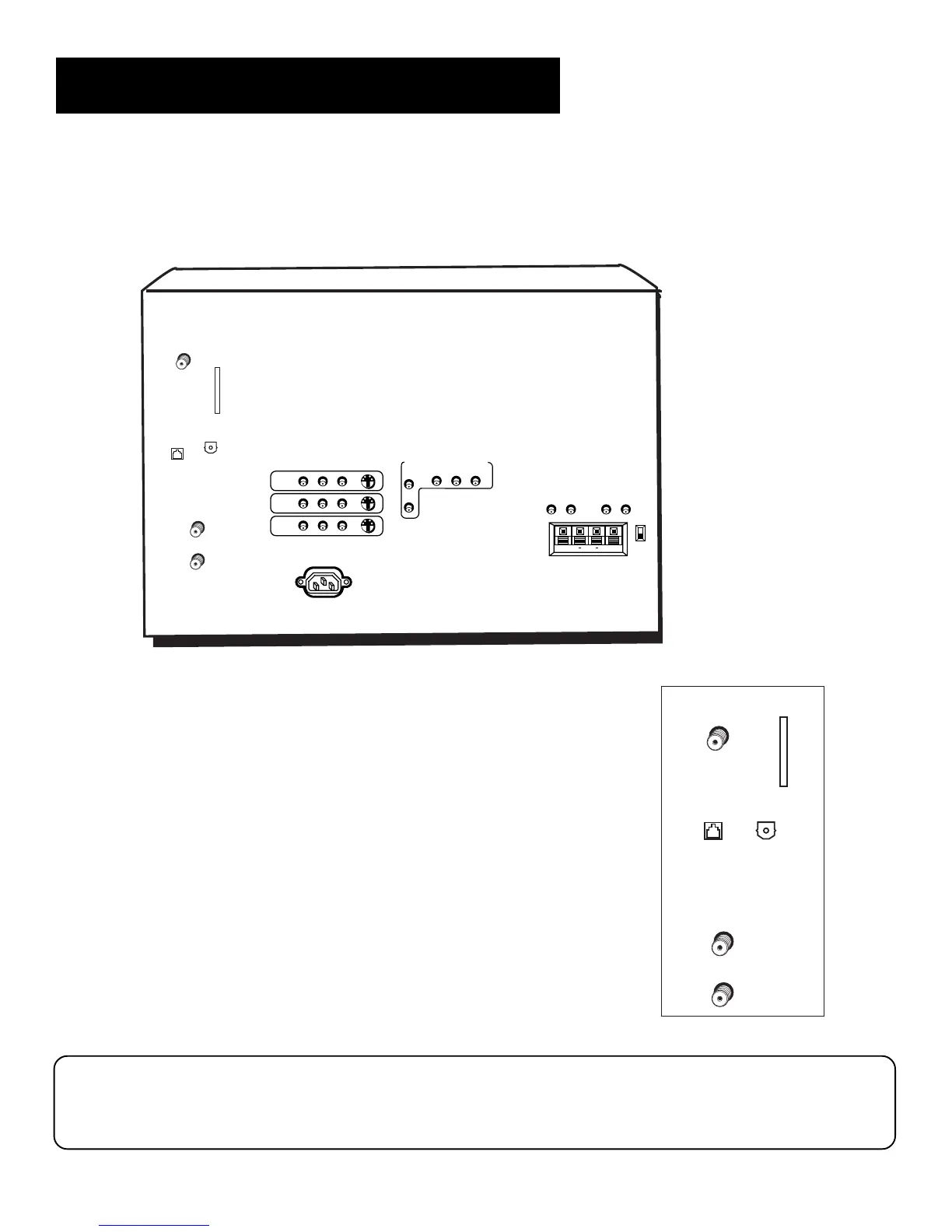

The diagram below describes each of the back panel jacks found on the TV. When connecting A/V cables, be sure to connect
corresponding outputs and inputs (video to video, right audio to right audio, etc.).
SATELLITE IN Use to connect the satellite dish antenna to the TV using
an RG6 cable.
ACCESS CARD Insert the access card into the slot so your program
provider can identify you. Make sure the contacts on the access card are
facing left and the top of the card is facing right while inserting. (Refer
to “New Access Card” in this manual’s “Assistance” section for details.)
The DIRECTV System requires a valid card.
PHONE JACK Use to connect a phone line to the TV. The DIRECTV
System requires a continuous phone line connection to periodically call
out to program providers.
DIGITAL AUDIO OUT Use a digital optical cable (or SPDIF cable) to
connect your TV to a compatible Dolby Digital receiver or decoder. Dolby
Digital offers theatre-quality sound (six audio channels).
ANTENNA B IN Use to connect an off-air or terrestrial antenna or
cable TV signal to the TV.
ANTENNA A IN Use to connect a second off-air or terrestrial antenna
or cable TV signal to the TV.
DIGITAL
AUDIO OUT
ANTENNA A
IN
ANTENNA B
IN
SATELLITE
IN
PHONE
JACK
ACCESS
CARD
You can also use the ANT B IN (or ANT A IN) for video games and switch between the two inputs using the ANTENNA
button on the remote control. When using TV games, computers, and similar products with your TV, keep the contrast at a
low setting. If a fixed (non-moving) pattern is left on the screen for long periods of time at a high contrast setting, the
image can be permanently imprinted onto the picture tubes. These types of imprints are not covered by your warranty
because they are the result of misuse.
POWER
VIDEO
AUDIO
L
R
INPUT1
INPUT2
INPUT3
S-VIDEO
AUDIO
R
L
YP
B P R
AUDIO OUTPUTS
FIXED
VARIABLE
LR L
R
EXT SPEAKERS
EXT
INT
L
R
++
COMPONENT VIDEO INPUT
DIGITAL
AUDIO OUT
ANTENNA A
IN
ANTENNA B
IN
SATELLITE
IN
PHONE
JACK
ACCESS
CARD
