Setup and Connections
14
LEFT RIGHT
TELEVISION
Arrange the speakers in your TV room
to achieve maximum sound quality.

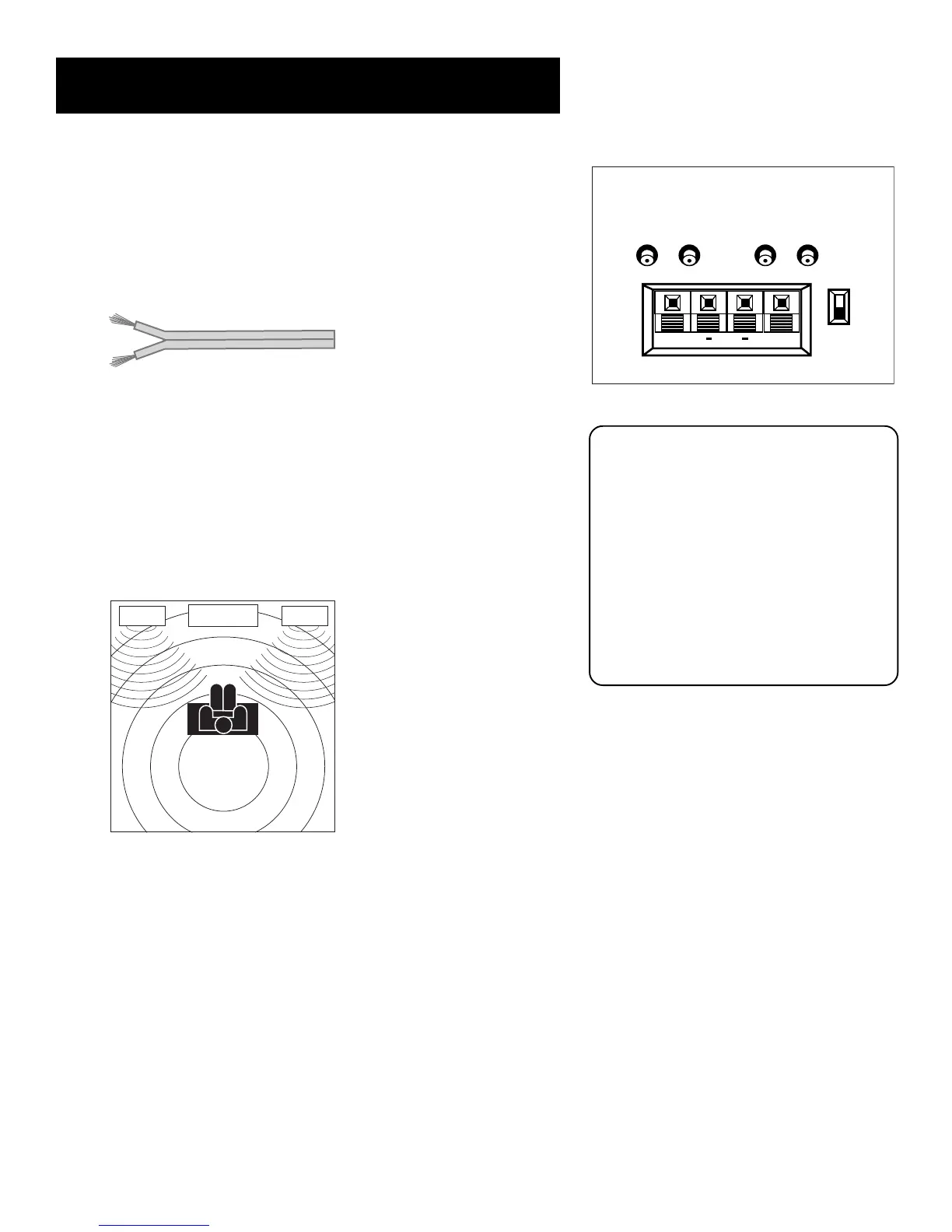

Connecting Speakers to the TV
You can connect up to two additional speakers to the TV: one to the
RIGHT terminal, and one to the LEFT terminal.
1. If necessary, remove the vinyl covering from the ends of the speaker
wire and twist the wire core.
2. Open the lever on the speaker terminal.
3. Insert the wire core into the hole. Be sure to connect the (+) to (+)
and (-) to (-).
4. Close the lever. Pull gently on the wire to see that it’s connected
securely.
To turn on or off the TV’s internal speakers, press MENU on the remote
control and choose Audio. Then choose Speakers from the menu.
Speaker wire
AUDIO OUTPUTS
FIXED
VARIABLE
LR L
R
EXT SPEAKERS
EXT
INT
L
R
++
When connecting the speaker wire, make
sure you connect the positive (+) terminal
on the TV to the positive (+) terminal on
the speaker. One side of the speaker wire
is usually marked with a white stripe to
help you match the terminals correctly. If
the (+) and
(-) terminals are not matched properly, the
speakers will not be “in phase,” causing
reduction in bass frequencies.
Do not allow the wire core to touch other
wires or terminals. Damage to components
could result if the cores of two wires
touch.
