RCA J22CE820 User Manual

22
Chapter 1: Connections and Setup

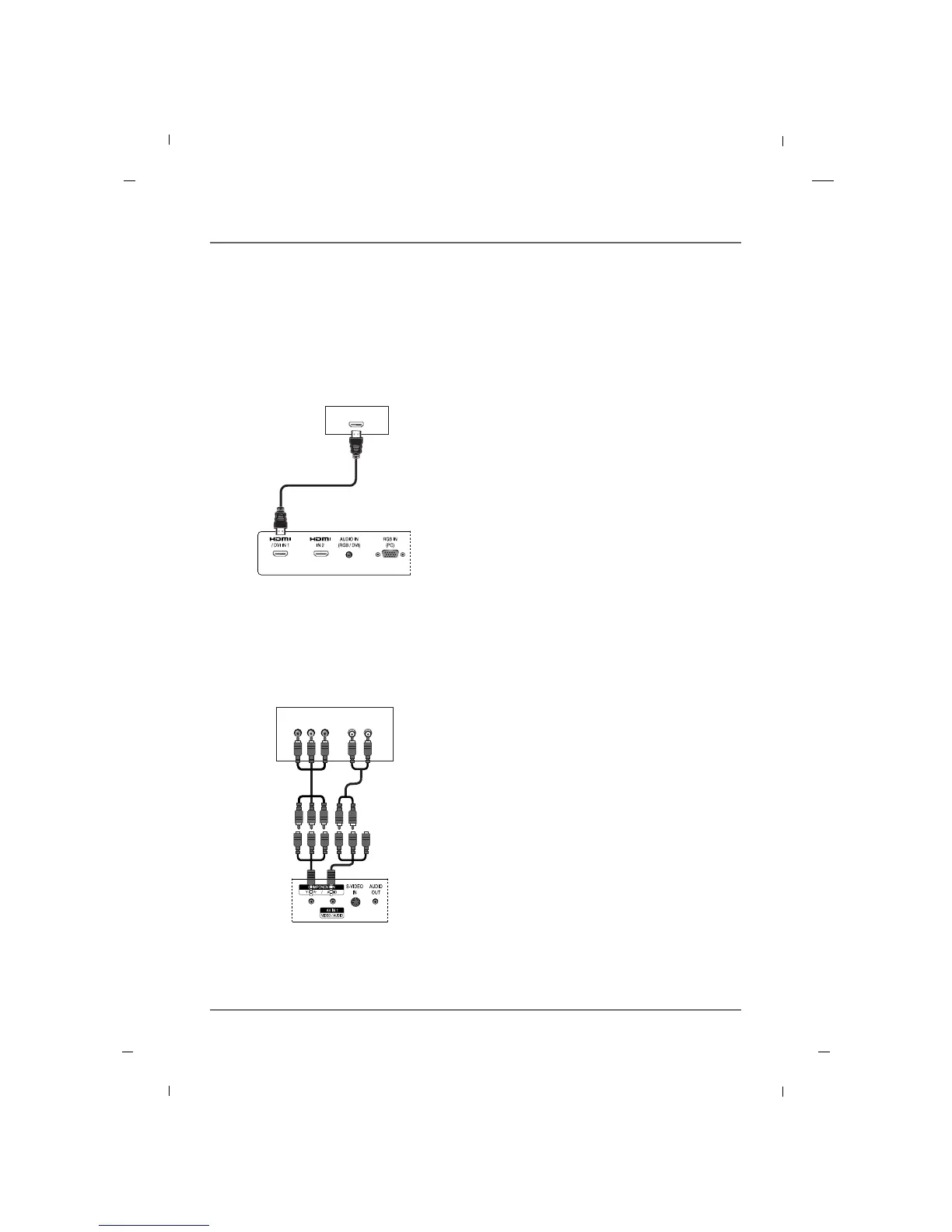

AA When connecting with a Component cable
(L) AUDIO (R)
Y
Pb Pr
1. Connect the video outputs (Y, PB, PR) of the DVD
to the COMPONENT VIDEO(Y/Pb/Pr) jacks on the
set.
2. Connect the audio outputs of the DVD to the
COMPONENT AUDIO jacks on the set.
3. Turn on the DVD player, insert a DVD.
4. Select YPbPr source using the INPUT button on
the remote control.
5. Refer to the DVD player's manual for operating
instructions.
DVD
Rear panel of the set
DVD Connection
AA When connecting with a HDMI cable
HDMI-DVD OUTPUT
1. Connect the HDMI output of the DVD to the
HDMI/DVI IN 1 or HDMI IN 2 jack on the set.
2. Select HDMI1 or HDMI2 input source using the
INPUT button on the remote control.
3. Refer to the DVD player's manual for operating
instructions.
DVD
Rear panel of the set
