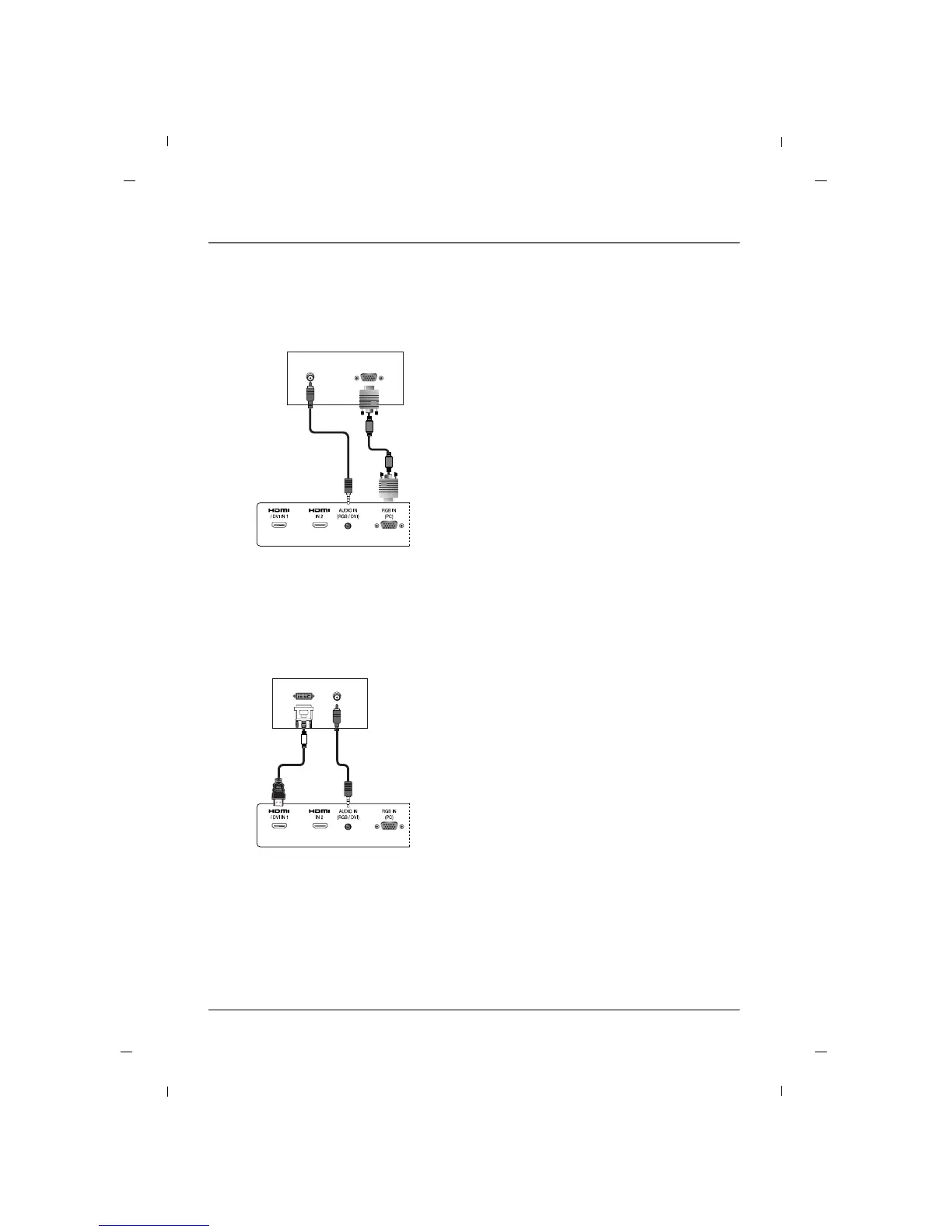

Chapter 1: Connections and Setup
Chapter 1
AA When connecting with a D-Sub 15 pin cable
AUDIO OUT PC OUTPUT
1. Connect the RGB output of the PC to the RGB IN
(PC) jack on the set.
2. Connect the PC Audio Output to the AUDIO IN
(RGB/DVI) jack on the TV using a male-to-male
3.5mm mini jack.
3. Turn on both the PC and TV.
4. Select the VGA input source on your TV by press-
ing either the INPUT buttons on the remote con-
trol.
PC
Rear panel of the set
PC Connection
AA When connecting with a HDMI to DVI cable
DVI OUTPUT
AUDIO OUT
1. Connect the DVI Output on the PC to the
HDMI / DVI IN 1 Input jack on the TV.
2. Connect the PC Audio Output to the AUDIO IN
(RGB/DVI) jack on the TV using a male-to-male
3.5mm mini jack.
3. Turn on both the PC and TV.
4. Select the HDMI1 input source on your TV by
pressing either the INPUT buttons on the remote
control.
PC
Rear panel of the set
