Recording from VCR or TV Monitor
DC IN
6V
T
W
INST.
ZOOM
FOCUS
DATE/TITLE
DISPLAY
PLAY
F.F.
EDIT
SEARCH
STOP
REW
F
N
AUDIO
OUT
VIDEO
OUT

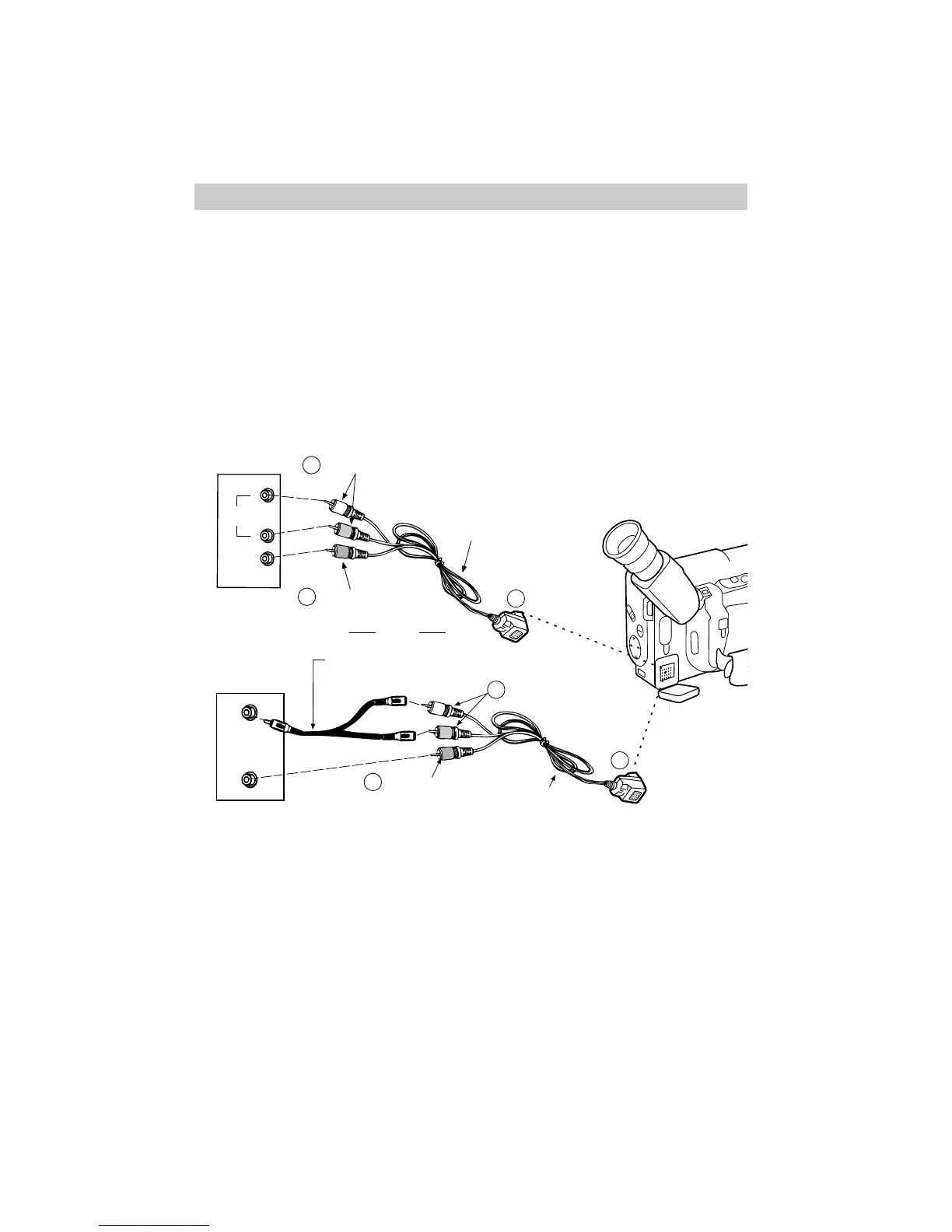

Back of
Mono VCR
White and Red Audio Plugs
Yellow Video Plug
Optional VAA008
Audio/Video
Input Cable
AUDIO
OUT
VIDEO
OUT
L
R
Yellow Video Plug
White and Red
Audio Plugs
Y-Adapter
(Such as AH25)
Optional VAA008
Audio/Video
Input Cable
or
Back of
Stereo VCR
1
1
2
2
3
3
Audio/Video
Connector
(Behind Small
Cover)
To connect your camcorder to a TV (or VCR) with AUDIO and VIDEO OUT jacks, you
will need an optional VAA008 audio/video input cable shown on page 63. If your TV
is already connected to a VCR, you can attach the camcorder to the VCR and watch
what the camcorder is recording on the TV.
Note: To monitor what the camcorder is recording when using the input cable, plug the
supplied audio/video output cable into the back of the audio/video input cable. Make sure
to connect the yellow video plug of the output cable to the VIDEO IN jack of the TV.
Details are on pages 56-57.
