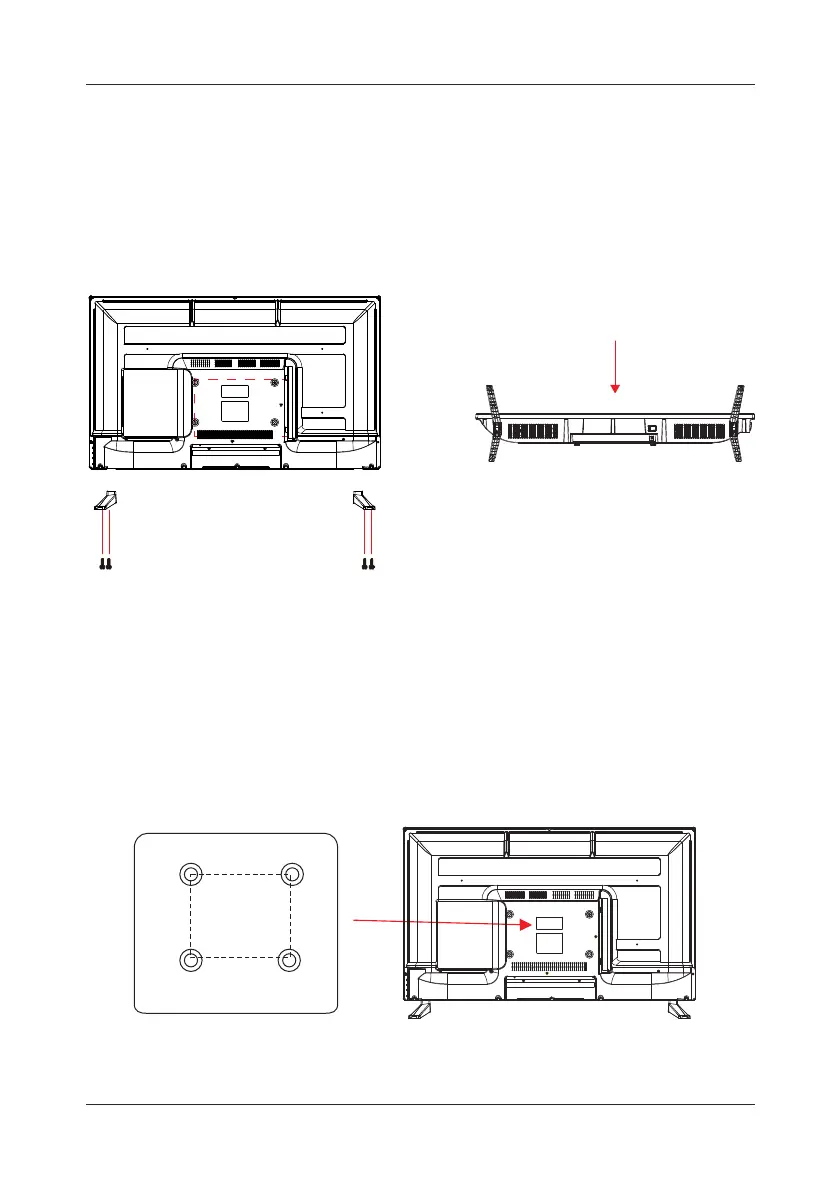

TV Base Stand assemble
Mounting on the wall
This unit is VESA-complian,and is designed to be wall-mounted with a
VESA-compliant 7.87"x 3.94"(200mmx100mm)mounting kit designde for flat-panel
TVs(not supplied).Mount this unit according to the instructions included in the monting
kit. Length of screw should not exceed 10 mm.
NOTE
Remove the base stand before mounting the unit on the wall.
Four mounting holes
(size M6 screw)
200mm
100mm
Panel side
Screws(2）
Screws(2)
4*15BBH 4*15BBH
7
1.Match the TV unit into the stand, then hold the TV stand ,revolve and lock the tv unit
tightly as the arrowhead point.
2. Fix the screws into the TV stand after installing the tv unit and tv stand.
L R
