Connect AV
Follow below picture to connect AV cable and device.
1. Turn off the unit before connect AV cable.
2. Use AV cable to connect follow below figure
3. After connect, press the button to turn on unit and power indicator will
light white.
4.
Press the direction button to select the AV mode in home menu and the video on
the AV device will be displayed on the projector screen.
5. Press the button twice to turn off unit power.
LEFT CHANNEL
RIGHT CHANNEL
VIDEO CABLE
VIDEO PLAYER
VIDEO CABLE : YELLOW
AUDIO LEFT CHANNEL : WHITE
AUDIO RIGHT CHANNEL : RED
CABLE NOT INCLUDE
HDMI CABLE
CABLE NOT INCLUDE
In rare cases, if the projector’s speaker has
no sound when playing a DVD movie in a
player connecting to the HDMI input, please
check the player’s digital audio settings and
make sure it is set to “Auto” mode or “PCM”
mode.
HDMI HD signal input : this interface can be input with HD player

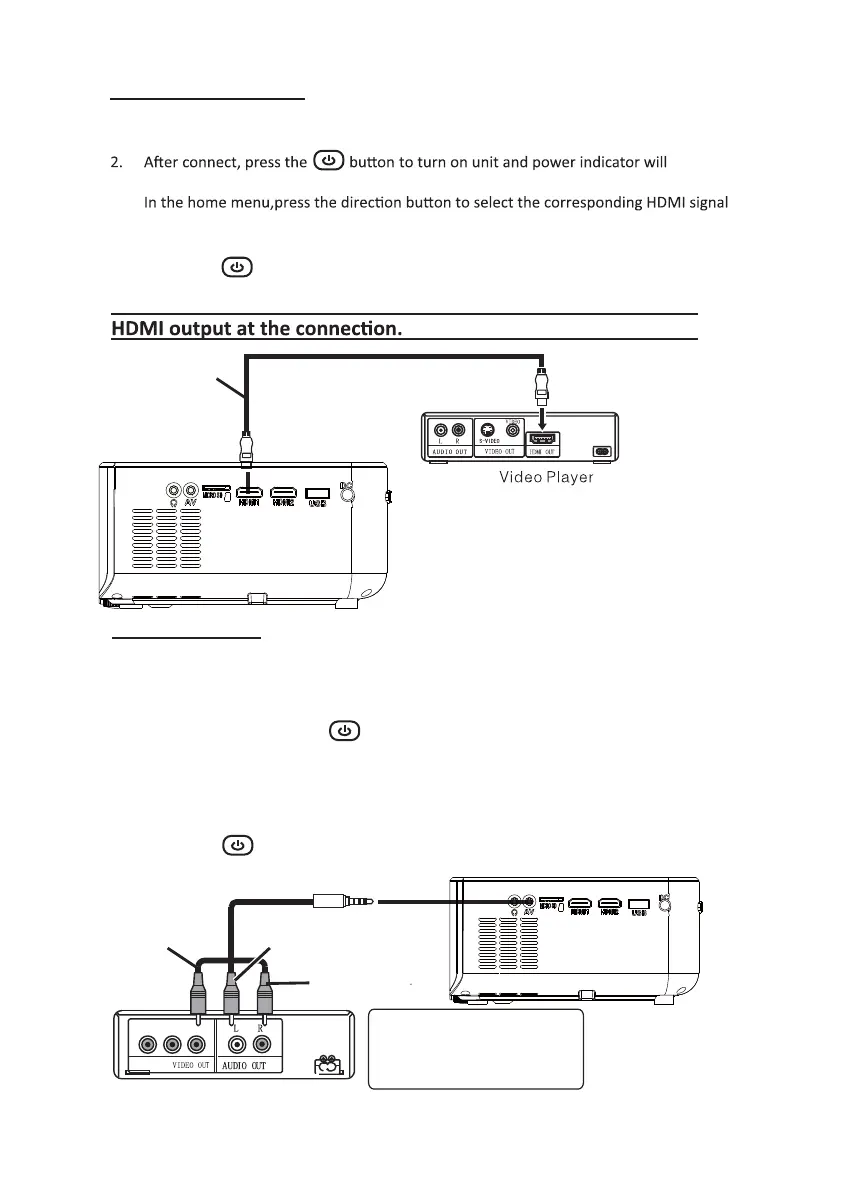

Connect HDMI
Follow below picture to connect HDMI cable and device.
1. Turn off the unit before connect HDMI cable.
light white.
3.
interface and in the HDMI mode the video of the HDMI device will be displayed on the
projector screen.
4. Press the button twice to turn off unit power.
