EN
Getting Started
3
Unpacking the system:
You should have the following:
• one main unit (with 2 main speakers);
• one remote control;
• one AM loop antenna;
• T-Type FM antenna wire;
• one user’s guide;
• one safety leaflet.
• Owner and registration Card
• MusicMatch CD Rom

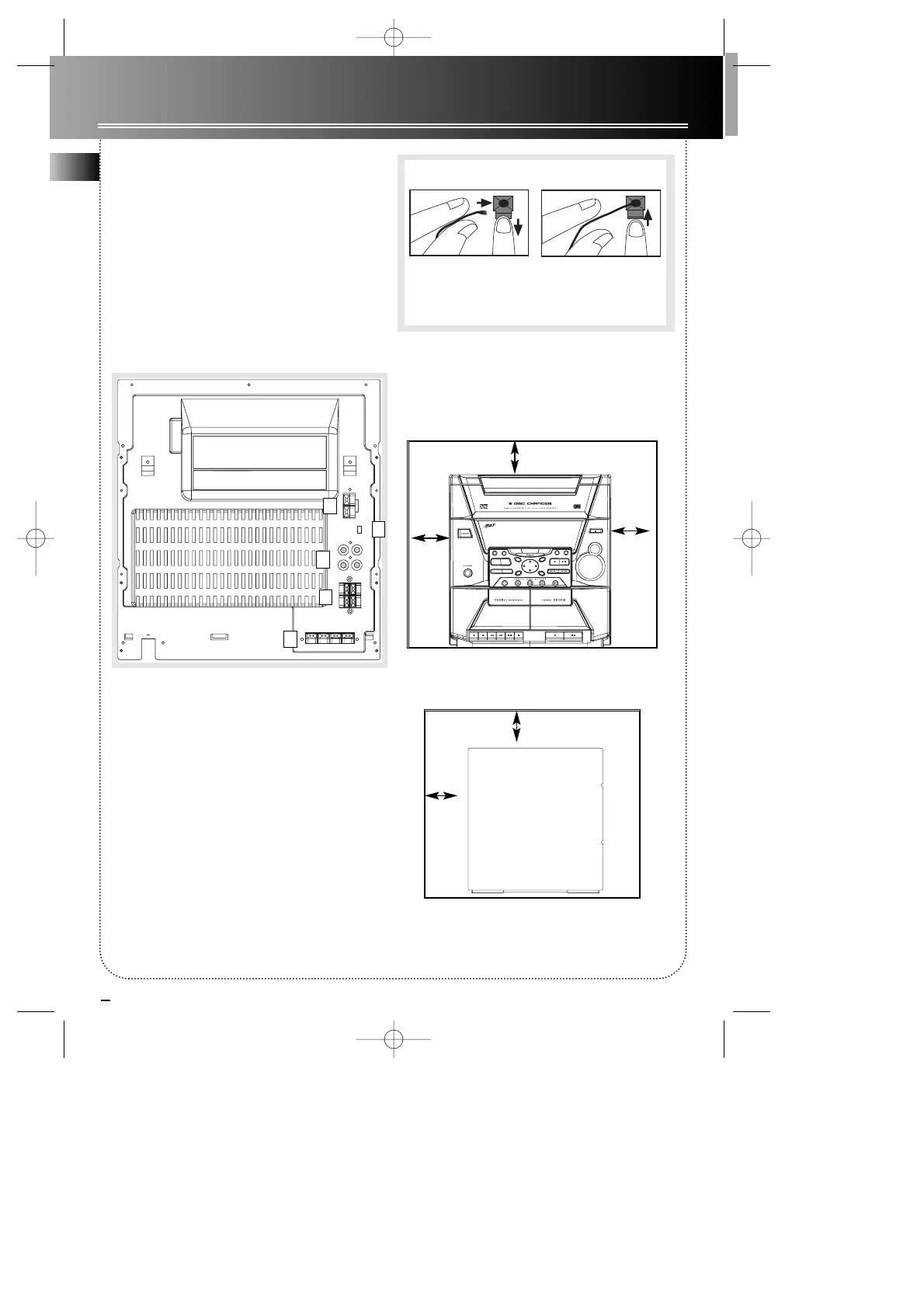

Back View
1. FM Antenna Jacks
2. AM Loop Antenna Connector
3. Auxiliary Connector
4. Surround Speaker Jacks
5. Main Speaker Jacks
Installation
To ensure sufficient ventilation, keep the spacings
shown below free from other surfaces:
MAIN SPEAKERS 6‰
+ R - - L +
AM LOOP
_ _
+
+
R
L
SURROUND SPEAKERS
8
‰
R L
R L
FM 75‰
OUT IN
AUX
Release tab to lock wire in
the terminal.
NOTE: Make sure the insulation
is completely removed from the
ends of the Antenna and
speaker wires at all connection
points.
Antenna and Speaker
Wire Connection
Push terminal tab down to
insert wire.
DIMMER
/ DEMO
TIMER
STANDBY
SOURCE
REPEAT BAND
AUTO PROG.
DISC SKIP
DIGITAL AUDIO SYSTEM
CLOCK PRO G/ SE T
TUNE/PRESET
OPEN/CLOSE
ROCK
/CLASSIC
CUSTOM/FLAT POP/JAZZ
CD DISP
/FM ST
BOOKMARK
FILE
SEARCH
PLAYLIST
O.K.
DIGITAL MULTIFUNCTION DISPLAY
T
H
U
M
B
D
O
W
N
T
H
U
M
B
U
P
BASS
BOOST
D
O
W
N
U
P
VOLUME
4 inches
4 inches
Front View
4 inches
4 inches
2 inches
Side View
1
2
3
4
5
RS2605 EN 6/13/02 9:30 AM Page 6
