RCA RTD255 User Manual

Getting Started
EN
5
Getting Started

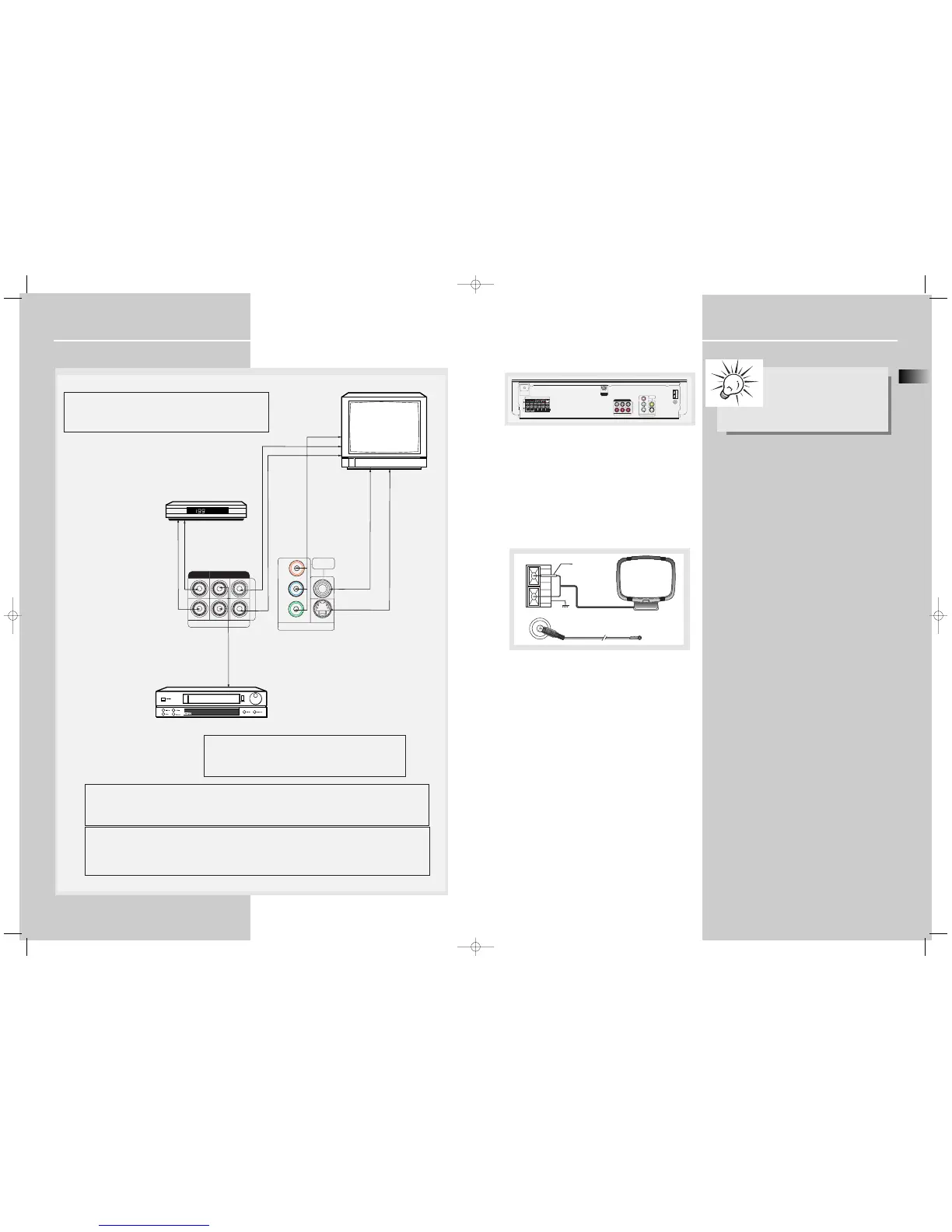

Connecting to Audio-Visual Components
4
TV
TO AUDIO OUT (TV)
SAT
TO AUDIO OUT (VCR)
TO AUDIO OUT (SAT)
VCR
S-video
S-video provides a better connection for the video portion of the
signal than composite video (yellow color terminal). When
connecting S-video cable, a Composite video cable (yellow RCA
connector) must also be used.
Analog input
If you have no VCR, TV or SAT, you can connect any other
compatible components like TAPE player to your DVD receiver via
the VCR/SAT input.
VIDEO IN (TV)
S-VIDEO IN (TV)
COMPONENT IN (TV)
Component video output
Component video terminal provides the best connection for video. By separating the color information (Pb/Pr) and the
luminance signal (Y), the image is improved comparing with S-video or composite video connection (result may vary on
different TV / monitor). If your TV is equipped with these terminals (e.g. Y/Pb/Pr, Y/Cb/Cr, Y/B-Y/R-Y), use an
appropriate video cable (75 Ohm) and connect to the system. Make sure to match the terminal color.
Progressive Scan
- It is necessary to use component video connection to enjoy progressive scan.
- Connect to a TV that has 480P input terminal or compatible with copy guard system, else the image will not be
displayed properly.
- If progressive scan is ON, there will be no video signal output at s-video and composite video monitor output. (Please
refer to page 20 for details of activating progressive scan function)
(If available)
L
R
AUDIO IN
COMPONENT
VIDEO OUT
Cr
Cb
Y
S-VIDEO
MONITOR
OUT
SAT
VCR TV
Connecting the Antennas
The AM and FM antennas connect to the AM and FM ter-
minals on the system’s back panel.
They must be hooked up in order to have clear reception.
AM Loop Antenna and FM Indoor Antenna
1. Uncoil the AM antenna wire.
2. Press down the antenna tab to open the terminal.
Note:
Make sure the white wire of the AM loop antenna is insert-
ed into the left terminal.
L
R
3Ω
FR FLSR SLCENSUB
6Ω
SPEAKERS
AC ~ 120V
60Hz
FM 75Ω
GND
AM LOOP
SUBWOOFER
PRE OUT
AUDIO IN
COMPONENT
VIDEO OUT
Cr
Cb
Y
S-VIDEO
MONITOR
OUT
SAT
VCR TV
AM LOOP
FM 75
Ω
White
GND
Tip:
• For FM reception, extend antenna to its
full length and arrange the antenna at dif-
ferent parts of the room until the recep-
tion is optimized.
• For AM reception, rotate the antenna horizontally to
get better reception.
RTD255-EN receiver 5/17/04 9:16 AM Page 8
