RCA VR354 - Back Panel

53
References
REC INDICATOR Lights when the VCR is recording.
TIMER INDICATOR ( ) Lights during an express or timer recording or when the
VCR is set for a timer recording and the VCR is turned off. Flashes when the clock is
not set. “TIMER” Flashes when the timer recording is set and there is no tape
in the VCR.
VCR INDICATOR (Applies only if the VCR Viewing Channel is
3 or 4.) Press the TV•VCR button on the remote or front VCR panel to turn on or off.
• VCR Indicator on: Picture from VCR
• VCR Indicator off: Picture from the TV channel.

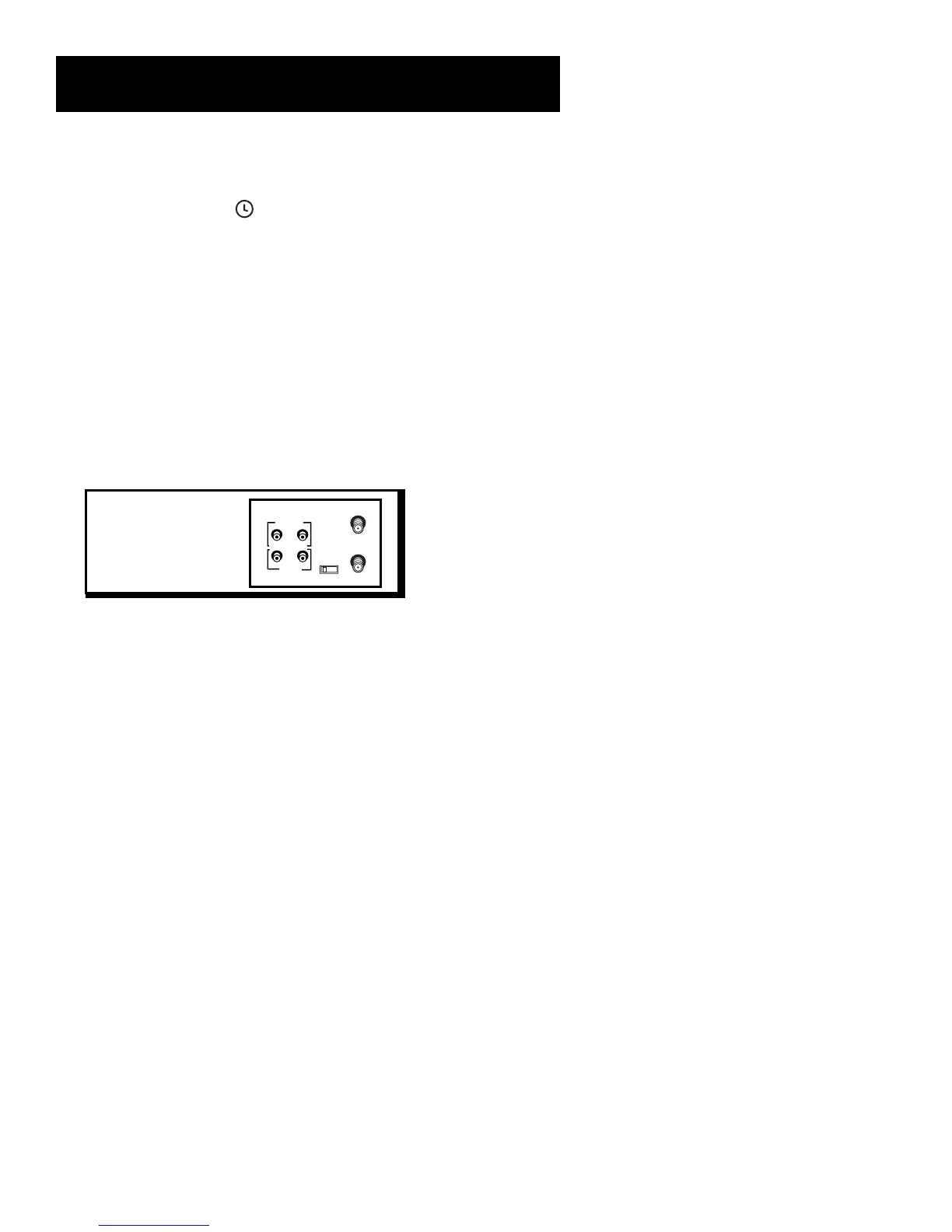

Back Panel
CH
VIDEO
AUDIO
ANT. IN
RF OUT
OUT
IN
3
4
CH. 3/4 Switch Selects the channel to which you will tune the TV to see the VCR
picture if you connect the VCR using one of the basic hookups.
AUDIO and VIDEO IN Jacks Receives signals from another component, like a VCR
or camcorder, when it is connected to these jacks. Use INPUT on the remote to select
“L” to record
from these jacks. For more information about the VIDEO INPUT, see “How to Find
the TV’s Video INPUT Channel” on the next page.
AUDIO and VIDEO OUT Jacks Sends signals from VCR to another component, like
a TV or VCR, when it is connected to these jacks.
ANT IN Jack Receives a signal from an antenna or cable system when attached.
RF OUT Jack Passes signal to TV using the cable supplied.
