ENGLISH

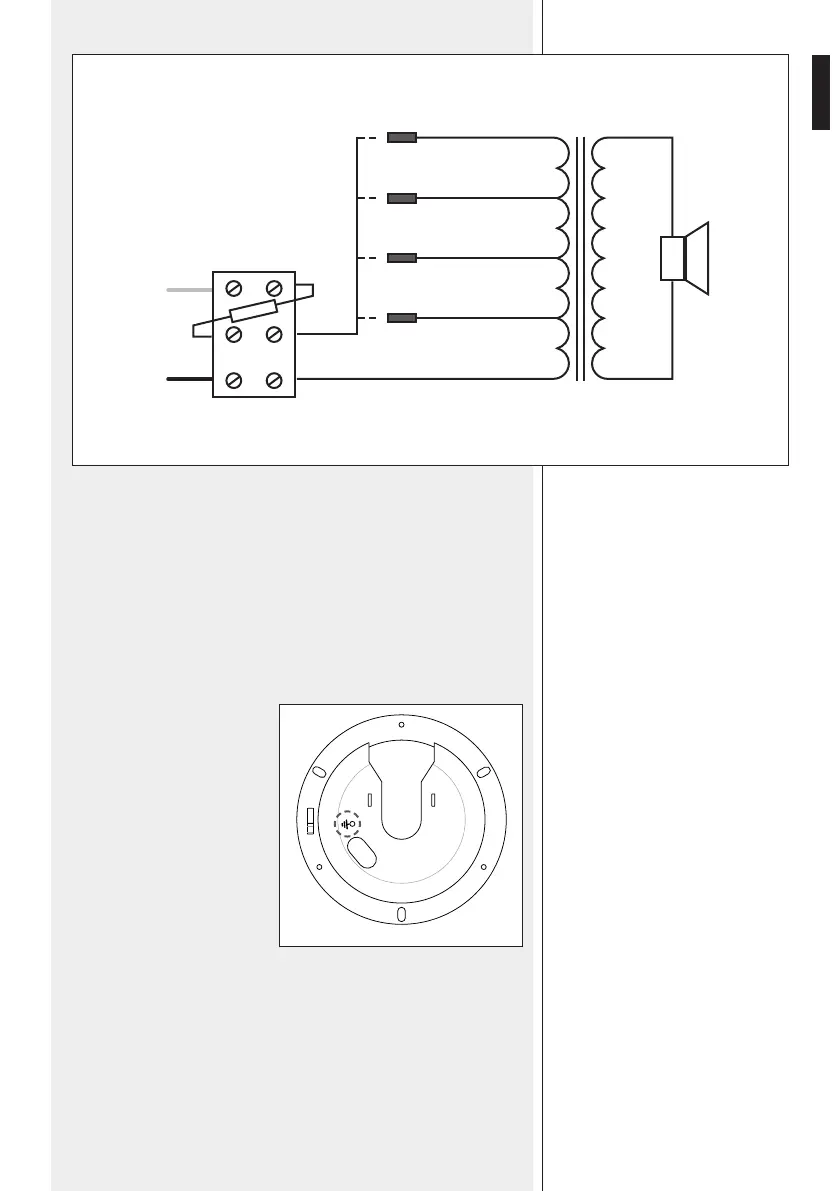

2. Insert the connecting cable either behind (if installed into the ceiling)
and through the mounting plate or through a hole on its cover (if external).
3. After placing the ceramic terminal strip outside the mounting plate
(see the next manual section ‘Installation’), connect the positive wire
of the 100 (/ 70 V) line to the loudspeaker + input.
4. Connect the negative wire of the 100 (/ 70 V) line to the loudspeaker
0 input.
5. Connect the earth wire to the
screw of the mounting plate and
the loudspeaker green wire.
CERAMIC
SCREW TERMINAL
100 V
+
0
IN
WHITE (2.5 W)
YELLOW (5 W)
BLUE (10 W)
8Ω
RED (20 W)
BLACK (COM)
