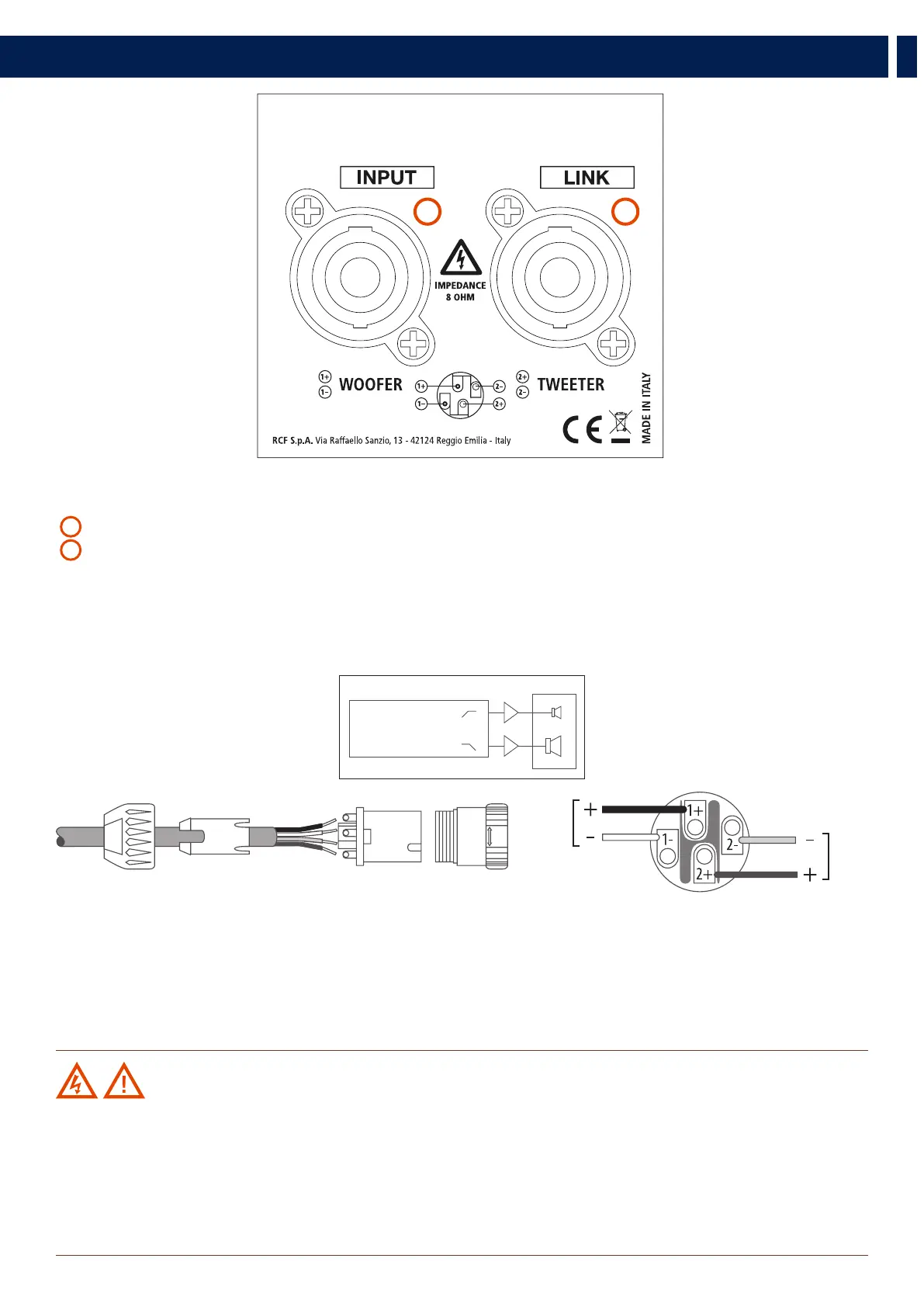

THE REAR PANEL
The rear panel displays 2 sockets, both for ‘Neutrik Speakon NL4’ (4-pole) plugs:
1
The INPUT socket receives the signal from the amplifier
2
The LINK socket can be used to link another speaker
‘BI-AMP’ MODE
The speaker must be powered by two amplifiers (one for the low frequency, one for the high frequency) and an external crossover is required.
Check in the specification table the impedance of both ways, their power and the suggested crossover frequency.
LOW
HIGH
AMP.
CROSSOVER
AMP.
CONNECTIONS
- Low frequency amplifier + output to the pin 1+ of the SPEAKON connector
- Low frequency amplifier - output to the pin 1- of the SPEAKON connector
- High frequency amplifier + output to the pin 2+ of the SPEAKON connector
- High frequency amplifier - output to the pin 2- of the SPEAKON connector
WARNING! CAUTION! Loudspeaker connections should be only made by qualified and experienced personnel
having the technical know-how or enough specific instructions (to ensure that connections are made correctly) in order to
prevent any electrical danger.
To prevent any risk of electric shock, do not connect loudspeakers when the amplifier is switched on.
Before turning the system on, check all connections and make sure there are no accidental short circuits.
The entire sound system shall be designed and installed in compliance with the current local laws and regulations regarding
electrical systems.
3. CONNECTIONS
21
