6. VERTICAL HANGING WITH A 10° ANGLE
Using the C-BR 10° it is possible to reduce the opening angle from 22.5° to 10°.
PACKAGE CONTENT:
- 2 X C-BR 10° BRACKETS

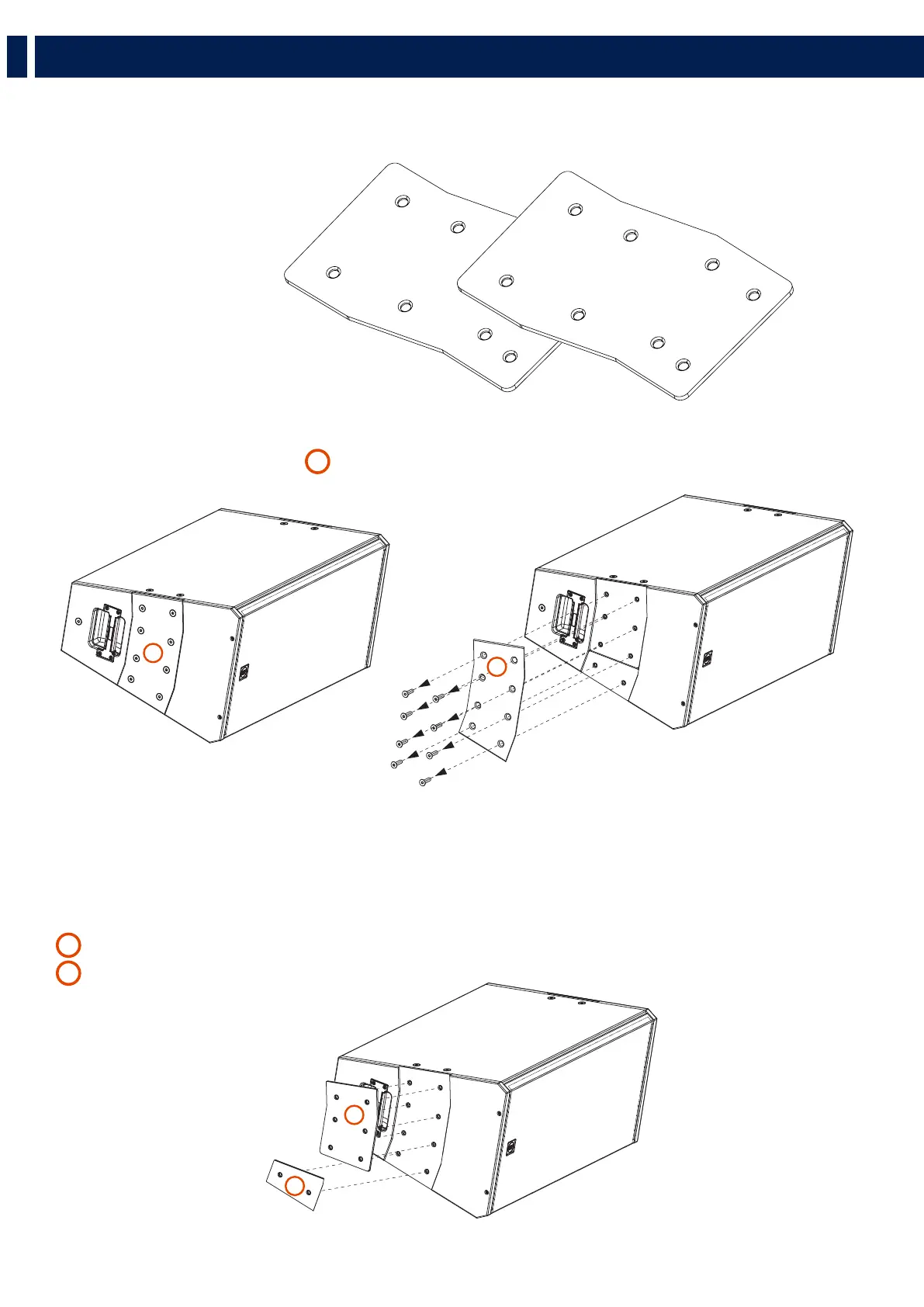

1. Unscrew the 8 screws from the Top Plate
A
and remove it.
2. Remove the two plates located under the top one:
B
a Link Plate (with 6 holes)
C
an External Plate (with 2 holes)
A
A
B
C
